Mitsubishi – Mr. Slim SVZ Series Multi-Position Air Handler Heat Pump System | R-454B | Toronto & GTA Installation Included
The Mitsubishi Mr. Slim SVZ Series Multi-Position Air Handler is a complete whole-home ducted heat pump system — delivering heating and cooling through your existing or new forced-air ductwork just like a conventional furnace fan coil, powered by the efficiency of a Mitsubishi inverter heat pump. The SVZ installs in your mechanical room in upflow, downflow, or horizontal orientation and connects to your full duct network. Available in Standard and Hyper Heat versions from 12,000 to 60,000 BTU. All prices include standard professional installation with up to 20 ft of lineset. A controller is required and is not included. Only one SVZ unit can be connected per outdoor unit.
- Maximum one SVZ unit per outdoor unit. The SVZ cannot be combined with other indoor units on the same system.
- A controller is required and not included — see Optional Controls below.
- 60K BTU is available in Standard only — no Hyper Heat version exists at this capacity.

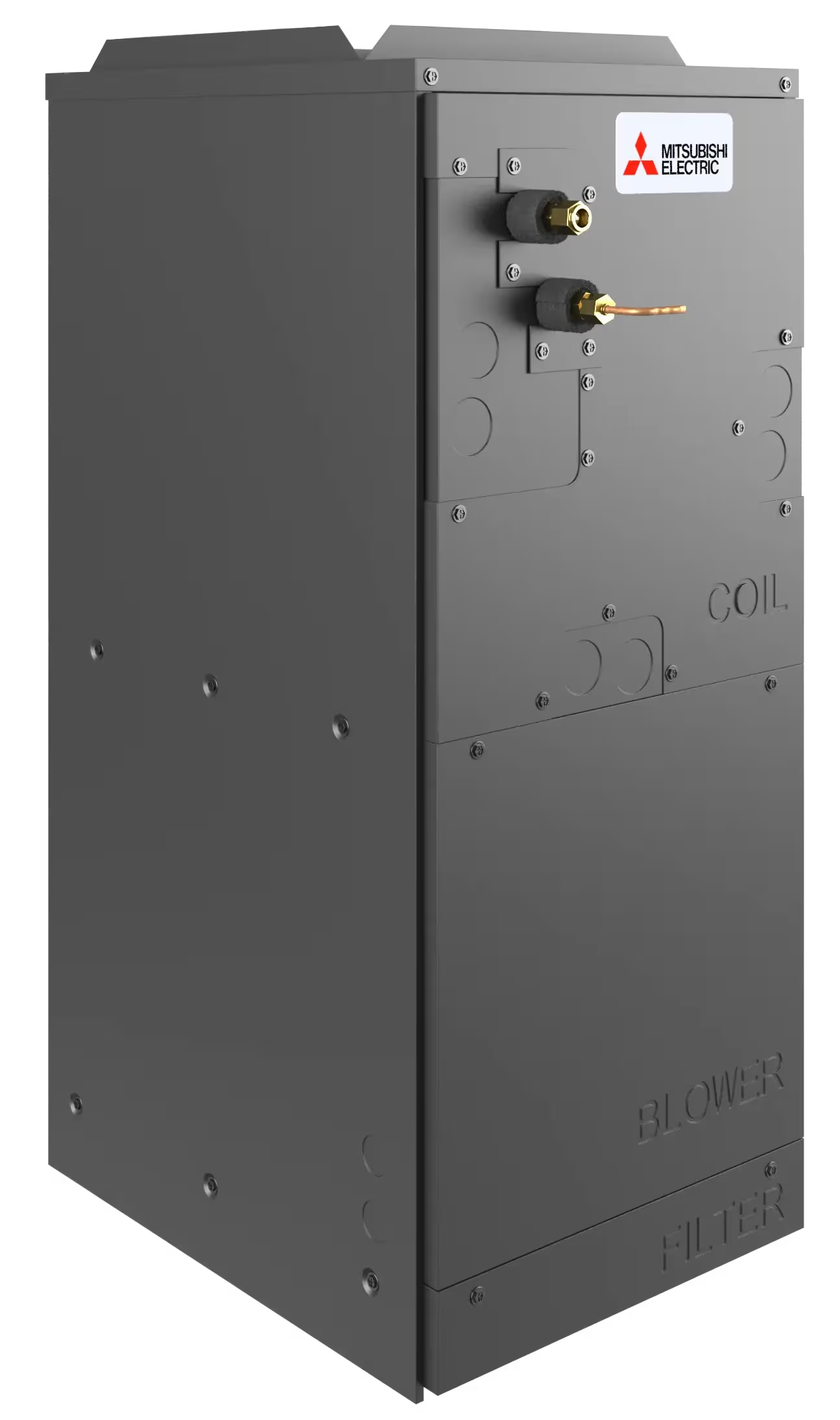

- ✓Mitsubishi SVZ-AP Series multi-position air handler indoor unit

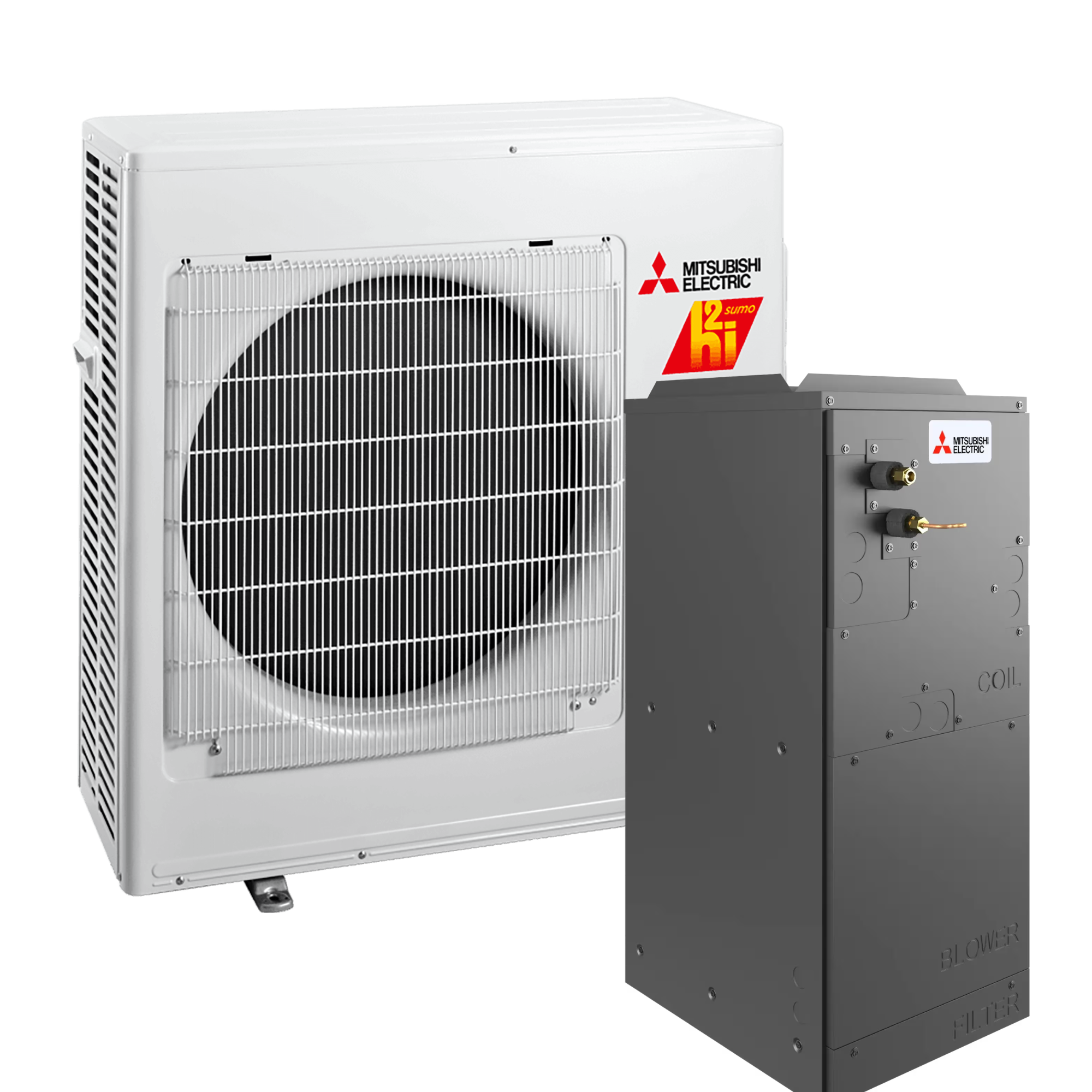

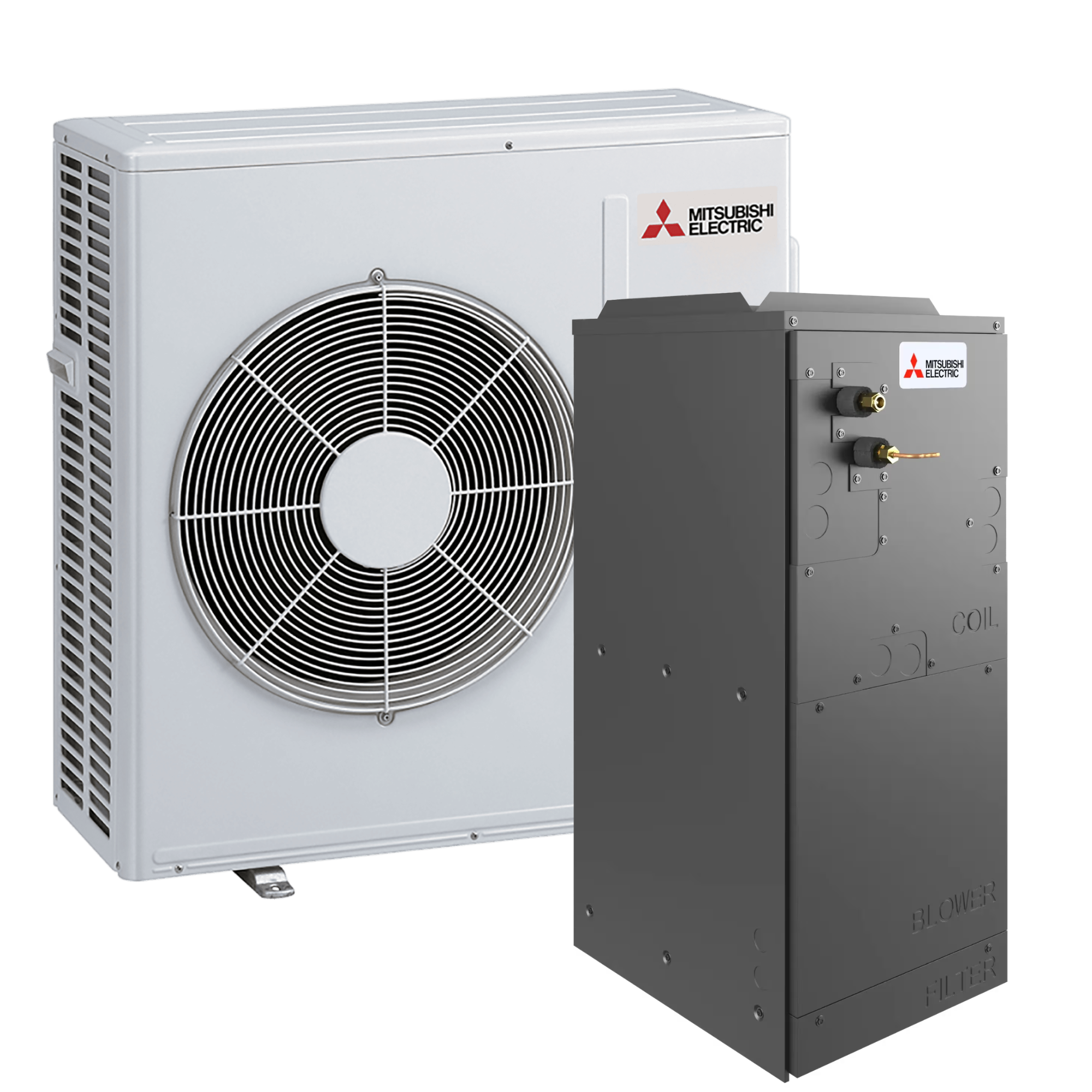

- ✓Mitsubishi SUZ-CA / SUZ-CK (Standard) or SUZ-AA / SUZ-AK (Hyper Heat) outdoor unit — as selected
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Duct connection to supply and return plenum — duct fabrication quoted separately if required
- ✓System startup, testing, and commissioning
- ✓Mitsubishi product registration (required for 10-year warranty)

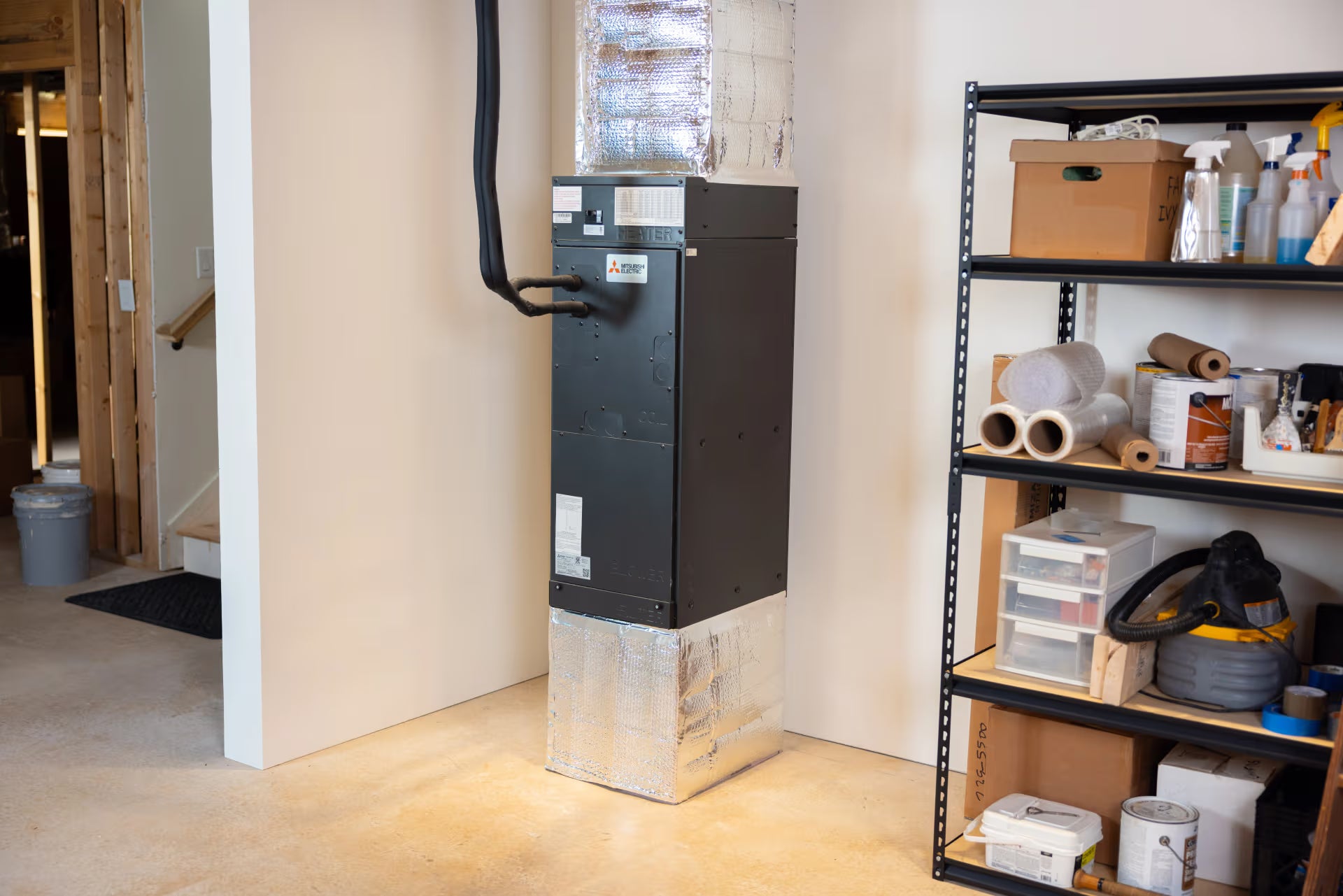

- ✓Multi-Position Installation — Installs in upflow, downflow, or horizontal orientation to fit your mechanical room or utility space configuration
- ✓Whole-Home Ducted Distribution — Works with your existing or new forced-air duct network to deliver heating and cooling to every room — no visible indoor units required in living spaces
- ✓Wide Capacity Range — 12,000 to 60,000 BTU covering small homes through large homes and light commercial — the widest range of any Mitsubishi ducted AHU lineup
- ✓Hyper Heat Option Available (up to 48K) — SUZ-AA (12K–18K) or SUZ-AK (24K–48K) Hyper Heat outdoor units for strong cold climate performance powered by H2i technology
- ✓ERV / HRV Compatible — Supports connection to an Energy Recovery Ventilator or Heat Recovery Ventilator for fresh air exchange
- ✓Humidifier Compatible — Supports whole-home humidifier connection
- ✓Optional Auxiliary Electric Heat — Compatible with built-in electric heat kits (3KW–10KW) for supplemental heating — specify at time of order
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Built-in electric heat kits available for supplemental heating. All residential applications require 240V/1/60. Must be specified at time of unit order.
| Heat Kit | Capacity | Compatible Models |
|---|---|---|
| EH03-SVZ-S | 3 KW | SVZ-AP12, AP18, AP24 |
| EH05-SVZ-S | 5 KW | SVZ-AP12, AP18, AP24 |
| EH08-SVZ-S | 8 KW | SVZ-AP18, AP24 |
| EH05-SVZ-M | 5 KW | SVZ-AP30, AP36 |
| EH08-SVZ-M | 8 KW | SVZ-AP30, AP36 |
| EH10-SVZ-M | 10 KW | SVZ-AP30, AP36 |
Sizing depends on insulation, ceiling height, duct design, and local climate. Contact Bison Air for a proper load calculation before ordering.
Dimensions vary by BTU size. Unit installs in upflow, downflow, or horizontal orientation. Always verify mechanical room clearance with your installer before finalizing placement.
A controller is required — not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for air handler applications
- ✓Wi-Fi Adapter for Comfort App — PAC-USWHS002-WF-2 — smartphone control
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration
- ✓Thermostat Interface Module — RMF-CA100-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat, thermostat not included
- ✓ERV / Humidifier Connection Kit — CN24RELAY-KIT-CM3 — for humidifier; PAC-YU25HT-G × 2 + PAM-4 Relay for ERV/HRV
- ✓Site assessment and mechanical room evaluation for unit placement and orientation
- ✓Air handler installation in upflow, downflow, or horizontal orientation
- ✓Placement and mounting of outdoor unit (min 18" off grade or roof)
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Duct connection to supply and return plenum — duct fabrication quoted separately if required
- ✓Electrical connection (dedicated circuit required)
- ✓Vacuum, leak test, and system commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for 10-year warranty
- ✓10-Year Parts Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship
Product registration with Mitsubishi is required to activate the 10-year warranty. Bison Air handles registration at the time of installation.
- ✓TSSA Certified HVAC Contractor
- ✓Fully Licensed & Insured HVAC Technicians
- ✓Registered HRSP Heat Pump Rebate Contractor
- ✓Standard Installation Included — No Hidden Fees
- ✓Up to 20 ft Lineset Included with every installation
- ✓Professional System Design & Equipment Selection
- ✓Clean, Organized Installations
- ✓Financing Available — Pre-qualify in seconds
This system may qualify for Ontario government rebate programs. Bison Air is a Registered HRSP Rebate Contractor.
- ✓Up to $7,500 in available rebates
- ✓Financing available — pre-qualify in seconds
