Mitsubishi – Mr. Slim SEZ Series Horizontal Ducted Low Static Indoor Unit | R-454B | Toronto & GTA Installation Included

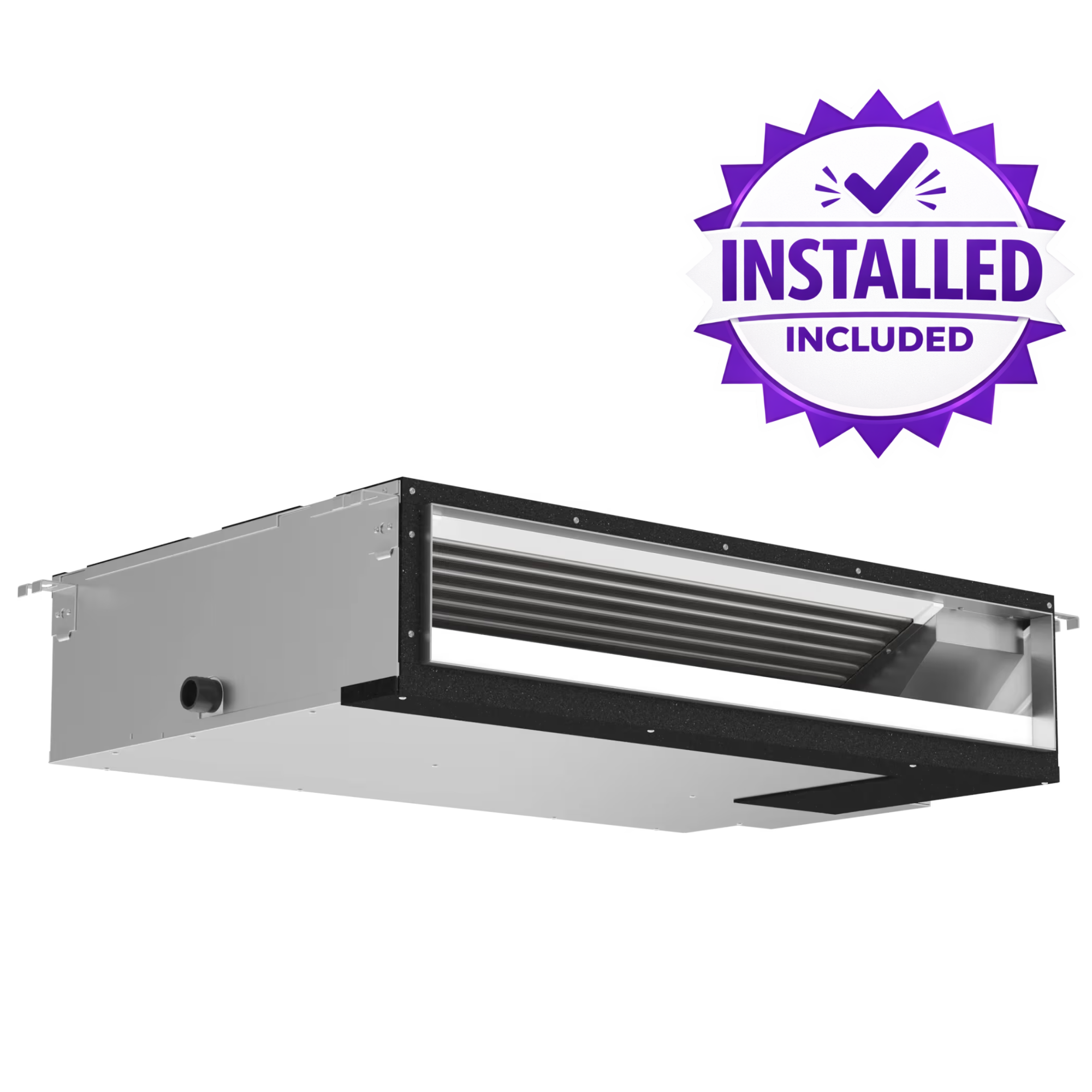

The Mitsubishi Mr. Slim SEZ Series is a horizontal ducted ceiling-concealed indoor unit designed for low static pressure duct systems. It installs above the ceiling and connects to a short run of existing or new ductwork — delivering conditioned air through standard supply registers with no visible indoor unit. A clean, discreet solution for rooms where aesthetics matter and a small duct network is already in place or practical to add. Available in 9,000 to 17,200 BTU. This page is for the indoor unit and installation only. A compatible outdoor unit must be purchased separately. A controller is also required and is not included — see options below. Price includes up to 20 ft of lineset with standard professional installation.
This page covers the SEZ Series indoor ducted unit and its installation only. To complete your system you also need:
- A compatible outdoor unit — MXZ Standard, MXZ Hyper Heat, PUMY Standard, or PUMY-HL Hyper Heat series (sold separately)
- A controller — SEZ units do not include a remote controller. A wired or Wi-Fi controller must be ordered separately — see options below
- ✓Mitsubishi SEZ-AD Series horizontal ducted low static indoor unit
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Connection to compatible outdoor unit and full system commissioning
- ✓Mitsubishi product registration (required for warranty)
- ✓Ceiling-Concealed Installation — Installs horizontally above the finished ceiling, completely hidden from view. Conditioned air is delivered through standard supply registers for a clean, finished appearance
- ✓Low Static Pressure Design — Engineered for short, simple duct runs with minimal resistance. Ideal for applications with a single supply register or a short branch of existing ductwork
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant meeting future environmental standards
- ✓Wi-Fi Enabled — Compatible with the Mitsubishi Comfort App via optional wireless adapter PAC-USWHS002-WF-2 (sold separately)
- ✓Compact Horizontal Profile — Slim design fits in tight ceiling cavities where space above the ceiling is limited
- ✓Compatible with Auxiliary Duct Heater — Optional electric duct heater available for supplemental heating (must be ordered to duct size — see installer for details)
- ✓Energy Star Certified — Meets government energy efficiency requirements
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Sizing is a guideline. Actual requirements depend on insulation, ceiling height, duct design, and local climate. Contact Bison Air for a proper load calculation.
Always verify ceiling cavity clearance and duct connection requirements with your installer before finalizing unit placement.
A controller is required for this unit — it is not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for ducted applications requiring a fixed wall thermostat-style controller
- ✓Wi-Fi Adapter for Comfort App — PAC-USWHS002-WF-2 — smartphone control via the Mitsubishi Comfort App
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration (Google Home, Amazon Alexa)
- ✓Thermostat Interface Module — RMF-CA100-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat (Honeywell, Ecobee, Nest), thermostat not included
- ✓Auxiliary Heat Source Control — MAC-3341F-E Interface + PAM-4 Relay + P55R-A12 Power Supply
- ✓Duct Heater Control — PAC-YU25HT-G + PAM-4 Relay — for optional electric duct heater connection
- ✓Auxiliary Heat Connector Cable — MAC-1710RA-U
Note: SEZ models do not support ERV or humidifier connection. Contact Bison Air to confirm the right controller for your application.
- ✓Site assessment and ceiling cavity evaluation for unit placement
- ✓Horizontal mounting of ducted unit above ceiling
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Duct connection to supply register(s) — duct fabrication quoted separately if required
- ✓Connection to compatible outdoor unit
- ✓Condensate drain connection and testing
- ✓System startup, leak test, and commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for warranty
- ✓10-Year Parts Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship on all Bison Air installations
Product registration with Mitsubishi is required to activate the 10-year warranty. Bison Air handles registration at the time of installation.
- ✓TSSA Certified HVAC Contractor
- ✓Fully Licensed & Insured HVAC Technicians
- ✓Registered HRSP Heat Pump Rebate Contractor — we handle rebate paperwork for eligible systems
- ✓Standard Installation Included — No Hidden Fees
- ✓Up to 20 ft Lineset Included with every indoor unit installation
- ✓Professional System Design & Equipment Selection
- ✓Clean, Organized Installations
- ✓Financing Available — Pre-qualify in seconds, no upfront payment required
Your complete Mitsubishi multi-zone system may qualify for government rebate programs available to Ontario homeowners. Bison Air is a Registered HRSP Rebate Contractor — we handle the paperwork so you don't have to.
- ✓Up to $7,500 in available rebates through Canada Greener Homes and HRSP programs
- ✓Financing available — pre-qualify in seconds, no upfront payment required
