Mitsubishi – PEAD Medium-Static Ducted Indoor Unit – R-454B
See your exact payment → · How financing works

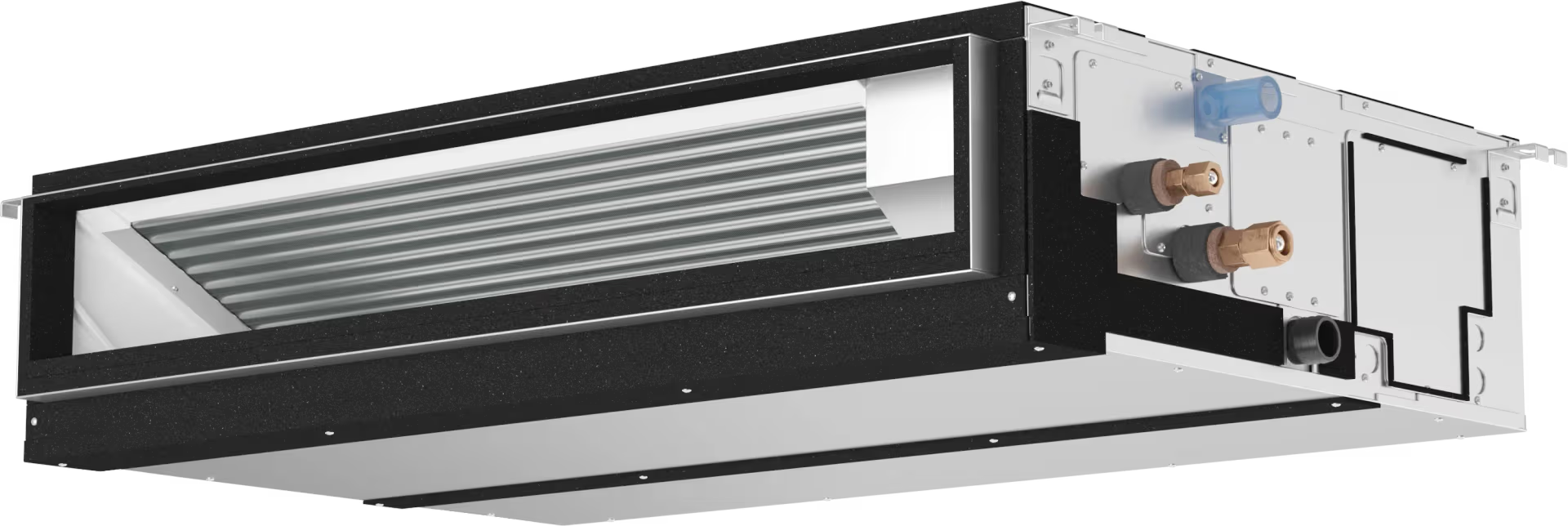

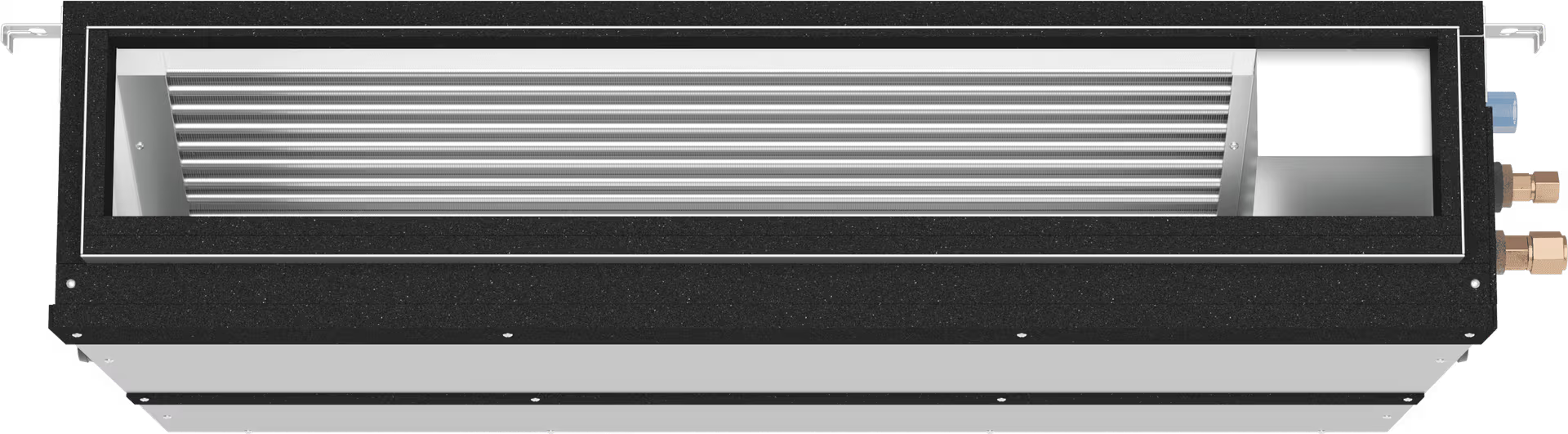

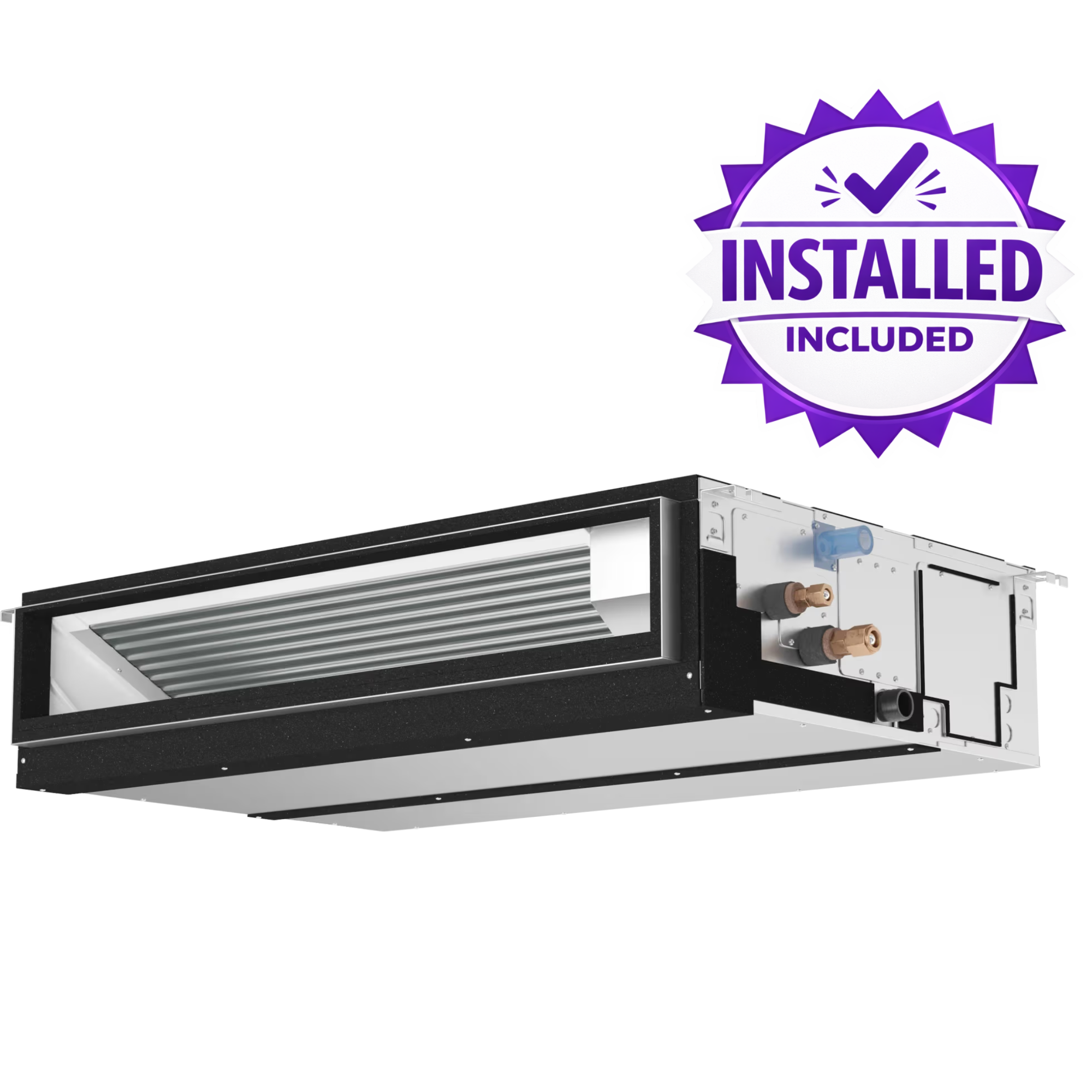

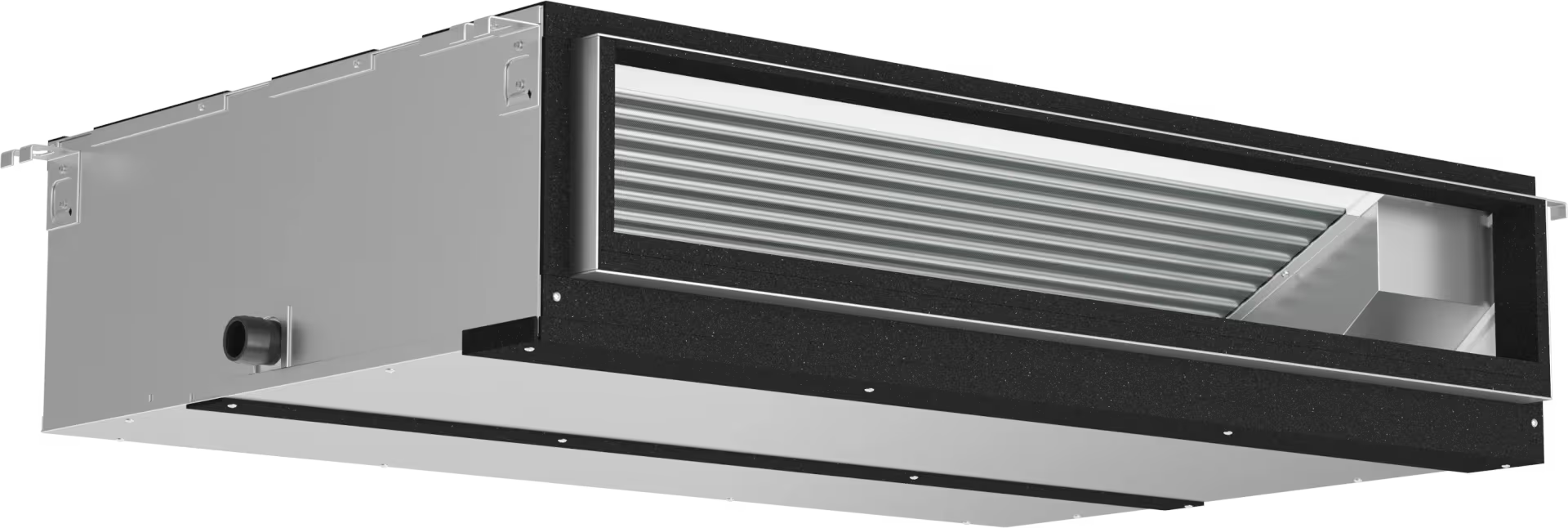

The Mitsubishi Mr. Slim PEAD Series is a horizontal ducted ceiling-concealed indoor unit engineered for medium static pressure duct systems — the right choice when your application requires longer duct runs, multiple supply registers, or a more complex distribution layout. Installed above the finished ceiling and completely hidden from view, the PEAD delivers conditioned air through your existing or new duct network just like a conventional furnace fan coil — but with the efficiency and zoning capability of a Mitsubishi multi-zone heat pump. Available in seven sizes from 9,000 to 36,000 BTU, covering everything from a single bedroom to a large open floor. This page is for the indoor unit and installation only. A compatible outdoor unit must be purchased separately. A controller is also required and is not included. Price includes up to 20 ft of lineset with standard professional installation.
| Feature | PEAD (This Page) | SEZ |
|---|---|---|
| Static Pressure | Medium — longer, more complex duct runs | Low — short, simple duct runs only |
| Supply Registers | Multiple registers supported | Typically one register |
| ERV / HRV Connection | ✅ Supported | ❌ Not supported |
| Humidifier Connection | ✅ Supported | ❌ Not supported |
| Max BTU | 36,000 BTU | 17,200 BTU |
Not sure which ducted unit fits your project? Contact Bison Air — we'll assess your duct layout and recommend the right solution.
This page covers the PEAD Series indoor ducted unit and its installation only. To complete your system you also need:
- A compatible outdoor unit — MXZ Standard, MXZ Hyper Heat, PUMY Standard, or PUMY-HL Hyper Heat series (sold separately)
- A controller — PEAD units do not include a remote controller. A wired or Wi-Fi controller must be ordered separately — see options below
- ✓Mitsubishi PEAD-AA Series horizontal ducted medium static indoor unit
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Connection to compatible outdoor unit and full system commissioning
- ✓Mitsubishi product registration (required for warranty)
- ✓Medium Static Pressure — Handles longer duct runs and multiple supply registers, making it suitable for more complex distribution layouts than a low static unit
- ✓Ceiling-Concealed Installation — Installs horizontally above the finished ceiling, completely hidden from view. Air is distributed through your duct network and standard supply registers
- ✓ERV / HRV Compatible — Supports connection to an Energy Recovery Ventilator or Heat Recovery Ventilator for improved indoor air quality and fresh air exchange
- ✓Humidifier Compatible — Supports whole-home humidifier connection for improved winter comfort
- ✓Wide BTU Range — Available from 9,000 to 36,000 BTU, covering small rooms through large open-concept spaces and light commercial zones
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant meeting future environmental standards
- ✓Wi-Fi Enabled — Compatible with the Mitsubishi Comfort App via optional wireless adapter PAC-USWHS002-WF-2 (sold separately)
- ✓Optional Electric Duct Heater — Compatible with electric auxiliary duct heaters for supplemental heating — must be sized to duct dimensions, custom built to order
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Sizing is a guideline. Actual requirements depend on insulation, ceiling height, duct design, and local climate. Contact Bison Air for a proper load calculation.
Dimensions vary by BTU size. Always verify ceiling cavity clearance and duct connection requirements with your installer before finalizing unit placement.
A controller is required for this unit — it is not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for ducted applications requiring a fixed wall thermostat-style controller
- ✓Wi-Fi Adapter for Comfort App — PAC-USWHS002-WF-2 — smartphone control via the Mitsubishi Comfort App
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration (Google Home, Amazon Alexa)
- ✓Thermostat Interface Module — RMF-CA100-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat (Honeywell, Ecobee, Nest), thermostat not included
- ✓Auxiliary Heat Source Control — MAC-3341F-E Interface + PAM-4 Relay + P55R-A12 Power Supply
- ✓Duct Heater Control — PAC-YU25HT-G + PAM-4 Relay — for optional electric duct heater connection
- ✓ERV / Humidifier Connection Kit — CN24RELAY-KIT-CM3 — for connecting an ERV, HRV, or humidifier to the system
- ✓Site assessment and ceiling cavity evaluation for unit placement and duct layout
- ✓Horizontal mounting of ducted unit above ceiling
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Duct connection to supply register(s) — duct fabrication quoted separately if required
- ✓Connection to compatible outdoor unit
- ✓Condensate drain connection and testing
- ✓System startup, leak test, and commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for warranty
- ✓10-Year Parts Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship on all Bison Air installations
Product registration with Mitsubishi is required to activate the 10-year warranty. Bison Air handles registration at the time of installation.
- ✓TSSA Certified HVAC Contractor
- ✓Fully Licensed & Insured HVAC Technicians
- ✓Registered HRSP Heat Pump Rebate Contractor — we handle rebate paperwork for eligible systems
- ✓Standard Installation Included — No Hidden Fees
- ✓Up to 20 ft Lineset Included with every indoor unit installation
- ✓Professional System Design & Equipment Selection
- ✓Clean, Organized Installations
- ✓Financing Available — Pre-qualify in seconds, no upfront payment required
Your complete Mitsubishi multi-zone system may qualify for government rebate programs available to Ontario homeowners. Bison Air is a Registered HRSP Rebate Contractor — we handle the paperwork so you don't have to.
- ✓Up to $7,500 in available rebates through Canada Greener Homes and HRSP programs
- ✓Financing available — pre-qualify in seconds, no upfront payment required
