The Bosch Climate 5000 MAX Performance Single Zone Ducted Heat Pump combines the concealed installation of a ducted system with the highest cold-climate performance in the Bosch Climate 5000 ductless lineup. The indoor air handler is installed inside a ceiling cavity, attic, or mechanical room and delivers conditioned air through short duct runs — no visible indoor unit in the living space — while the MAX Performance outdoor condenser keeps heating reliably down to -30°C (-22°F).
With up to 21.4 SEER2 cooling efficiency and 9.7 HSPF2 heating efficiency, this is the right choice for homeowners who want a completely hidden system and need maximum cold-weather performance for GTA winters. Running on next-generation R454B refrigerant, the system is future-proofed for upcoming environmental regulations.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
⚠️ Important: Remote control is not included with this system. A thermostat must be ordered separately. Compatible options are listed in the accessories section below.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
MAX Performance vs Regular – What's the Difference?
Both models use the same concealed ducted indoor air handler (IDU). The difference is entirely in the outdoor condenser unit (ODU). The MAX Performance ODU uses a more advanced compressor that delivers:
- Deeper cold climate heating — down to -30°C (-22°F) vs -25°C (-13°F) on the Regular Ducted model
- Higher efficiency — up to 21.4 SEER2 vs 20 SEER2 on the Regular
- Higher HSPF2 — up to 9.7 vs 8.8 on the Regular, meaning lower heating costs per season
- Stronger heating output at extreme temperatures — maintains higher BTU delivery as temperatures drop below -20°C
If your home is in a colder part of the GTA — or in Barrie, Newmarket, Bradford, Innisfil, or surrounding areas — and you plan to use this system as a primary heat source through the full winter, the MAX Performance model is the stronger long-term investment.
Why Choose a Ducted System?
The ducted format is ideal when you want all the efficiency of a ductless heat pump with none of the visible wall-mount equipment inside your home. Common applications include:
- New construction or major renovations where concealed systems are planned from the start
- Spaces where a wall-mount unit cannot be positioned correctly due to layout or aesthetics
- Homes where a completely unobstructed interior is a priority
- Applications with short duct runs distributing air to multiple grilles within a single zone
If a visible wall unit is acceptable for your space, see our wall-mount single zone options, which are simpler to install and do not require any ductwork.
What's Included – System Components

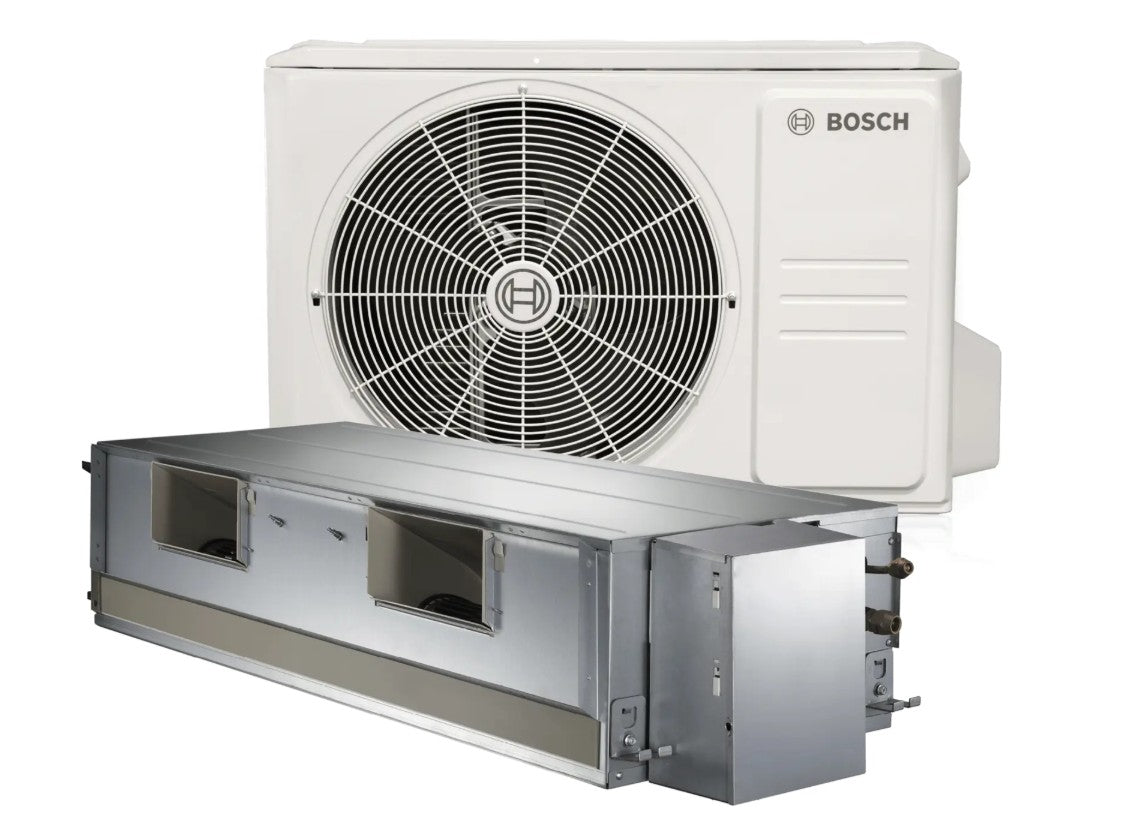

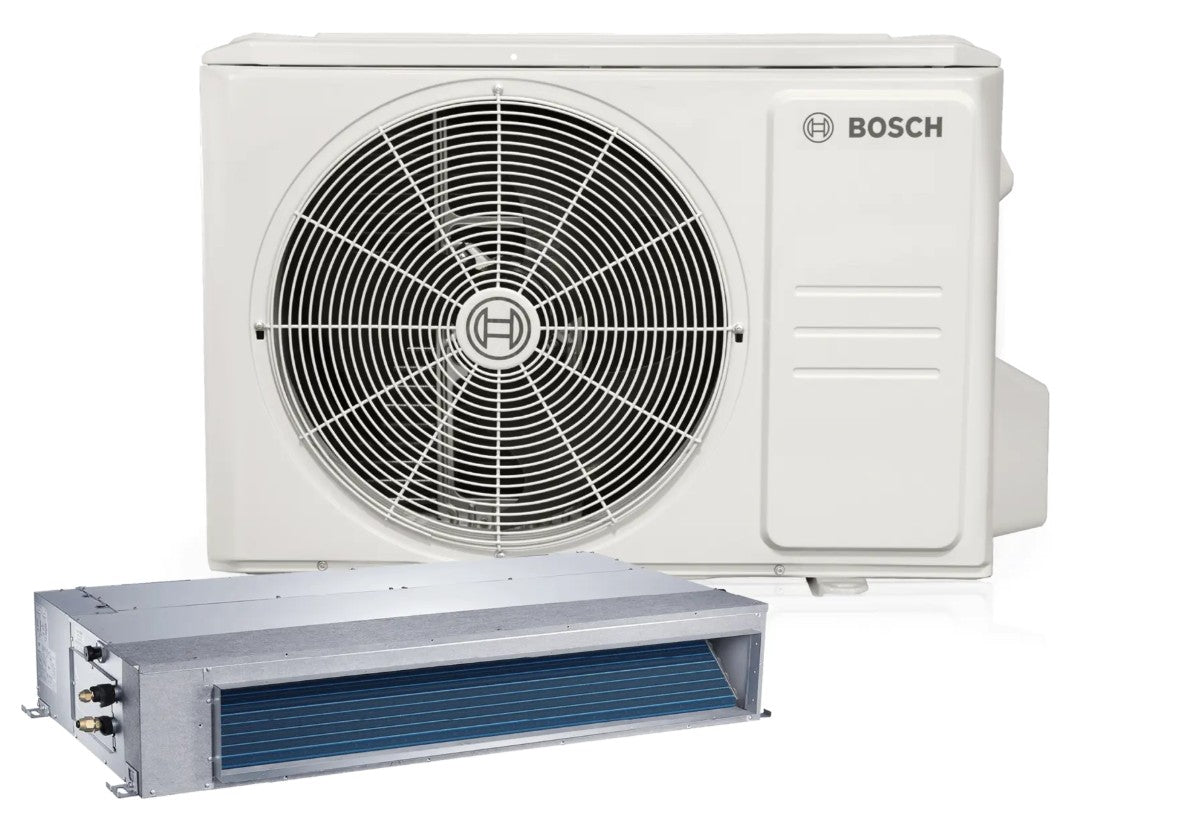

This is a complete single zone ducted heat pump system consisting of one outdoor condenser unit (ODU) and one concealed ducted indoor air handler (IDU), connected by a refrigerant line set. Both components are factory-matched for optimal efficiency and performance.
- Outdoor Condenser Unit (ODU) — the MAX Performance heat pump unit installed on an exterior wall bracket or ground pad outside your home
- Ducted Indoor Air Handler (IDU) — the concealed unit installed inside a ceiling cavity, attic, or mechanical room, connecting to short duct runs and grilles
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
⚠️ Thermostat / remote control is NOT included and must be ordered separately. See the accessories section below for compatible options.
Key Features
- Heats down to -30°C (-22°F) — the highest cold-climate performance in the Bosch Climate 5000 ducted lineup
- Concealed ducted indoor unit — no visible wall-mount equipment inside the living or working space
- Up to 21.4 SEER2 — premium cooling efficiency for a ducted system
- Up to 9.7 HSPF2 — high-efficiency heating performance
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXHD | BMS500-AAU009-1AHDXD | 21.4 | 13.4 | 9.7 | ¼" x ⅜" | 82' | 15 | 3,400 / 13,500 | 3,800 / 16,200 |
| 12,000 | BMS500-AAS012-1CSXHD | BMS500-AAU012-1AHDXD | 20.0 | 12.0 | 8.0 | ¼" x ⅜" | 82' | 15 | 3,400 / 13,500 | 3,800 / 16,200 |
| 18,000 | BMS500-AAS018-1CSXHD | BMS500-AAU018-1AHDXD | 18.0 | 12.0 | 9.0 | ¼" x ½" | 98.4' | 20 | 6,500 / 18,800 | 8,900 / 22,000 |
| 24,000 | BMS500-AAS024-1CSXHD | BMS500-AAU024-1AHDXD | 19.0 | 12.0 | 9.3 | ⅜" x ⅝" | 164' | 25 | 5,000 / 28,000 | 7,300 / 31,400 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -30°C to +50°C (-22°F to +122°F)
Heating Operating Range: -30°C to +24°C (-22°F to +75°F)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
⚠️ Remote control not included. Thermostat must be ordered separately.
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Required Accessories – Thermostat Must Be Ordered Separately
The ducted indoor unit does not include a remote control or thermostat. You must select and order a compatible control separately. The following options are compatible with this system:
- BCC110 WiFi Thermostat — Part #7736007442 — app-based smart control via Wi-Fi
- Gen4 Wired Wall Thermostat — Part #8733962707 — wired wall-mount thermostat
- Gen4 24V Mini Interface — Part #8733969263 — 24V interface for integration with third-party thermostats
📞 Not sure which thermostat is right for your setup? Call us at 416-652-4323 and we'll advise based on your installation.
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Concealed ducted indoor air handler (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Ducted installations are site-specific. Ceiling access, duct routing, and condensate drain routing all vary by property. We strongly recommend calling us at 416-652-4323 before purchasing so we can confirm your installation requirements at no obligation.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
- Ductless mini split systems
- Heat pump heating and cooling systems
- Heat Pump Installation Toronto
- Heat pump services in Toronto
Areas We Serve
Bison Air provides ducted heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, assess your site, confirm thermostat requirements, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:
Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
The price includes complete installation and warranty and is based on standard installation. However, the price may vary depending on the location and any extra work required, such as high voltage wiring, duct modification, crawl space, or any other specific installation condition.
