The Bosch Climate 5000 Single Zone 1-Way Cassette Heat Pump delivers efficient year-round heating and cooling from a ceiling-recessed indoor unit that discharges conditioned air in one direction along a wall or corridor. Unlike wall-mount systems that sit visibly on your wall, the 1-way cassette unit sits flush with your ceiling — only the slim panel face is visible — making it an ideal choice for commercial spaces, offices, server rooms, hallways, and any application where wall space is limited or a ceiling-mounted presentation is preferred.
Running on next-generation R454B refrigerant, the system delivers reliable heating down to -25°C (-13°F) with up to 22.2 SEER2 cooling efficiency and 9.0 HSPF2 heating efficiency.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
What Is a 1-Way Cassette Heat Pump?
A 1-way cassette is a ceiling-recessed indoor unit that mounts flush inside a dropped ceiling grid and distributes conditioned air through a single discharge outlet on one side of the unit. This makes it ideal for directing airflow along a wall, down a corridor, or across a long narrow space.

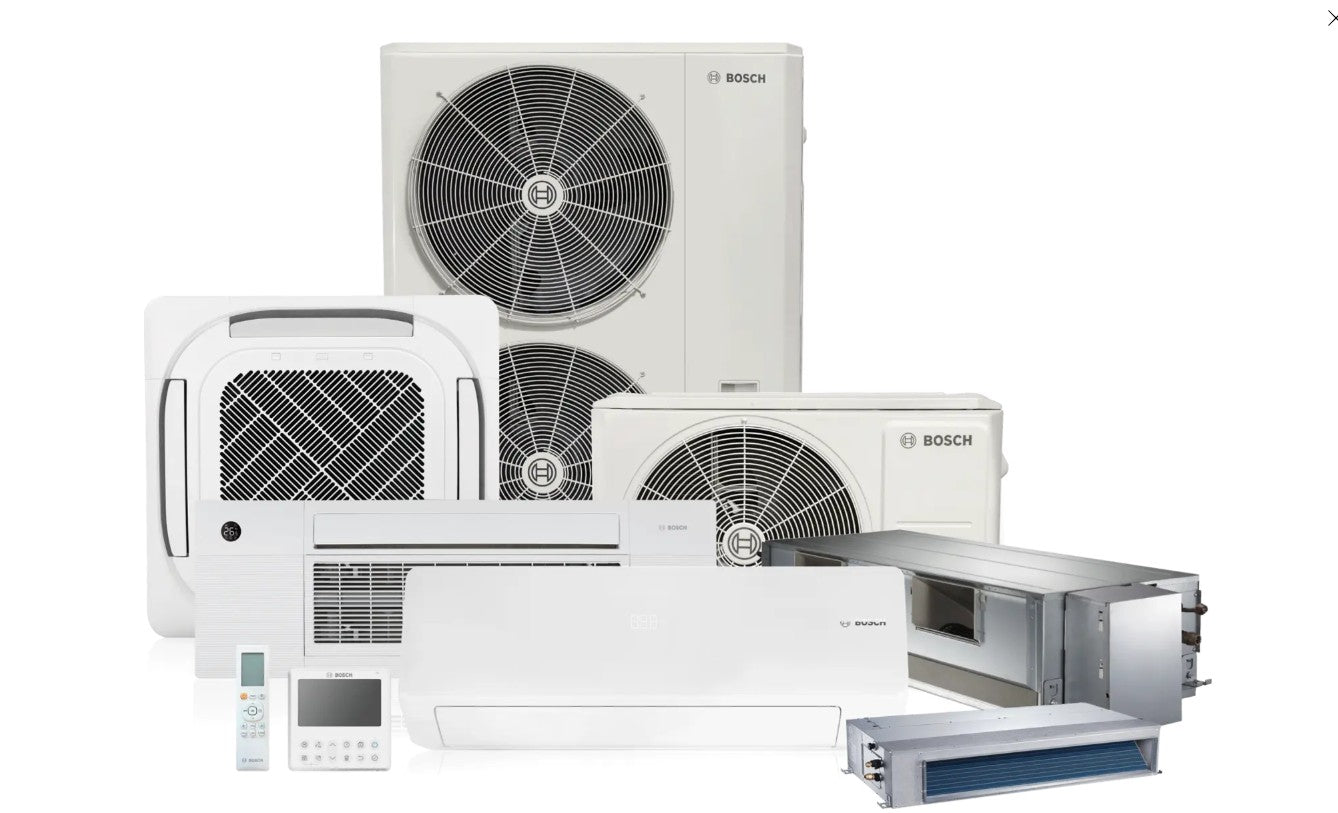

Compared to other indoor unit types in the Bosch Climate 5000 lineup:
- The wall-mount IDU mounts visibly on an interior wall and conditions the room directly — no ceiling work required
- The ducted IDU is fully concealed inside a ceiling cavity and distributes air through duct runs and grilles
- The 1-way cassette IDU sits recessed in a ceiling grid with only a slim panel face visible, discharging air in one controlled direction
- The 4-way cassette IDU sits recessed in a ceiling and discharges air in all four directions for central room coverage
The 1-way cassette is the right choice when you need ceiling installation with directional airflow — particularly in narrow rooms, corridors, server rooms, or commercial spaces along a single wall exposure.
What's Included – System Components

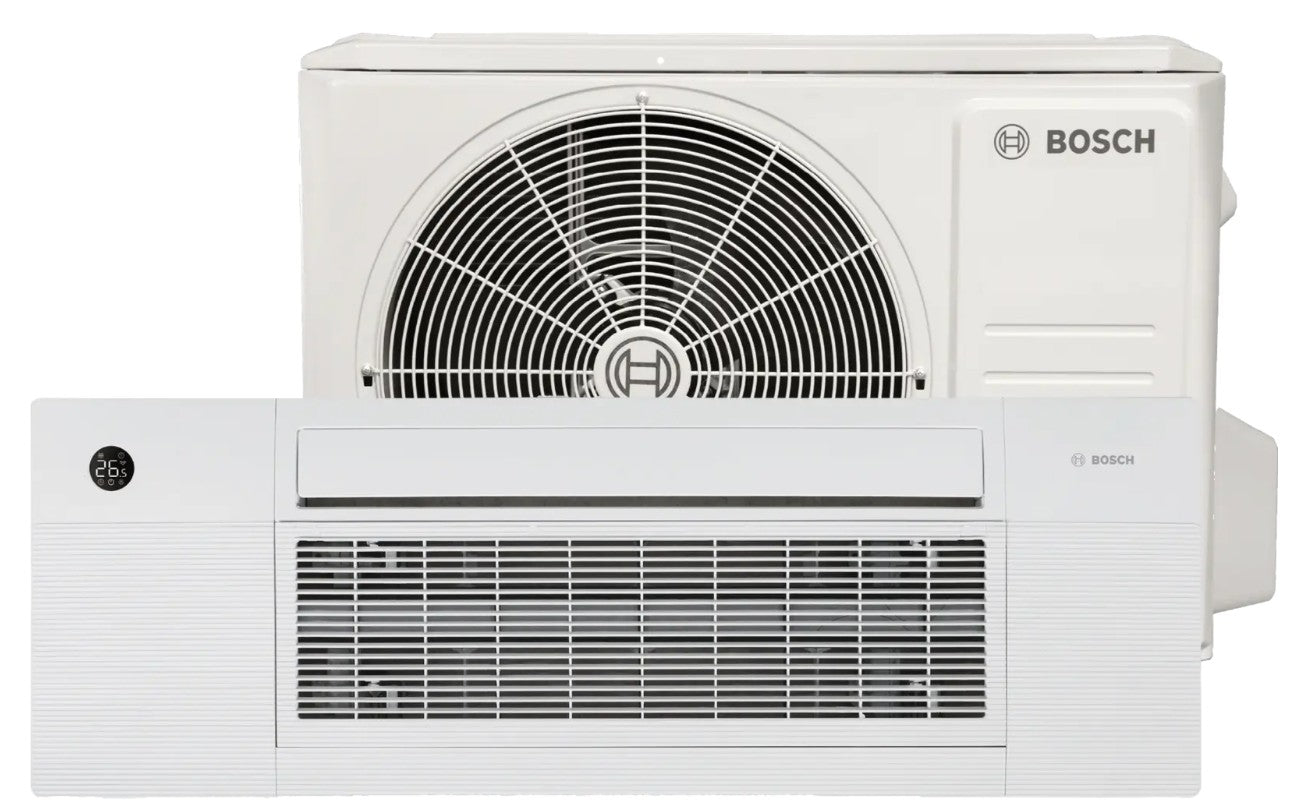

This is a complete single zone heat pump system consisting of one outdoor condenser unit (ODU) and one ceiling-recessed 1-way cassette indoor unit (IDU), connected by a refrigerant line set. Both components are factory-matched for optimal efficiency and performance.
- Outdoor Condenser Unit (ODU) — the main heat pump unit installed on an exterior wall bracket or ground pad outside your home or building
- 1-Way Cassette Indoor Unit (IDU) — ceiling-recessed unit (50.31" x 13.19" x 8.98") that mounts flush in a dropped ceiling and discharges air in one direction
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
This system is designed for single zone use — one outdoor unit paired with one indoor cassette unit, serving one room or defined area. If you need to condition multiple rooms from one outdoor unit, visit our multi-zone ductless heat pump installation page.
Key Features
- Ceiling-recessed 1-way cassette indoor unit — only the slim panel face is visible, with directional single-discharge airflow
- Heats down to -25°C (-13°F) — reliable through GTA winters without supplemental electric heat
- Up to 22.2 SEER2 — high cooling efficiency
- Up to 9.0 HSPF2 — efficient heating performance
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- Intelligent Eye sensor — detects occupancy and adjusts comfort automatically
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXRD | BMS500-AAU009-1AHZXD | 22.1 | 14.4 | 9.0 | ¼" x ⅜" | 82' | 15 | 3,700 / 11,400 | 4,100 / 14,300 |
| 12,000 | BMS500-AAS012-1CSXRD | BMS500-AAU012-1AHZXD | 22.1 | 12.3 | 7.8 | ¼" x ⅜" | 82' | 15 | 3,900 / 13,800 | 4,700 / 15,300 |
| 18,000 | BMS500-AAS018-1CSXRD | BMS500-AAU018-1AHZXD | 22.2 | 12.5 | 8.6 | ¼" x ½" | 98.4' | 20 | 4,000 / 18,800 | 7,600 / 22,800 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -25°C to +50°C (-13°F to +122°F)
Heating Operating Range: -25°C to +24°C (-13°F to +75°F)
IDU Dimensions (W x D x H): 50.31" x 13.19" x 8.98" (all sizes)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Compatible Accessories
- BCC110 WiFi Thermostat — Part #7736007442
- Gen4 Wired Wall Thermostat — Part #8733962707
- Gen4 24V Mini Interface — Part #8733969263
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Ceiling-recessed 1-way cassette indoor unit (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Cassette installations require a dropped ceiling grid with sufficient clearance. Call us at 416-652-4323 before purchasing and we'll confirm your ceiling is suitable for this unit at no obligation.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
- Ductless mini split systems
- Heat pump heating and cooling systems
- Heat Pump Installation Toronto
- Heat pump services in Toronto
Areas We Serve
Bison Air provides ductless heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, confirm ceiling suitability, check rebate eligibility, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:
Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
