Bosch Climate 5000 – Single Zone 1-Way Cassette Heat Pump | MAX Performance | R454B | GTA Installation Included
Bosch Climate 5000 – Single Zone 1-Way Cassette Heat Pump | MAX Performance | R454B | GTA Installation Included

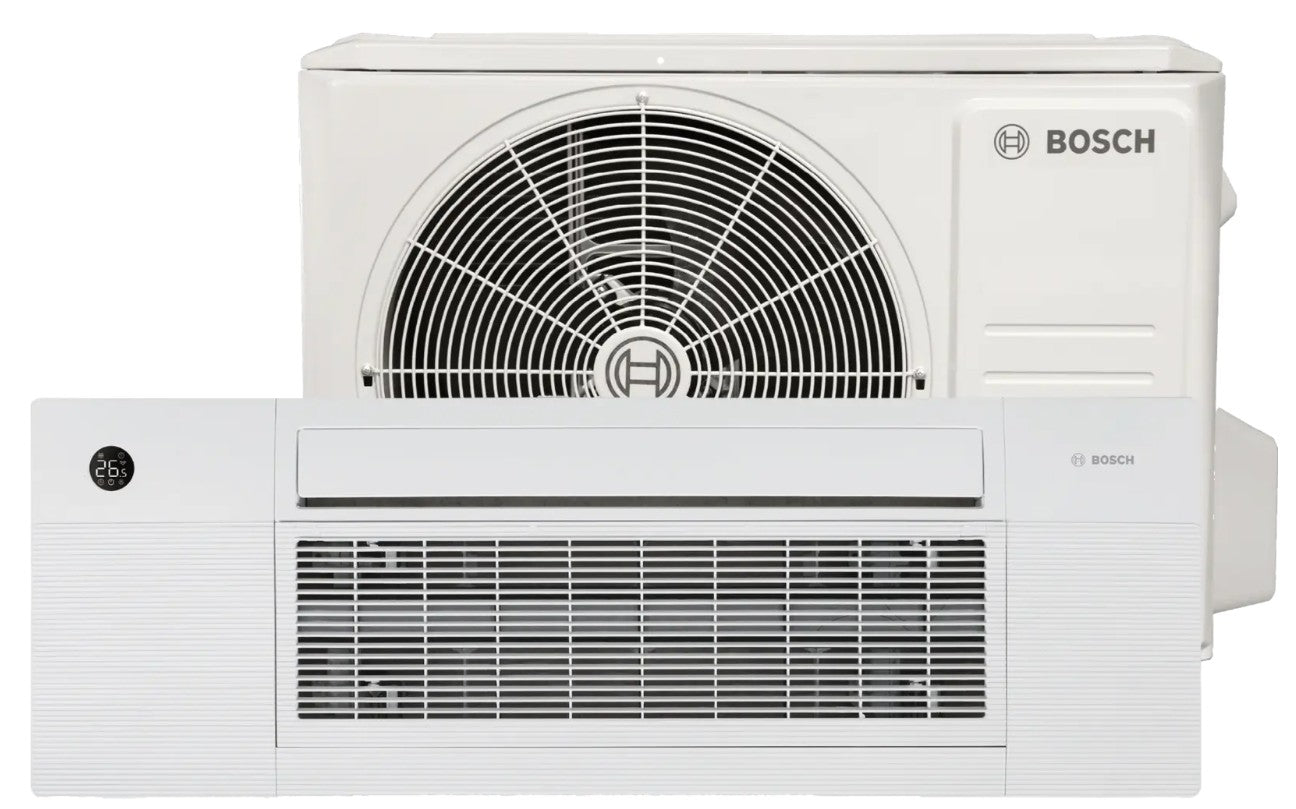

The Bosch Climate 5000 MAX Performance Single Zone 1-Way Cassette Heat Pump combines the clean ceiling-recessed installation of the 1-way cassette format with the highest cold-climate performance available in the Bosch Climate 5000 ductless lineup. The indoor cassette unit mounts flush inside a dropped ceiling grid and discharges conditioned air in one direction, while the MAX Performance outdoor condenser delivers reliable heating down to -30°C (-22°F).
With up to 24.0 SEER2 cooling efficiency and 9.5 HSPF2 heating efficiency — the highest ratings of any 1-way cassette model in this series — this system is the right choice for offices, commercial spaces, server rooms, or any ceiling-mount application in colder parts of the GTA, Barrie, Newmarket, or surrounding areas where maximum winter performance matters.
Running on next-generation R454B refrigerant, the system is future-proofed for upcoming environmental regulations while delivering Bosch's proven reliability and a 10-year compressor warranty.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
MAX Performance vs Regular – What's the Difference?
Both models use the identical 1-way cassette indoor unit (IDU). The difference is entirely in the outdoor condenser unit (ODU). The MAX Performance ODU delivers:
- Deeper cold climate heating — down to -30°C (-22°F) vs -25°C (-13°F) on the Regular
- Higher SEER2 — up to 24.0 vs 22.2 on the Regular, meaning lower cooling costs
- Higher HSPF2 — up to 9.5 vs 9.0 on the Regular, meaning lower seasonal heating costs
- Stronger heating output at extreme temperatures — maintains higher BTU delivery as temperatures drop below -20°C
If your property is in a colder area north of the GTA, or if this system will serve as the primary heat source through the full winter, the MAX Performance model is the stronger long-term investment even at the higher upfront cost.
What Is a 1-Way Cassette Heat Pump?
A 1-way cassette is a ceiling-recessed indoor unit that mounts flush inside a dropped ceiling tile grid and distributes conditioned air through a single discharge outlet in one direction. Only the slim face panel is visible from below — the unit body sits above the ceiling plane.
This format is ideal for:
- Offices and commercial spaces where wall-mount units are not suitable
- Corridors and narrow rooms where one-directional airflow covers the full space
- Server rooms and utility spaces requiring ceiling-level conditioning
- Any application where a completely clean wall presentation is required
If you need airflow distributed in all four directions from a ceiling-mounted unit, see our 4-way cassette options. If a visible wall-mount unit is acceptable, see our wall-mount single zone lineup for a simpler installation.
What's Included – System Components
This is a complete single zone heat pump system consisting of one outdoor condenser unit (ODU) and one ceiling-recessed 1-way cassette indoor unit (IDU), connected by a refrigerant line set. Both components are factory-matched for optimal efficiency and performance.
- Outdoor Condenser Unit (ODU) — the MAX Performance heat pump unit installed on an exterior wall bracket or ground pad outside your home or building
- 1-Way Cassette Indoor Unit (IDU) — ceiling-recessed unit (50.31" x 13.19" x 8.98") that mounts flush in a dropped ceiling and discharges air in one direction
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
This system is designed for single zone use — one outdoor unit paired with one indoor cassette unit, serving one room or defined area. If you need to condition multiple rooms from one outdoor unit, visit our multi-zone ductless heat pump installation page.
Key Features
- Heats down to -30°C (-22°F) — the highest cold-climate performance in the Bosch Climate 5000 1-way cassette lineup
- Ceiling-recessed 1-way cassette indoor unit — only the slim panel face is visible, with controlled single-direction airflow
- Up to 24.0 SEER2 — highest cooling efficiency in the Climate 5000 1-way cassette series
- Up to 9.5 HSPF2 — high heating efficiency for lower seasonal energy costs
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- Intelligent Eye sensor — detects occupancy and adjusts comfort automatically
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXHD | BMS500-AAU009-1AHZXD | 24.0 | 14.6 | 9.5 | ¼" x ⅜" | 82' | 15 | 4,000 / 12,900 | 3,800 / 13,900 |
| 12,000 | BMS500-AAS012-1CSXHD | BMS500-AAU012-1AHZXD | 23.0 | 13.0 | 8.0 | ¼" x ⅜" | 82' | 15 | 4,000 / 13,900 | 4,600 / 15,200 |
| 18,000 | BMS500-AAS018-1CSXHD | BMS500-AAU018-1AHZXD | 20.6 | 12.5 | 9.2 | ¼" x ½" | 98.4' | 20 | 5,700 / 19,000 | 8,900 / 22,000 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -30°C to +50°C (-22°F to +122°F)
Heating Operating Range: -30°C to +24°C (-22°F to +75°F)
IDU Dimensions (W x D x H): 50.31" x 13.19" x 8.98" (all sizes)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Compatible Accessories
- BCC110 WiFi Thermostat — Part #7736007442
- Gen4 Wired Wall Thermostat — Part #8733962707
- Gen4 24V Mini Interface — Part #8733969263
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Ceiling-recessed 1-way cassette indoor unit (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Cassette installations require a dropped ceiling grid with sufficient clearance above. Call us at 416-652-4323 before purchasing and we'll confirm your ceiling is suitable at no obligation.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
Areas We Serve
Bison Air provides ductless heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, confirm ceiling suitability, check rebate eligibility, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:
Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
The price includes complete installation and warranty and is based on standard installation. However, the price may vary depending on the location and any extra work required, such as high voltage wiring, duct modification, crawl space, or any other specific installation condition.
This information is general. Contact us for proper heat pump size, talk to an advisor, or request an in-home consultation.
