Bosch Climate 5000 – Single Zone 4-Way Cassette Heat Pump | Regular | R454B | GTA Installation Included
Bosch Climate 5000 – Single Zone 4-Way Cassette Heat Pump | Regular | R454B | GTA Installation Included
The Bosch Climate 5000 Single Zone 4-Way Cassette Heat Pump delivers efficient year-round heating and cooling from a ceiling-recessed indoor unit that distributes conditioned air equally in all four directions. Mounted flush inside a dropped ceiling grid, the 4-way cassette is the ideal choice for conditioning square or open-plan spaces from a single central ceiling point — offices, retail areas, open-concept residential floors, meeting rooms, and commercial spaces where even air distribution across the entire room is essential.
Available in sizes from 9,000 to 48,000 BTU and running on next-generation R454B refrigerant, this system delivers reliable heating down to -25°C (-13°F) with up to 22 SEER2 cooling efficiency and 8.8 HSPF2 heating efficiency.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
⚠️ Important: The decorative ceiling grille is not included and must be ordered separately. See the accessories section below for the correct grille for your unit size.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
What Is a 4-Way Cassette Heat Pump?
A 4-way cassette is a ceiling-recessed indoor unit that mounts flush inside a dropped ceiling tile grid and distributes conditioned air simultaneously through four discharge outlets — one on each side of the unit — providing even, 360° airflow coverage across the entire room from a single central ceiling point.

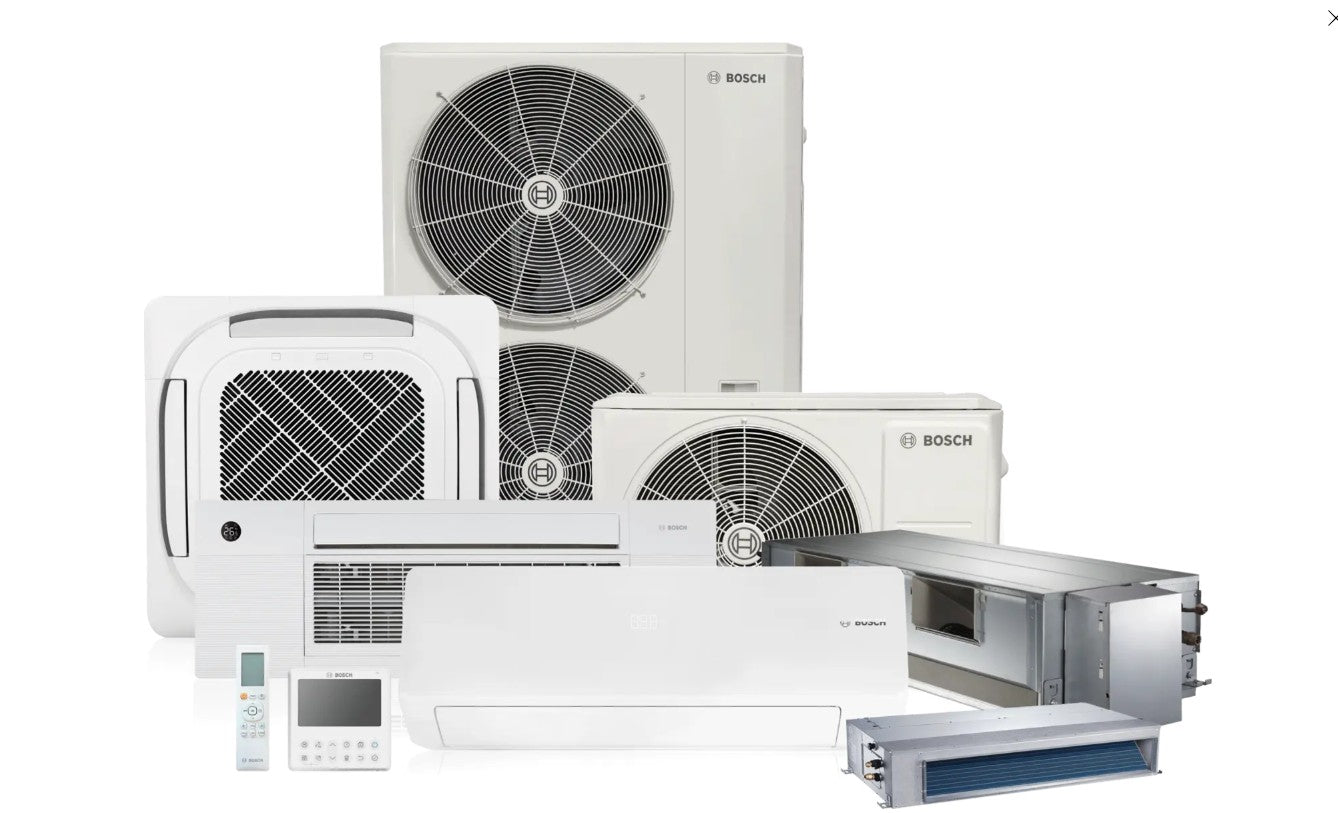

Compared to other indoor unit types in the Bosch Climate 5000 lineup:
- The wall-mount IDU mounts visibly on an interior wall, discharges air in one direction — no ceiling work required
- The ducted IDU is fully concealed above the ceiling, distributes air through duct runs and grilles
- The 1-way cassette IDU is ceiling-recessed, discharges air in one controlled direction only
- The 4-way cassette IDU is ceiling-recessed and discharges air equally in all four directions — best for central coverage of square or open-plan spaces
The 4-way cassette is the right choice when you need even air distribution across an entire open space from a single ceiling-mounted unit — particularly for retail floors, office open plans, meeting rooms, and large residential open-concept areas.
What's Included – System Components

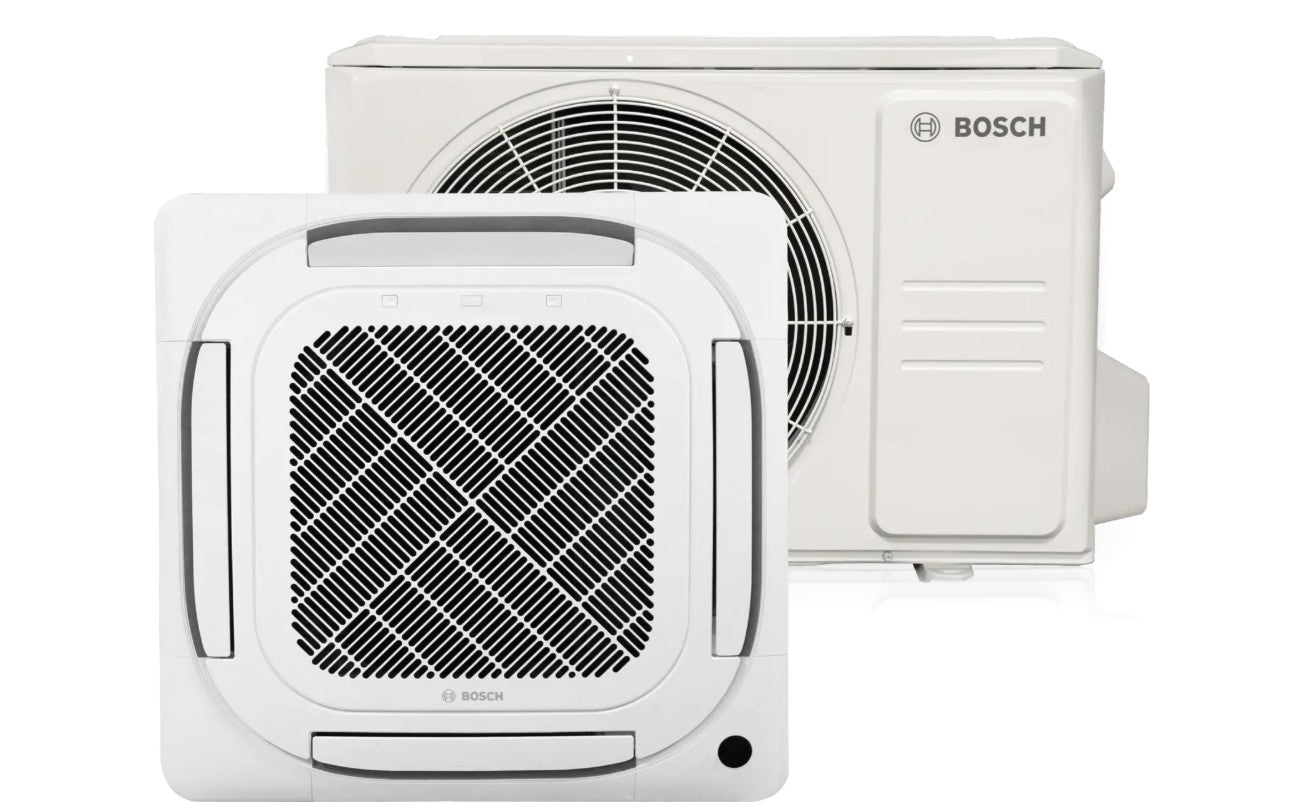

This is a complete single zone heat pump system consisting of one outdoor condenser unit (ODU) and one ceiling-recessed 4-way cassette indoor unit (IDU), connected by a refrigerant line set.
- Outdoor Condenser Unit (ODU) — the main heat pump unit installed on an exterior wall bracket or ground pad outside your home or building
-
4-Way Cassette Indoor Unit (IDU) — ceiling-recessed unit that mounts flush in a dropped ceiling and distributes conditioned air in all four directions
- 9K, 12K & 18K IDU dimensions: 22.44" x 22.44" x 9.65"
- 24K, 36K & 48K IDU dimensions: 32.68" x 32.68" x 8.07"–11.3"
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
⚠️ Decorative ceiling grille is NOT included. Must be ordered separately — see accessories section below.
This system is designed for single zone use — one outdoor unit paired with one indoor cassette unit. If you need to condition multiple rooms from one outdoor unit, visit our multi-zone ductless heat pump installation page.
Key Features
- 4-way ceiling discharge — even air distribution in all four directions from a single central ceiling point
- 9,000 to 48,000 BTU — covers small rooms through large open-plan commercial spaces
- Heats down to -25°C (-13°F) — reliable through GTA winters without supplemental electric heat
- Up to 22 SEER2 — efficient cooling performance
- Up to 8.8 HSPF2 — high-efficiency heating performance
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- Intelligent Eye sensor — detects occupancy and adjusts comfort automatically
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXRD | BMS500-AAU009-1AHCXD | 21.6 | 14.3 | 8.8 | ¼" x ⅜" | 82' | 15 | 3,700 / 12,000 | 4,700 / 13,700 |
| 12,000 | BMS500-AAS012-1CSXRD | BMS500-AAU012-1AHCXD | 21.1 | 12.5 | 7.9 | ¼" x ⅜" | 82' | 15 | 3,700 / 14,000 | 4,700 / 15,000 |
| 18,000 | BMS500-AAS018-1CSXRD | BMS500-AAU018-1AHCXD | 20.7 | 12.5 | 8.5 | ¼" x ½" | 98.4' | 20 | 5,300 / 17,800 | 7,100 / 21,500 |
| 24,000 | BMS500-AAS024-1CSXRD | BMS500-AAU024-1AHCXD | 22.0 | 12.0 | 8.1 | ⅜" x ⅝" | 164' | 25 | 12,300 / 26,800 | 11,600 / 33,100 |
| 36,000 | BMS500-AAS036-1CSXLD | BMS500-AAU036-1AHCXD | 20.0 | 10.3 | 7.9 | ⅜" x ¾" | 246' | 35 | 6,400 / 39,800 | 14,400 / 42,200 |
| 48,000 | BMS500-AAS048-1CSXLD | BMS500-AAU024-1AHCXD | 19.0 | 19.0 | 7.7 | ⅜" x ¾" | 246' | 40 | 10,600 / 50,400 | 19,900 / 61,700 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -25°C to +50°C (-13°F to +122°F)
Heating Operating Range: -25°C to +24°C (-13°F to +75°F)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
⚠️ Decorative ceiling grille not included. Must be ordered separately — see accessories below.
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Required & Compatible Accessories
⚠️ Decorative ceiling grille is not included with the cassette indoor unit and must be ordered separately. Select the correct grille size for your unit:
- Compact Cassette Grille 2' x 2' — Part #8733962708 — for 9K, 12K & 18K units
- Compact Cassette Grille 3' x 3' — Part #8733962703 — for 24K, 36K & 48K units
Compatible thermostats and controls:
- BCC110 WiFi Thermostat — Part #7736007442
- Gen4 Wired Wall Thermostat — Part #8733962707
- Gen4 24V Mini Interface — Part #8733969263
📞 Not sure which accessories you need? Call us at 416-652-4323 and we'll advise based on your installation.
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Ceiling-recessed 4-way cassette indoor unit (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Cassette installations require a dropped ceiling grid with sufficient clearance and access above. Call us at 416-652-4323 before purchasing and we'll confirm your ceiling is suitable at no obligation.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
- Ductless mini split systems
- Heat pump heating and cooling systems
- Heat Pump Installation Toronto
- Heat pump services in Toronto
Areas We Serve
Bison Air provides ductless heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, confirm ceiling suitability, select the correct accessories, check rebate eligibility, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:
Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
The price includes complete installation and warranty and is based on standard installation. However, the price may vary depending on the location and any extra work required, such as high voltage wiring, duct modification, crawl space, or any other specific installation condition.
This information is general. Contact us for proper heat pump size, talk to an advisor, or request an in-home consultation.
