Bosch Climate 5000 – Single Zone 4-Way Cassette Heat Pump | MAX Performance | R454B | GTA Installation Included
Bosch Climate 5000 – Single Zone 4-Way Cassette Heat Pump | MAX Performance | R454B | GTA Installation Included

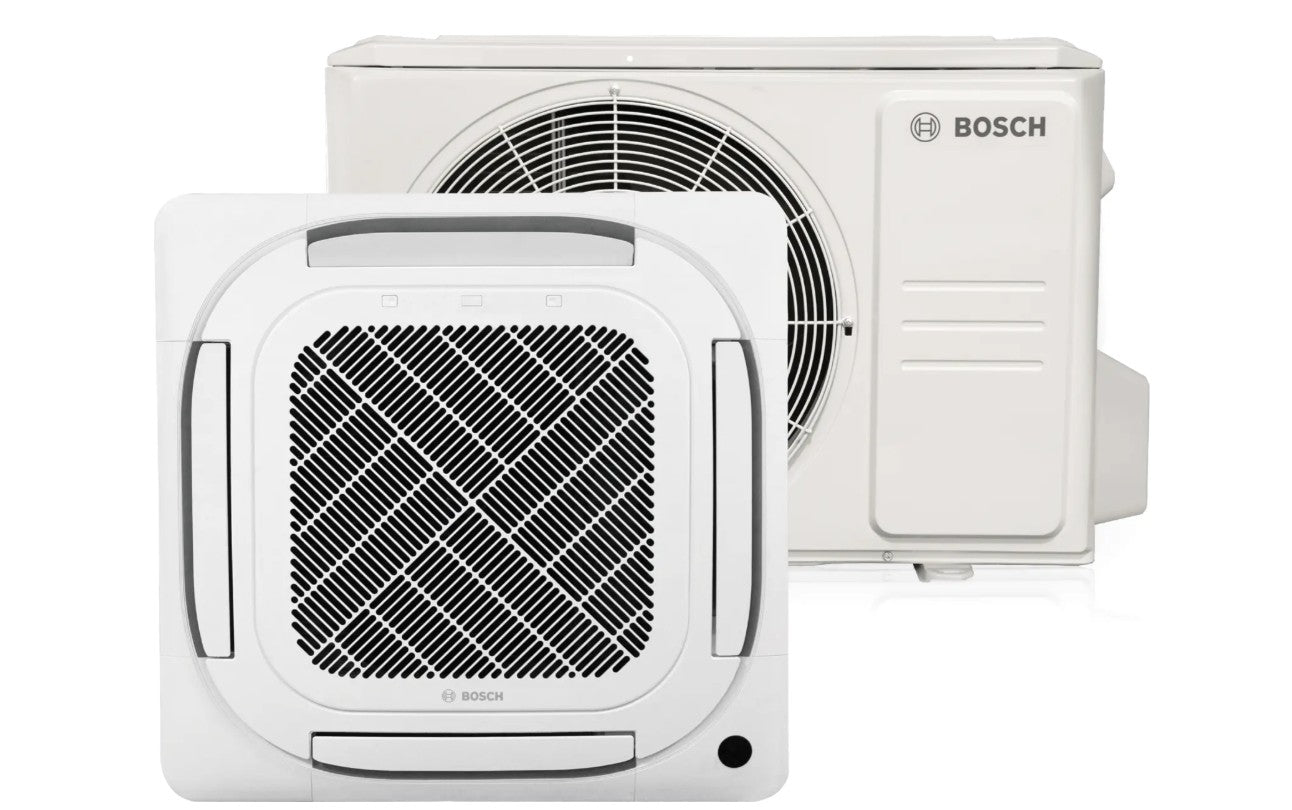

The Bosch Climate 5000 MAX Performance Single Zone 4-Way Cassette Heat Pump is the highest-performing ceiling-recessed cassette system in the Bosch Climate 5000 ductless lineup. The indoor unit mounts flush inside a dropped ceiling tile grid and distributes conditioned air equally in all four directions, while the MAX Performance outdoor condenser delivers reliable heating down to -30°C (-22°F) — making it the right choice for open-plan spaces in any part of the GTA, including colder areas north of the city.
With up to 22.6 SEER2 cooling efficiency and 9.5 HSPF2 heating efficiency, this system outperforms the Regular 4-Way Cassette model on both fronts. Running on next-generation R454B refrigerant, it is future-proofed for upcoming environmental regulations while delivering Bosch's proven 10-year compressor warranty and whisper-quiet operation.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
⚠️ Important: The decorative ceiling grille is not included and must be ordered separately. See the accessories section below for the correct grille for your unit size.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
MAX Performance vs Regular – What's the Difference?
Both models use the identical 4-way cassette indoor unit (IDU). The difference is entirely in the outdoor condenser unit (ODU). The MAX Performance ODU delivers:
- Deeper cold climate heating — down to -30°C (-22°F) vs -25°C (-13°F) on the Regular
- Higher SEER2 — up to 22.6 vs 22.0 on the Regular, meaning lower cooling costs
- Higher HSPF2 — up to 9.5 vs 8.8 on the Regular, meaning lower seasonal heating costs
- Stronger heating output at extreme temperatures — maintains higher BTU delivery as temperatures drop below -20°C
The MAX Performance model is available in 9K–24K only. If you need a 36K or 48K 4-way cassette, see our 4-Way Cassette Regular, which covers up to 48,000 BTU.
What Is a 4-Way Cassette Heat Pump?
A 4-way cassette is a ceiling-recessed indoor unit that mounts flush inside a dropped ceiling tile grid and distributes conditioned air simultaneously through four discharge outlets — one on each side — providing even, 360° airflow coverage from a single central ceiling point. Only the decorative grille panel is visible from below.
The 4-way cassette is the right choice for:
- Square or open-plan offices requiring even temperature distribution across the full floor area
- Retail spaces, meeting rooms, and showrooms where central ceiling conditioning is preferred
- Open-concept residential areas where wall space cannot accommodate a wall-mount unit
- Any space where 360° airflow from a single ceiling point provides better coverage than directional discharge
If you need directional single-outlet ceiling discharge, see our 1-Way Cassette options. If a wall-mount unit is acceptable, our wall-mount single zone lineup offers a simpler installation with no ceiling work required.
What's Included – System Components
This is a complete single zone heat pump system consisting of one outdoor condenser unit (ODU) and one ceiling-recessed 4-way cassette indoor unit (IDU), connected by a refrigerant line set. Both components are factory-matched for optimal efficiency and performance.
- Outdoor Condenser Unit (ODU) — the MAX Performance heat pump unit installed on an exterior wall bracket or ground pad outside your home or building
-
4-Way Cassette Indoor Unit (IDU) — ceiling-recessed unit that mounts flush in a dropped ceiling and distributes conditioned air equally in all four directions
- 9K, 12K & 18K IDU dimensions: 22.44" x 22.44" x 9.65"
- 24K IDU dimensions: 32.68" x 32.68" x 8.07"
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
⚠️ Decorative ceiling grille is NOT included and must be ordered separately. See the accessories section below.
This system is designed for single zone use — one outdoor unit paired with one indoor cassette unit. If you need to condition multiple rooms from one outdoor unit, visit our multi-zone ductless heat pump installation page.
Key Features
- Heats down to -30°C (-22°F) — the highest cold-climate performance in the Bosch Climate 5000 4-way cassette lineup
- 4-way ceiling discharge — even air distribution in all four directions from a single central ceiling point
- Up to 22.6 SEER2 — highest cooling efficiency in the Climate 5000 4-way cassette series
- Up to 9.5 HSPF2 — high heating efficiency for lower seasonal energy costs
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- Intelligent Eye sensor — detects occupancy and adjusts comfort automatically
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXHD | BMS500-AAU009-1AHCXD | 22.6 | 14.0 | 9.3 | ¼" x ⅜" | 82' | 15 | 3,700 / 13,600 | 5,100 / 15,700 |
| 12,000 | BMS500-AAS012-1CSXHD | BMS500-AAU012-1AHCXD | 22.2 | 12.5 | 8.9 | ¼" x ⅜" | 82' | 15 | 3,800 / 15,100 | 5,300 / 16,200 |
| 18,000 | BMS500-AAS018-1CSXHD | BMS500-AAU018-1AHCXD | 20.0 | 12.5 | 9.5 | ¼" x ½" | 98.4' | 20 | 7,000 / 18,500 | 8,700 / 20,000 |
| 24,000 | BMS500-AAS024-1CSXHD | BMS500-AAU024-1AHCXD | 20.7 | 12.0 | 9.2 | ⅜" x ⅝" | 164' | 25 | 12,800 / 26,200 | 11,500 / 30,700 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -30°C to +50°C (-22°F to +122°F)
Heating Operating Range: -30°C to +24°C (-22°F to +75°F)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
⚠️ Decorative ceiling grille not included. Must be ordered separately — see accessories below.
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Required & Compatible Accessories
⚠️ Decorative ceiling grille is not included with the cassette indoor unit and must be ordered separately. Select the correct grille for your unit size:
- Compact Cassette Grille 2' x 2' — Part #8733962708 — for 9K, 12K & 18K units
- Compact Cassette Grille 3' x 3' — Part #8733962703 — for 24K units
Compatible thermostats and controls:
- BCC110 WiFi Thermostat — Part #7736007442
- Gen4 Wired Wall Thermostat — Part #8733962707
- Gen4 24V Mini Interface — Part #8733969263
📞 Not sure which accessories you need? Call us at 416-652-4323 and we'll advise based on your installation.
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Ceiling-recessed 4-way cassette indoor unit (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Cassette installations require a dropped ceiling grid with sufficient clearance and access above. Call us at 416-652-4323 before purchasing and we'll confirm your ceiling is suitable at no obligation.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
- Ductless mini split systems
- Heat pump heating and cooling systems
- Heat Pump Installation Toronto
- Heat pump services in Toronto
Areas We Serve
Bison Air provides ductless heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, confirm ceiling suitability, select the correct accessories, check rebate eligibility, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:

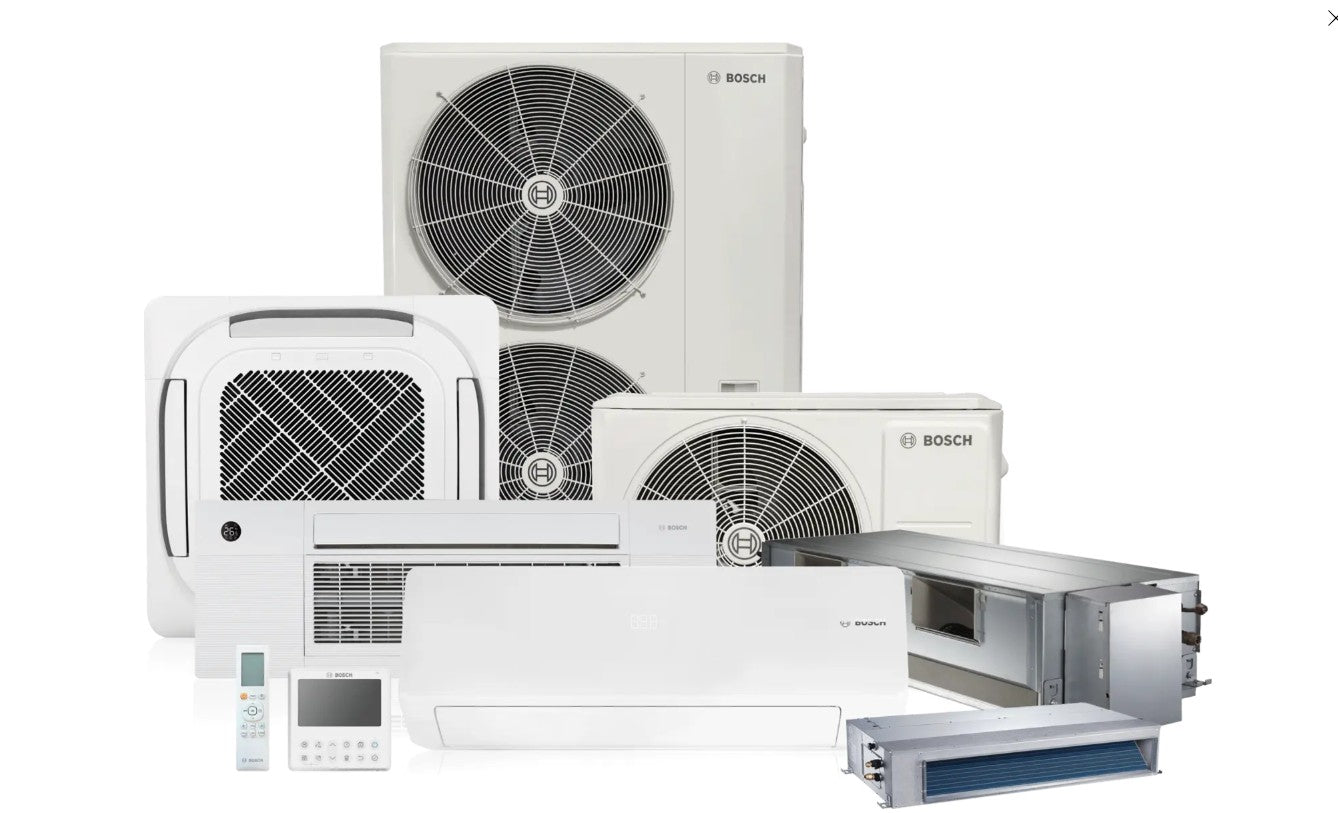

Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
