The Bosch Climate 5000 Single Zone Ducted Heat Pump delivers the efficiency and reliability of the Bosch Climate 5000 platform in a concealed ducted format — no visible indoor unit on your wall. The indoor air handler is installed inside a ceiling, attic space, or mechanical room and distributes conditioned air through short duct runs, making it ideal for applications where a wall-mount unit is not practical or preferred.
Available in sizes from 9,000 to 60,000 BTU, this system covers everything from a single bedroom to a large open-concept commercial space. Running on next-generation R454B refrigerant, it delivers reliable heating down to -25°C (-13°F) and efficient cooling through the hottest GTA summers.
Standard installation by Bison Air's licensed HVAC technicians is included with every purchase.
⚠️ Important: Remote control is not included with this system. A thermostat must be ordered separately. Compatible options are listed in the accessories section below.
Learn more about our Ductless Single Zone Heat Pump Installation in Toronto & GTA, or explore our Ductless Multi Zone Heat Pump Installation page if you need to heat and cool multiple rooms from one outdoor unit.
Ducted vs Wall-Mount – Which Is Right for You?

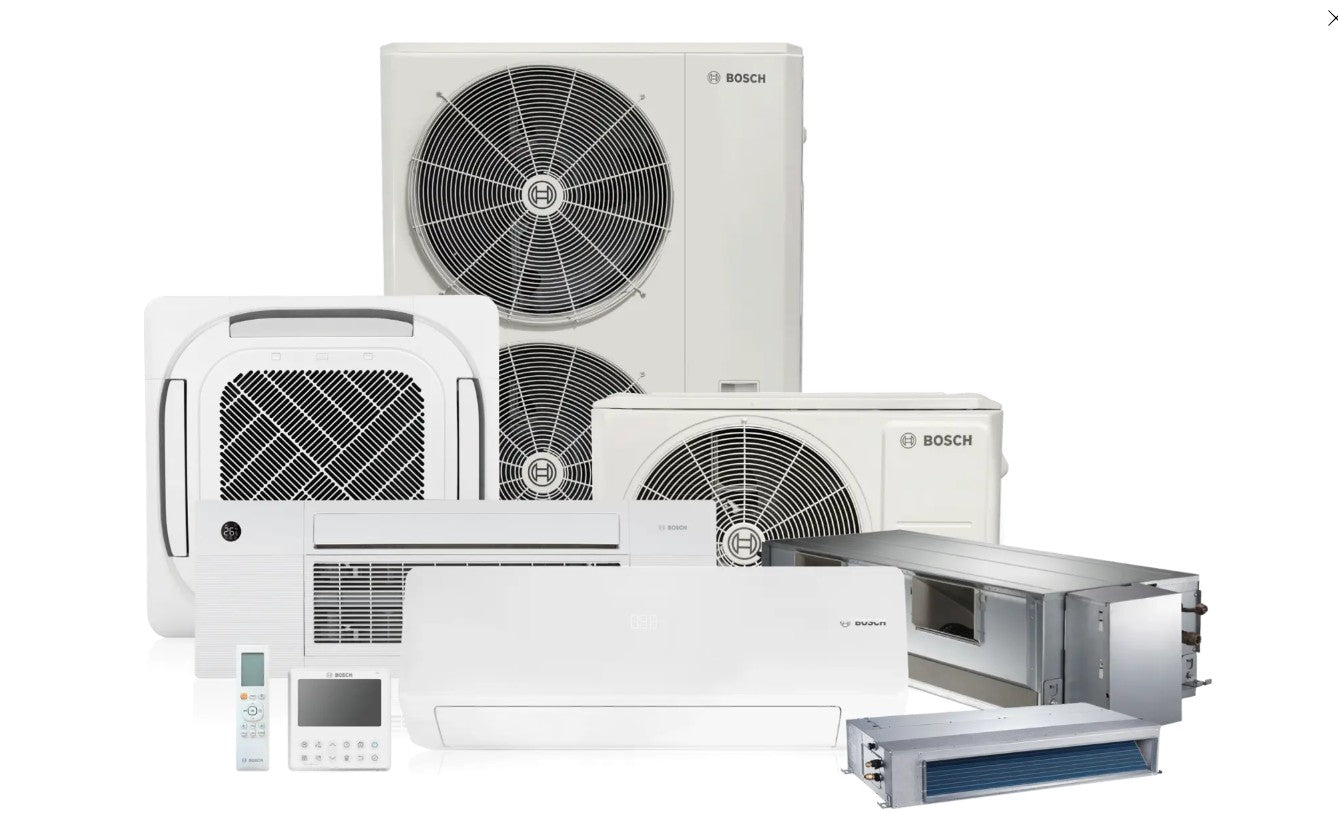

Both systems use the same Bosch Climate 5000 outdoor condenser platform. The difference is entirely in the indoor unit (IDU):
- The wall-mount IDU is visible on the interior wall and conditions the room directly — no ductwork required
- The ducted IDU is concealed inside a ceiling cavity, attic, or mechanical room and distributes air through short duct runs — no visible indoor equipment in the living space
The ducted system is the right choice when:
- You want a completely clean, uninterrupted interior — no wall units visible in any room
- You are installing in a space where a wall-mount unit cannot be positioned correctly
- You have or plan to install short duct runs to distribute air to multiple grilles in one zone
- You are working on a new construction or major renovation where concealed systems are preferred
If a visible wall unit is acceptable, see our wall-mount single zone options which are simpler to install and do not require ductwork.
What's Included – System Components

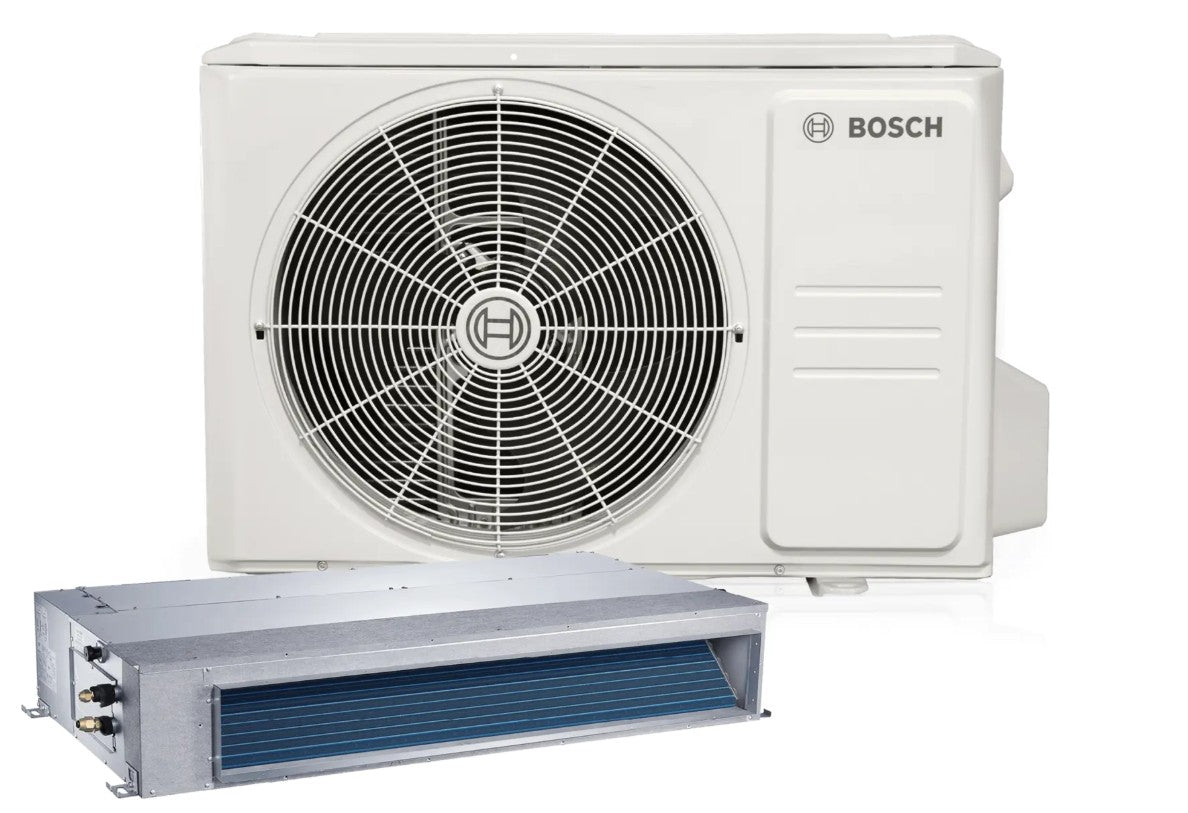

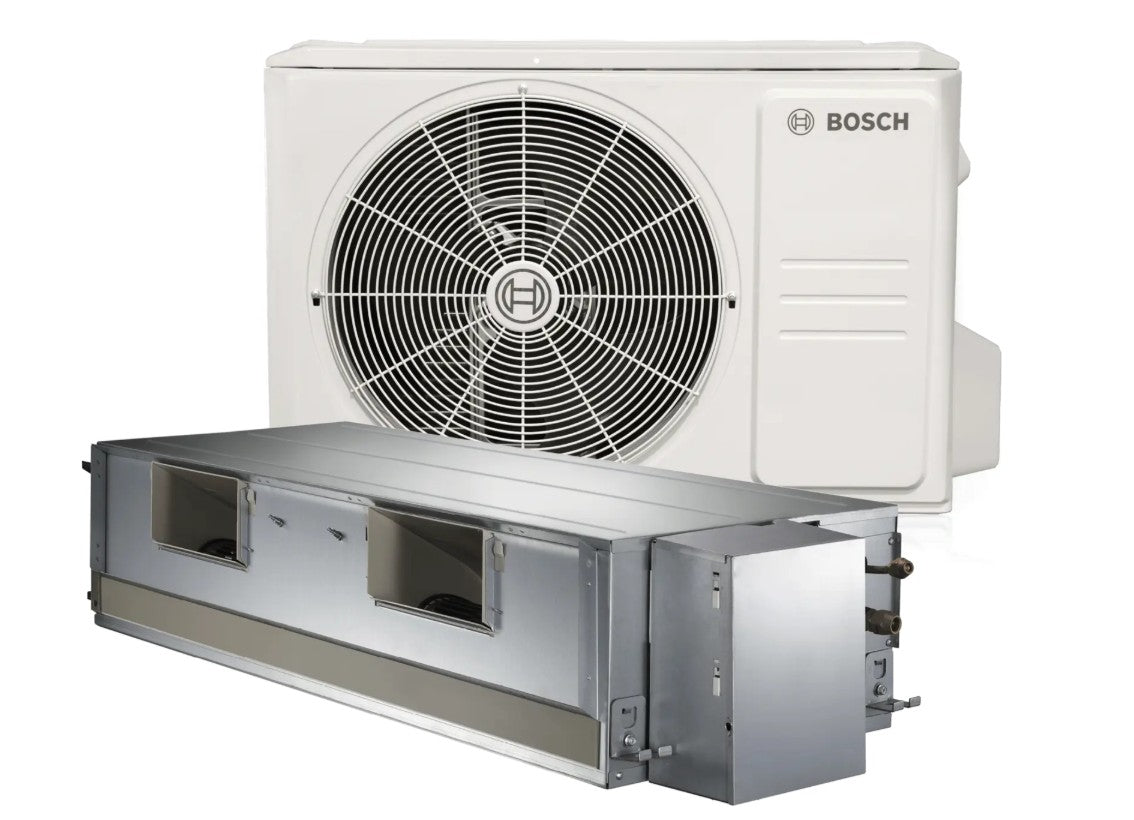

This is a complete single zone ducted heat pump system consisting of one outdoor condenser unit (ODU) and one concealed ducted indoor air handler unit (IDU), connected by a refrigerant line set.
- Outdoor Condenser Unit (ODU) — the main heat pump unit installed on an exterior wall bracket or ground pad outside your home or building
- Ducted Indoor Air Handler (IDU) — the concealed unit installed inside a ceiling cavity, attic, or mechanical room, connecting to short duct runs and grilles
- Refrigerant line set connecting both units (standard length included with installation)
- Full system commissioning and testing by Bison Air's licensed technicians
⚠️ Thermostat / remote control is NOT included and must be ordered separately. See the accessories section below for compatible options.
Key Features
- Concealed ducted indoor unit — no visible wall-mount equipment inside the living or working space
- 9,000 to 60,000 BTU — widest size range in the Bosch Climate 5000 single zone lineup
- Heats down to -25°C (-13°F) — reliable through GTA winters without supplemental electric heat
- Up to 20 SEER2 — efficient cooling performance
- Up to 8.8 HSPF2 — high-efficiency heating performance
- R454B refrigerant — low global warming potential (low-GWP), future-proofed for upcoming refrigerant regulations
- Inverter compressor — continuously modulates output for precise temperature control and maximum efficiency
- Whisper-quiet operation — ODU as low as 53 dB / IDU as low as 23 dB
- Self-cleaning mode — automatically dries the indoor coil after use to prevent mold and maintain air quality
- No additional accessory needed for low ambient cooling — operates in cooling mode at low outdoor temperatures without extras
- ENERGY STAR® & AHRI certified — verified efficiency and quality
- cULus listed — certified for the Canadian and US market
- 10-year compressor warranty / 7-year parts warranty (10 years on parts with registration)
- Compatible with multi-zone systems up to 6 zones — IDU units can also be used in multi-zone setups with a compatible multi-zone outdoor unit
Technical Specifications by Size
Learn more about SEER2 and what it means for your energy bills, or compare HSPF2 and EER2 ratings to better understand heating and cooling performance.
| BTU | ODU Model | IDU Model | SEER2 | EER2 | HSPF2 | Line Set | Max Pipe Length | MOCP (A) | Cooling Min/Max (BTU) | Heating Min/Max (BTU) |
|---|---|---|---|---|---|---|---|---|---|---|
| 9,000 | BMS500-AAS009-1CSXRD | BMS500-AAU009-1AHDXD | 19.5 | 12.8 | 8.8 | ¼" x ⅜" | 82' | 15 | 3,100 / 11,900 | 3,600 / 14,000 |
| 12,000 | BMS500-AAS012-1CSXRD | BMS500-AAU012-1AHDXD | 19.0 | 11.7 | 8.0 | ¼" x ⅜" | 82' | 15 | 3,100 / 13,000 | 3,700 / 15,600 |
| 18,000 | BMS500-AAS018-1CSXRD | BMS500-AAU018-1AHDXD | 20.0 | 12.5 | 8.2 | ¼" x ½" | 98.4' | 20 | 7,000 / 19,000 | 5,500 / 22,000 |
| 24,000 | BMS500-AAS024-1CSXRD | BMS500-AAU024-1AHDXD | 19.0 | 12.5 | 8.5 | ⅜" x ⅝" | 164' | 25 | 8,500 / 28,300 | 11,800 / 35,100 |
| 36,000 | BMS500-AAS036-1CSXLD | BMS500-AAU036-1AHDXD | 18.7 | 10.1 | 7.8 | ⅜" x ¾" | 246' | 35 | 7,900 / 42,500 | 8,100 / 43,500 |
| 48,000 | BMS500-AAS048-1CSXLD | BMS500-AAU048-1AHDXD | 17.1 | 10.0 | 7.7 | ⅜" x ¾" | 246' | 40 | 11,000 / 56,500 | 11,200 / 60,500 |
| 60,000 | BMS500-AAS060-1CSXLD | BMS500-AAU060-1AHDXD | 17.0 | 10.0 | 7.6 | ⅜" x ¾" | 246' | 45 | 14,600 / 63,000 | 11,800 / 67,000 |
Electrical: 208-230V / 1 Phase / 60 Hz (all sizes)
Cooling Operating Range: -25°C to +50°C (-13°F to +122°F)
Heating Operating Range: -25°C to +24°C (-13°F to +75°F)
Refrigerant: R454B
Certifications: ENERGY STAR®, AHRI, cULus
⚠️ Remote control not included. Thermostat must be ordered separately.
Not sure what size is right for your space? Visit our Mini Split Sizing Guide or contact us for a free site assessment.
Required Accessories – Thermostat Must Be Ordered Separately
Unlike wall-mount mini-split systems that include a remote control, the ducted indoor unit does not include a remote or thermostat. You must select and order a compatible control separately. The following options are compatible with this system:
- BCC110 WiFi Thermostat — Part #7736007442 — app-based smart control via Wi-Fi
- Gen4 Wired Wall Thermostat — Part #8733962707 — wired wall-mount thermostat
- Gen4 24V Mini Interface — Part #8733969263 — 24V interface for integration with third-party thermostats
📞 Not sure which thermostat is right for your setup? Call us at 416-652-4323 and we'll advise based on your installation.
Professional Installation – What's Included
Every purchase includes standard installation performed by Bison Air's TSSA-certified technicians across Toronto and the Greater Toronto Area. Learn more about our HVAC Services in Toronto & GTA or our full range of HVAC Installation Toronto & GTA.
Standard installation includes:
- Concealed ducted indoor air handler (IDU) installation
- Outdoor condenser unit (ODU) installation
- Refrigerant line set installation (standard length)
- Electrical connection and controls setup
- Condensate drainage setup
- Full system commissioning, testing, and customer walkthrough
📞 Ducted installations typically require site-specific assessment for ceiling access, duct routing, and condensate drainage. We strongly recommend calling us at 416-652-4323 before purchasing so we can confirm your installation requirements.
Why Choose Bison Air
- ✔ TSSA Certified HVAC Contractor
- ✔ Fully Licensed & Insured HVAC Technicians
- ✔ Registered HRSP Heat Pump Rebate Contractor
- ✔ Standard Installation Included — No Hidden Fees
- ✔ Professional System Design & Equipment Selection
- ✔ Clean, Organized Installations
- ✔ Financing Available — Pre-qualify in Seconds
- ✔ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing & Rebates Available
Upgrading your heating and cooling system is an important investment. Bison Air offers flexible financing options to help homeowners install high-efficiency HVAC systems with manageable payment plans. Some energy-efficient systems may also qualify for available rebate programs in Ontario.
Learn more about available incentives on our Heat Pump Rebates page.
Our team can help you understand the available financing and rebate options.
Related Heat Pump Services in Toronto
- Ductless mini split systems
- Heat pump heating and cooling systems
- Heat Pump Installation Toronto
- Heat pump services in Toronto
Areas We Serve
Bison Air provides ducted heat pump installation throughout Toronto and the Greater Toronto Area, including:
Toronto| North York | Scarborough | Etobicoke | Vaughan | Markham | Richmond Hill | Aurora | Newmarket | East Gwillimbury | King City | Stouffville | Mississauga | Brampton | Oakville | Milton | Burlington | Barrie | Innisfil | Bradford | Keswick | Orillia | Ajax | Pickering | Whitby | Oshawa | Orangeville
Request a Free Consultation
Our team is available to help you choose the right system, assess your site, confirm thermostat requirements, and provide professional installation across Toronto and the Greater Toronto Area.
📞 Call us: 416-652-4323
🔗 Or fill out the form for a free consultation →
All multi-split condensers must have a minimum of two indoor units installed.
Documents:
Bosch Climate 5000 Series Ductless (R-454B Versions)
📄 One-Way Cassette Installation and Operating Instructions
📄 One-Way Cassette User Manual
📄 One-Way Cassette Service Manual
📄 Four-Way Cassette Installation and Operating Instructions
📄 Four-Way Cassette User Manual
📄 Four-Way Cassette Service Manual
📄 Ducted Type Installation and Operating Instructions
📄 Multi-Zone Ductless Installation and Operating Instructions
📄 Multi-Zone Ductless Service Manual
📄 Wall-Mounted Ductless Installation and Operating Instructions
📄 Wall-Mounted Ductless User Manual
📄 Wall-Mounted Ductless Service Manual
📄 Remote Controller Wall-Mounted Ductless User Manual
📄 Wired Wall Thermostat Installation Instructions
📄 Remote Controller One-Way & Four-Way Cassette User Manual
📄 24 Volt Interface Installation Instructions
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
The price includes complete installation and warranty and is based on standard installation. However, the price may vary depending on the location and any extra work required, such as high voltage wiring, duct modification, crawl space, or any other specific installation condition.
