Mitsubishi Zuba-Central Heat Pump System | R-454B | Toronto & GTA Installation Included
The Mitsubishi Zuba-Central is Canada's most advanced central heat pump system — purpose-built for Canadian winters. Powered by Mitsubishi's H2i Hyper Heat Inverter technology, it delivers 100% heating capacity at -15°C and 80% at -25°C, operating reliably down to -30°C. The Zuba-Central replaces your conventional furnace fan coil and works with your existing ductwork to heat and cool your entire home through a single system — with the efficiency of an inverter heat pump and the reliability of Mitsubishi engineering. Selected by Hydro One as the #1 heat pump in Ontario. Available from 2 to 4 ton. All prices include the complete outdoor and indoor unit, standard professional installation, and up to 20 ft of lineset.
| Feature | Zuba-Central (This Page) | SVZ Multi-Position AHU |
|---|---|---|
| System Type | Dedicated central heat pump — purpose-built for whole-home | Ductless-origin AHU — single-zone ducted |
| Cold Climate | Hyper Heat only — 100% at -15°C, heats to -30°C | Standard or Hyper Heat option |
| Warranty | 10-Year Parts AND Labour | 10-Year Parts, 1-Year Labour |
| Outdoor Unit | PUZ-AK Series (dedicated central) | SUZ-CA / CK / AA / AK Series |
| Best For | Whole-home central replacement — primary heat source | Single ducted zone in a larger system |

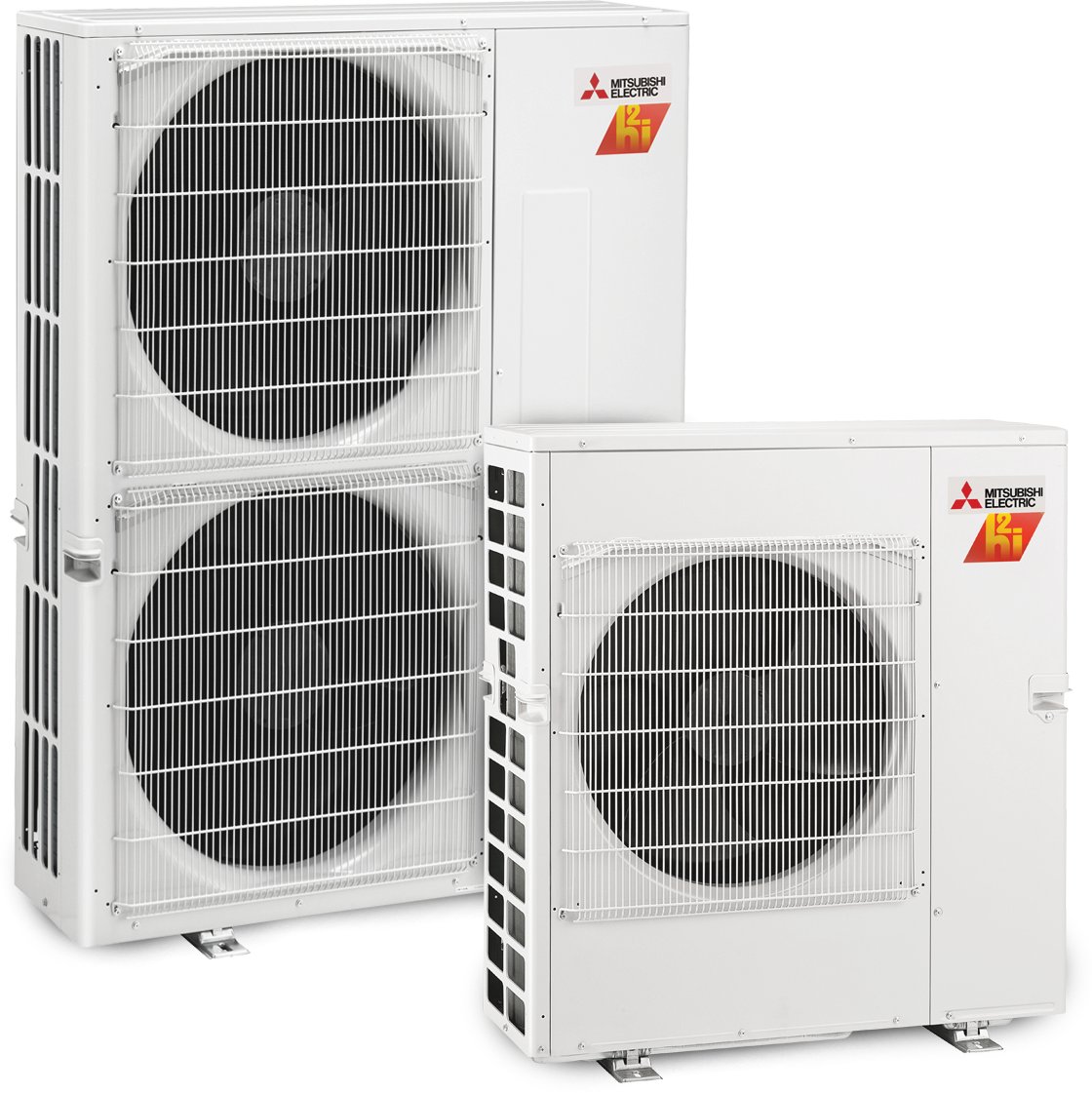

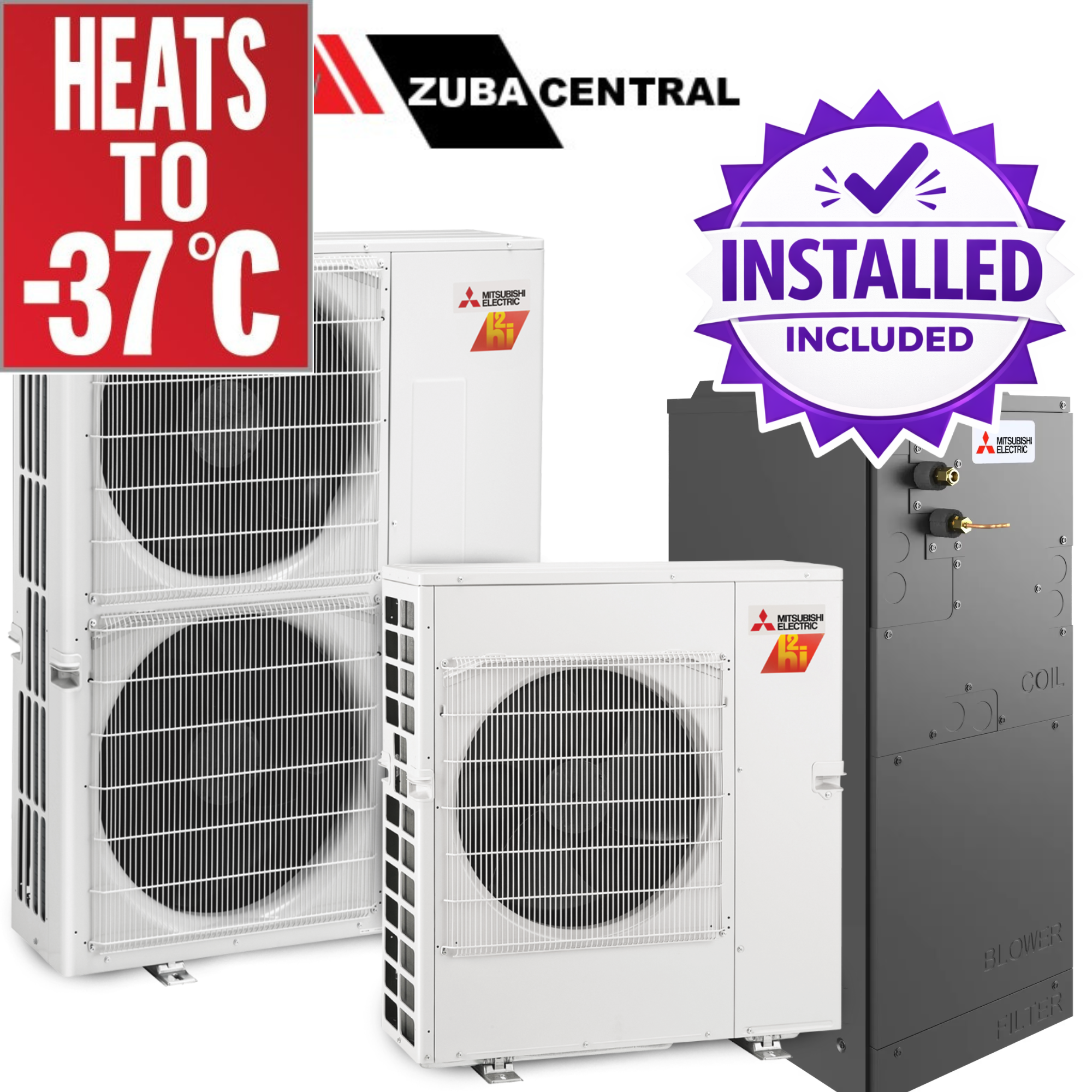

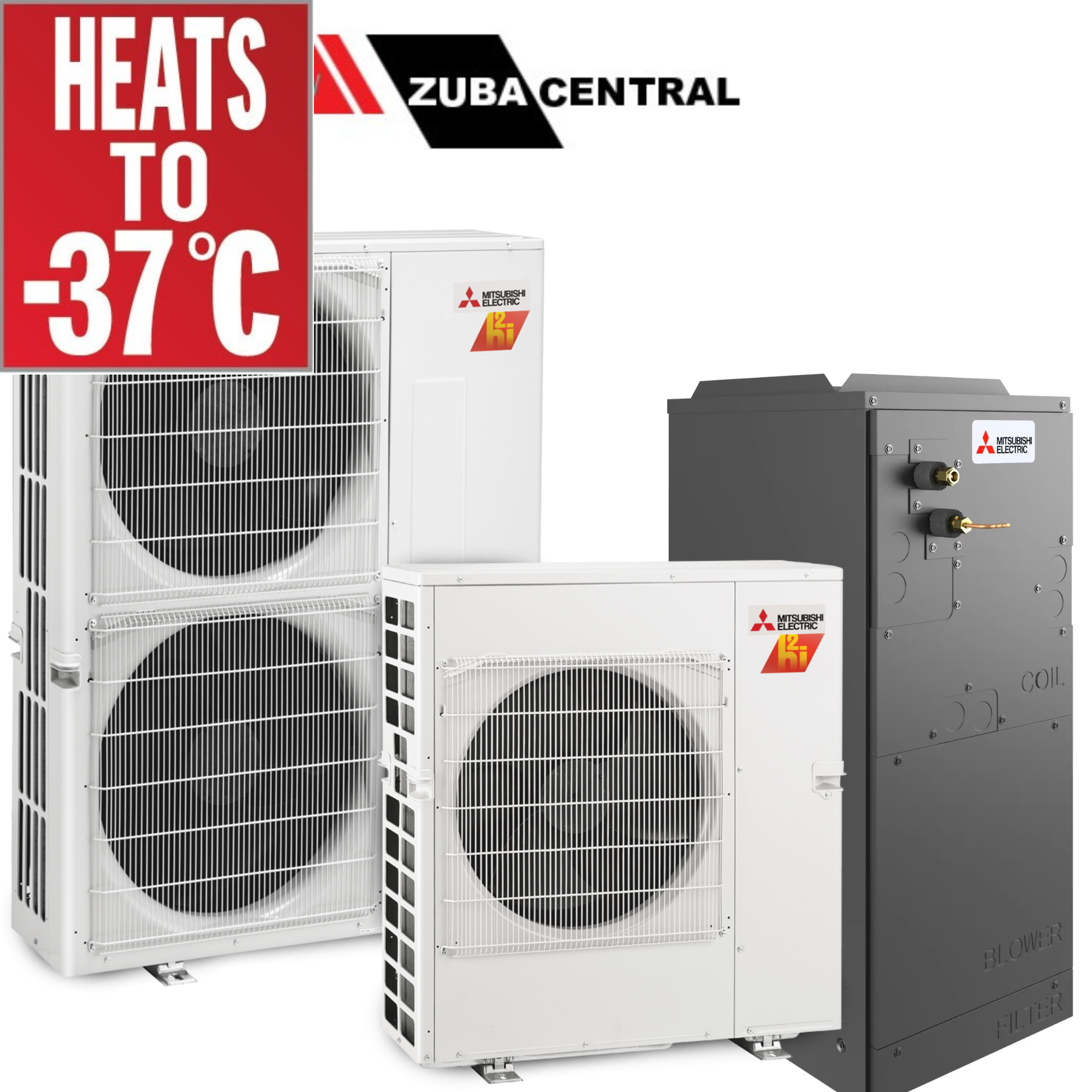

- ✓Mitsubishi PUZ-AK Series Hyper Heat Inverter outdoor condensing unit
- ✓Mitsubishi PVA-AA Series multi-position central air handler indoor unit
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Duct connection to supply and return plenum — duct fabrication quoted separately if required
- ✓System startup, testing, and commissioning
- ✓Mitsubishi product registration (required for warranty)
- ✓H2i Hyper Heat Inverter Technology — Delivers 100% heating capacity at -15°C and 80% at -25°C. Operates reliably down to -30°C — built specifically for Canadian winters
- ✓Whole-Home Ducted Distribution — Works with your existing or new forced-air duct network to heat and cool every room — no visible indoor units in living spaces
- ✓Up to 60% Energy Savings — Inverter-driven heat pump technology significantly reduces heating costs compared to electric baseboard, oil, or older gas systems
- ✓Multi-Position Air Handler — PVA indoor unit installs in upflow, downflow, or horizontal orientation to fit your mechanical room configuration
- ✓10-Year Parts AND Labour Warranty — The only Mitsubishi system in this lineup backed by a full 10-year parts and labour warranty through the Mits Air authorized dealer program
- ✓ENERGY STAR Certified — Meets government high efficiency requirements — eligible for rebate programs
- ✓ERV / HRV Compatible — Supports connection to an Energy Recovery Ventilator or Heat Recovery Ventilator for improved indoor air quality
- ✓Humidifier Compatible — Supports whole-home humidifier connection
- ✓Optional Auxiliary Electric Heat — Electric heat kits available from 8KW to 17.5KW for supplemental heating — must be specified at time of order
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Proper sizing requires a Manual J load calculation. Oversizing and undersizing both reduce efficiency and comfort. Contact Bison Air for a proper assessment before ordering.
The PVA indoor air handler installs in upflow, downflow, or horizontal orientation. The PUZ-AK outdoor unit must be elevated a minimum of 18" off grade or roof to ensure proper wintertime defrost cycle operation.
Auxiliary electric heaters are not included in the system price and are quoted separately based on the indoor unit size. Field-installed electric heat kits for supplemental heating backup. All require 240V/1/60. Must be specified and ordered separately at time of unit purchase — contact Bison Air for a quote. Electric Heaters include Single Point Termination Kit. SPTB1 Terminal Block Kit required when connecting to electric backup heat.
| Part No. | Capacity | Compatible Indoor Units |
|---|---|---|
| EH08-MPA-MB | 8 KW | PVA-AA24 / PVA-AA30 |
| EH10-MPA-MB | 10 KW | PVA-AA24 / PVA-AA30 |
| EH10-MPA-LB | 10 KW | PVA-AA36 / PVA-AA42 / PVA-AA48 |
| EH15-MPAS-LB | 15 KW | PVA-AA36 / PVA-AA42 / PVA-AA48 |
| EH17-MPAS-LB | 17.5 KW | PVA-AA36 / PVA-AA42 / PVA-AA48 |
A controller is required — not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for central ducted applications
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration (Google Home, Amazon Alexa)
- ✓Thermostat Interface Module — RMF-CA100-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat (Honeywell, Ecobee, Nest), thermostat not included
- ✓Humidifier Connection Kit — CN24RELAY-KIT-CM3
- ✓ERV / HRV Connection Kit — PAC-YU25HT-G × 2 + PAM-4 Relay × 1
- ✓Site assessment, load calculation review, and mechanical room evaluation
- ✓Indoor PVA air handler installation in correct orientation
- ✓Placement and mounting of outdoor PUZ-AK unit (min 18" off grade or roof)
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Duct connection to supply and return plenum — duct fabrication quoted separately if required
- ✓Electrical connection (dedicated circuit required)
- ✓Vacuum, leak test, and full system commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for warranty activation
The Zuba-Central carries the most comprehensive warranty available on any Mitsubishi heat pump system — covering both parts and labour for a full 10 years:
- ✓5-Year Parts Warranty — Mitsubishi manufacturer warranty
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty
- ✓6th–10th Year Parts Extension — Covered at no additional cost to homeowner
- ✓2nd–10th Year Labour Warranty — Covered at no additional cost to homeowner
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship in year 1
Product registration is required to activate warranty. Bison Air handles registration at the time of installation.
- ✓TSSA Certified HVAC Contractor
- ✓Fully Licensed & Insured HVAC Technicians
- ✓Registered HRSP Heat Pump Rebate Contractor — we handle rebate paperwork for eligible systems
- ✓Standard Installation Included — No Hidden Fees
- ✓Up to 20 ft Lineset Included with every installation
- ✓Professional Load Calculation & System Design
- ✓Clean, Organized Installations
- ✓Financing Available — Pre-qualify in seconds, no upfront payment required
The Zuba-Central is ENERGY STAR certified and may qualify for government rebate programs available to Ontario homeowners. As a Registered HRSP Rebate Contractor, Bison Air handles the paperwork so you don't have to.
- ✓Up to $7,500 in available rebates through Canada Greener Homes and HRSP programs
- ✓Financing available — pre-qualify in seconds, no upfront payment required
