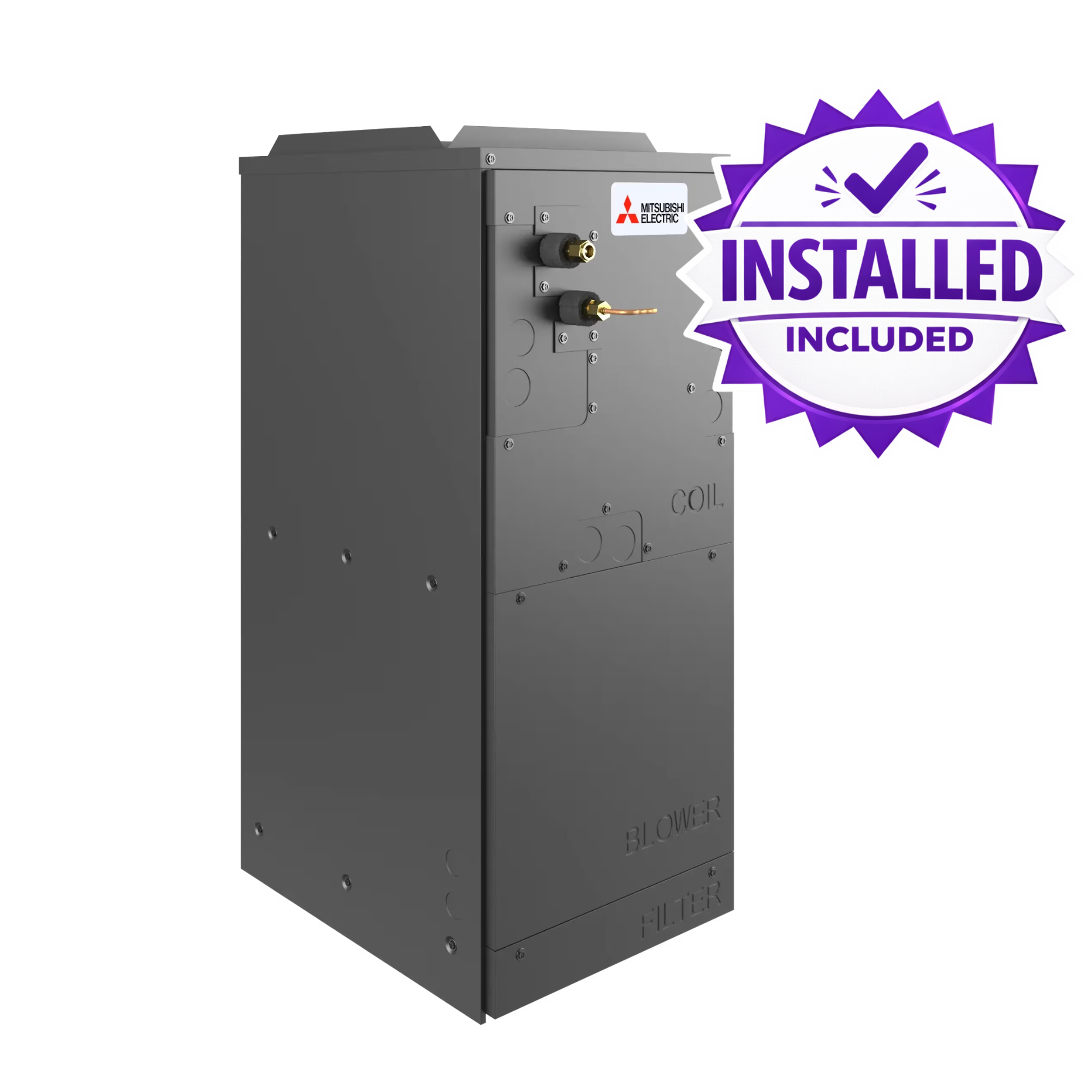

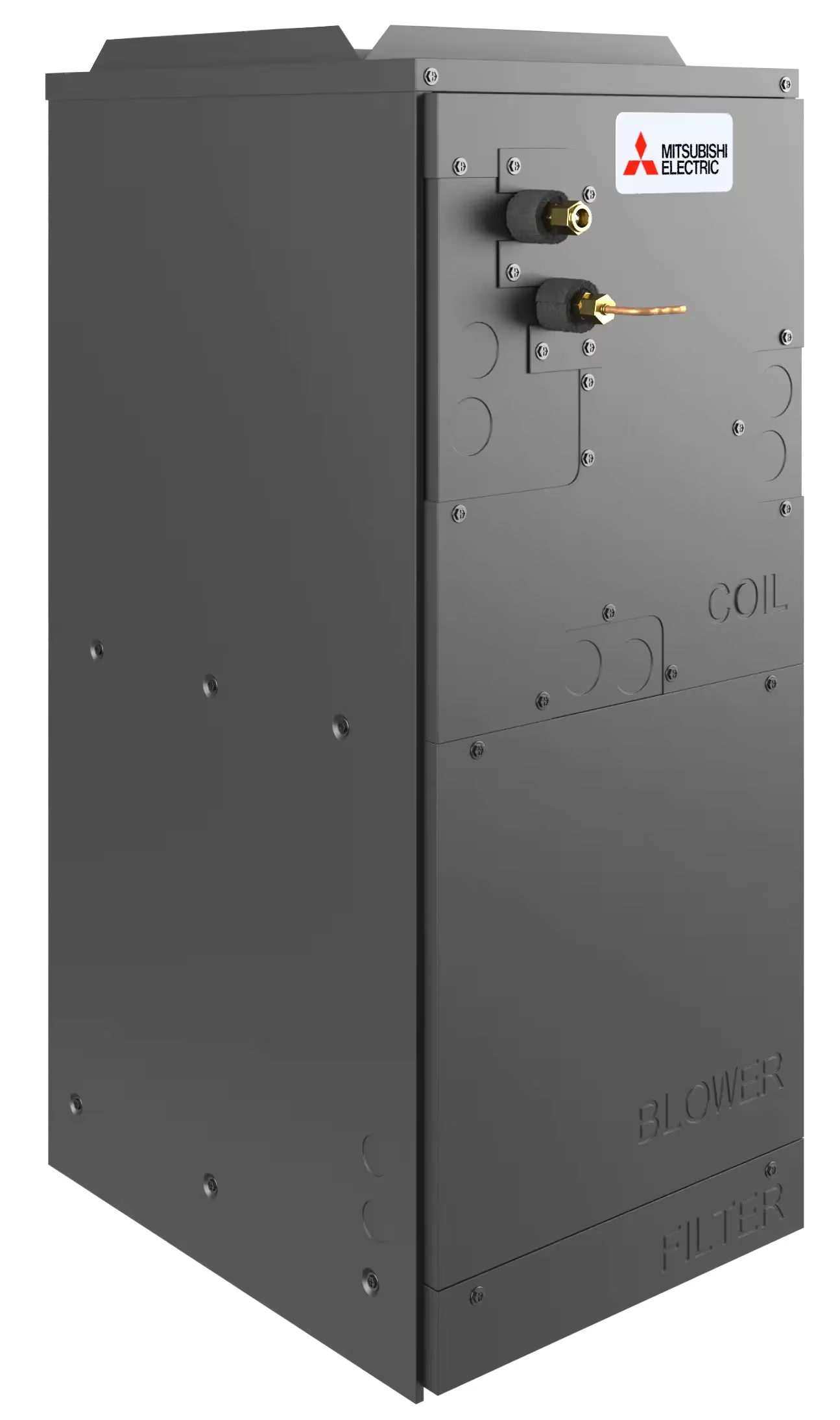

Mitsubishi – Mr. Slim SVZ Series Multi-Position Air Handler Indoor Unit | R-454B | Toronto & GTA Installation Included
The Mitsubishi Mr. Slim SVZ Series Multi-Position Air Handler is a full-home ducted indoor unit designed to work as the primary air handler in a Mitsubishi multi-zone system. Unlike individual zone indoor units, the SVZ serves your entire home's duct network — delivering heating and cooling through your existing or new forced-air ductwork just like a conventional furnace fan coil, but powered by the efficiency of a Mitsubishi inverter heat pump. Installs in multiple orientations — upflow, downflow, or horizontal — to fit your mechanical room configuration. Available in 12,000 to 36,000 BTU. This page is for the indoor unit and installation only. A compatible outdoor unit must be purchased separately. Only one SVZ unit can be connected per MXZ outdoor unit. A controller is also required and is not included. Price includes up to 20 ft of lineset with standard professional installation.
- Maximum one SVZ unit per MXZ outdoor unit. The SVZ cannot be combined with other SVZ units on the same system. If your project requires multiple air handler zones, contact Bison Air to discuss the right configuration.
- A compatible MXZ outdoor unit is required — MXZ Standard or MXZ Hyper Heat series (sold separately)
- A controller is required and not included — a wired controller must be ordered separately — see options below
- ✓Mitsubishi SVZ-AP Series multi-position air handler indoor unit
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Connection to compatible MXZ outdoor unit and full system commissioning
- ✓Mitsubishi product registration (required for warranty)

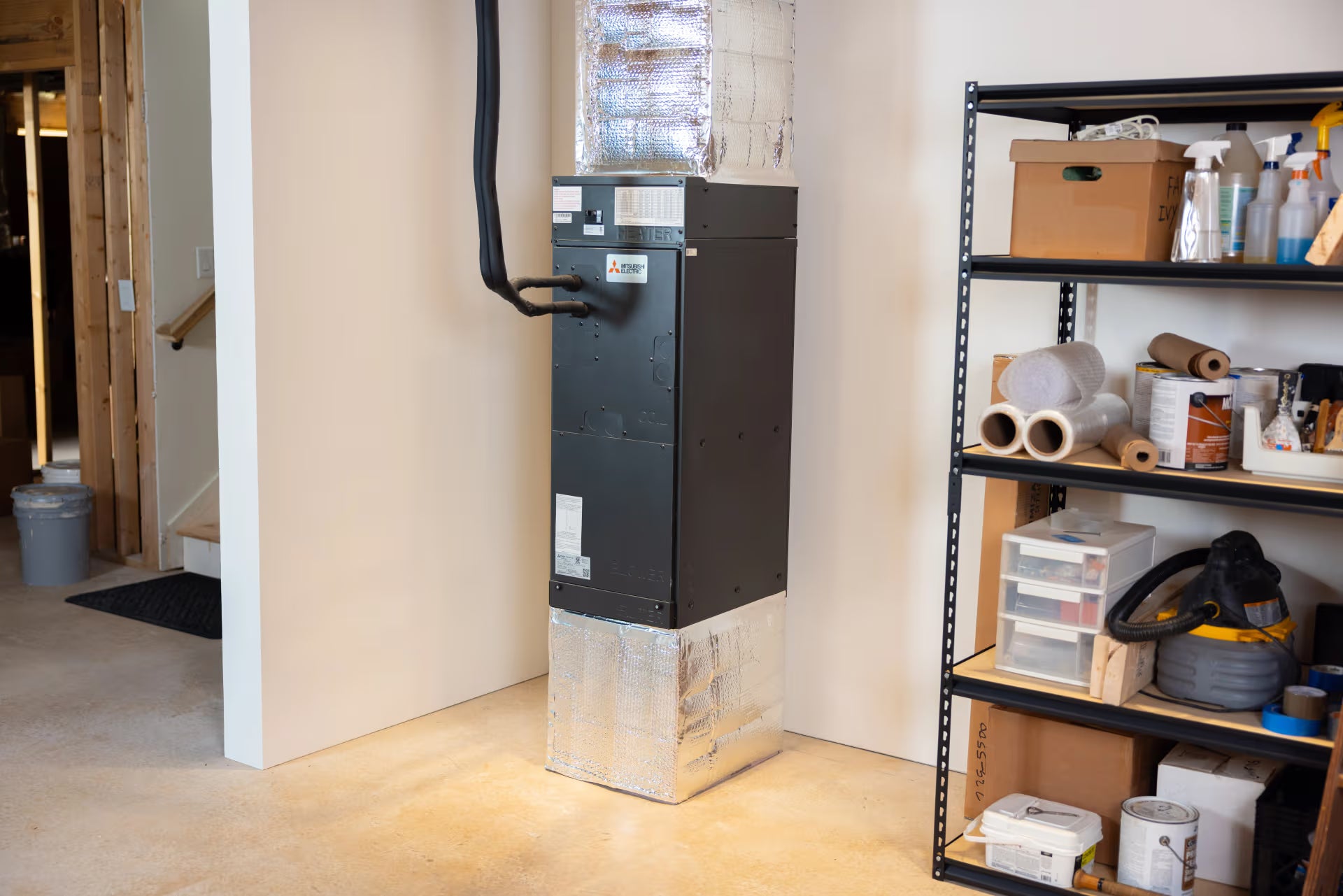

- ✓Multi-Position Installation — Installs in upflow, downflow, or horizontal orientation to fit virtually any mechanical room or utility space configuration
- ✓Whole-Home Ducted Distribution — Works with your existing or new forced-air duct network to deliver heating and cooling to every room in the home — no visible indoor units required
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant meeting future environmental standards
- ✓ERV / HRV Compatible — Supports connection to an Energy Recovery Ventilator or Heat Recovery Ventilator for fresh air exchange and improved indoor air quality
- ✓Humidifier Compatible — Supports whole-home humidifier connection for improved winter comfort
- ✓Optional Auxiliary Electric Heat — Compatible with built-in electric heat kits (3KW, 5KW, 8KW, or 10KW) for supplemental heating — must be specified at time of order
- ✓Wi-Fi Enabled — Compatible with the Mitsubishi Comfort App via optional wireless adapter PAC-USWHS002-WF-2 (sold separately)
- ✓Wide Capacity Range — Available from 12,000 to 36,000 BTU to match your home's heating and cooling load
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
The SVZ Series supports optional built-in electric heat kits for supplemental heating. All residential applications require 240V/1/60 heaters. Must be specified at time of unit order — contact Bison Air.
| Heat Kit | Capacity | Compatible Models |
|---|---|---|
| EH03-SVZ-S | 3 KW | SVZ-AP12, AP18, AP24 |
| EH05-SVZ-S | 5 KW | SVZ-AP12, AP18, AP24 |
| EH08-SVZ-S | 8 KW | SVZ-AP18, AP24 |
| EH05-SVZ-M | 5 KW | SVZ-AP30, AP36 |
| EH08-SVZ-M | 8 KW | SVZ-AP30, AP36 |
| EH10-SVZ-M | 10 KW | SVZ-AP30, AP36 |
Actual sizing depends on insulation, ceiling height, duct design, and local climate. Contact Bison Air for a proper load calculation before ordering.
Dimensions vary by BTU size. Unit installs in upflow, downflow, or horizontal orientation. Always verify mechanical room clearance requirements with your installer before finalizing placement.
A controller is required for this unit — it is not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for air handler applications requiring a fixed wall thermostat-style controller
- ✓Wi-Fi Adapter for Comfort App — PAC-USWHS002-WF-2 — smartphone control via the Mitsubishi Comfort App
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration (Google Home, Amazon Alexa)
- ✓Thermostat Interface Module — RMF-CA100-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat (Honeywell, Ecobee, Nest), thermostat not included
- ✓ERV / Humidifier Connection Kit — CN24RELAY-KIT-CM3 — for connecting an ERV, HRV, or humidifier to the system
- ✓Site assessment and mechanical room evaluation for unit placement and orientation
- ✓Air handler installation in upflow, downflow, or horizontal orientation as required
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Duct connection to supply and return plenum — duct fabrication quoted separately if required
- ✓Connection to compatible MXZ outdoor unit
- ✓Condensate drain connection and testing
- ✓System startup, leak test, and commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for warranty
- ✓10-Year Parts Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship on all Bison Air installations
Product registration with Mitsubishi is required to activate the 10-year warranty. Bison Air handles registration at the time of installation.
- ✓TSSA Certified HVAC Contractor
- ✓Fully Licensed & Insured HVAC Technicians
- ✓Registered HRSP Heat Pump Rebate Contractor — we handle rebate paperwork for eligible systems
- ✓Standard Installation Included — No Hidden Fees
- ✓Up to 20 ft Lineset Included with every indoor unit installation
- ✓Professional System Design & Equipment Selection
- ✓Clean, Organized Installations
- ✓Financing Available — Pre-qualify in seconds, no upfront payment required
Your complete Mitsubishi multi-zone system may qualify for government rebate programs available to Ontario homeowners. Bison Air is a Registered HRSP Rebate Contractor — we handle the paperwork so you don't have to.
- ✓Up to $7,500 in available rebates through Canada Greener Homes and HRSP programs
- ✓Financing available — pre-qualify in seconds, no upfront payment required
