Mitsubishi – Mr. Slim SLZ Series 4-Way Ceiling Cassette Indoor Unit | R-454B | Toronto & GTA Installation Included

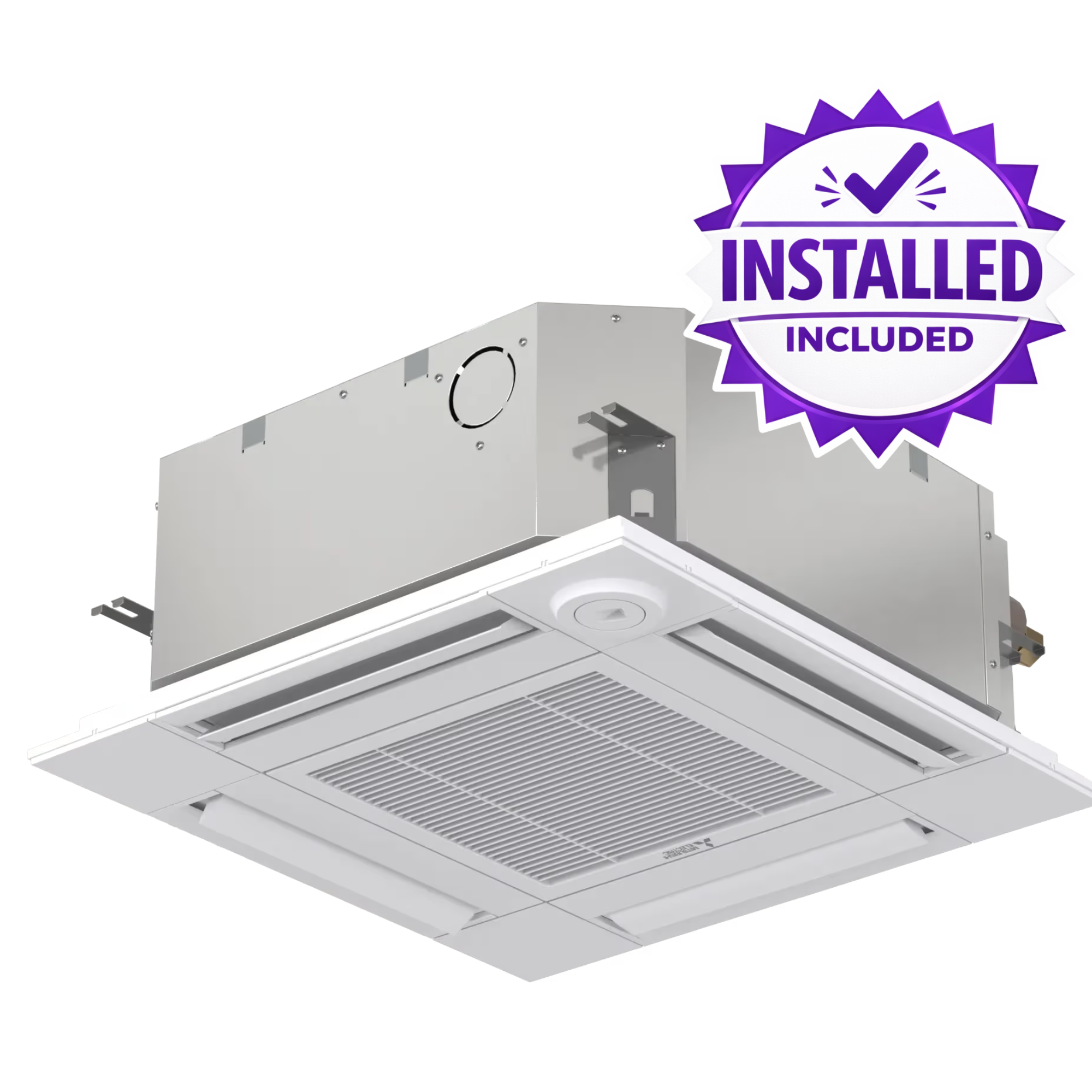

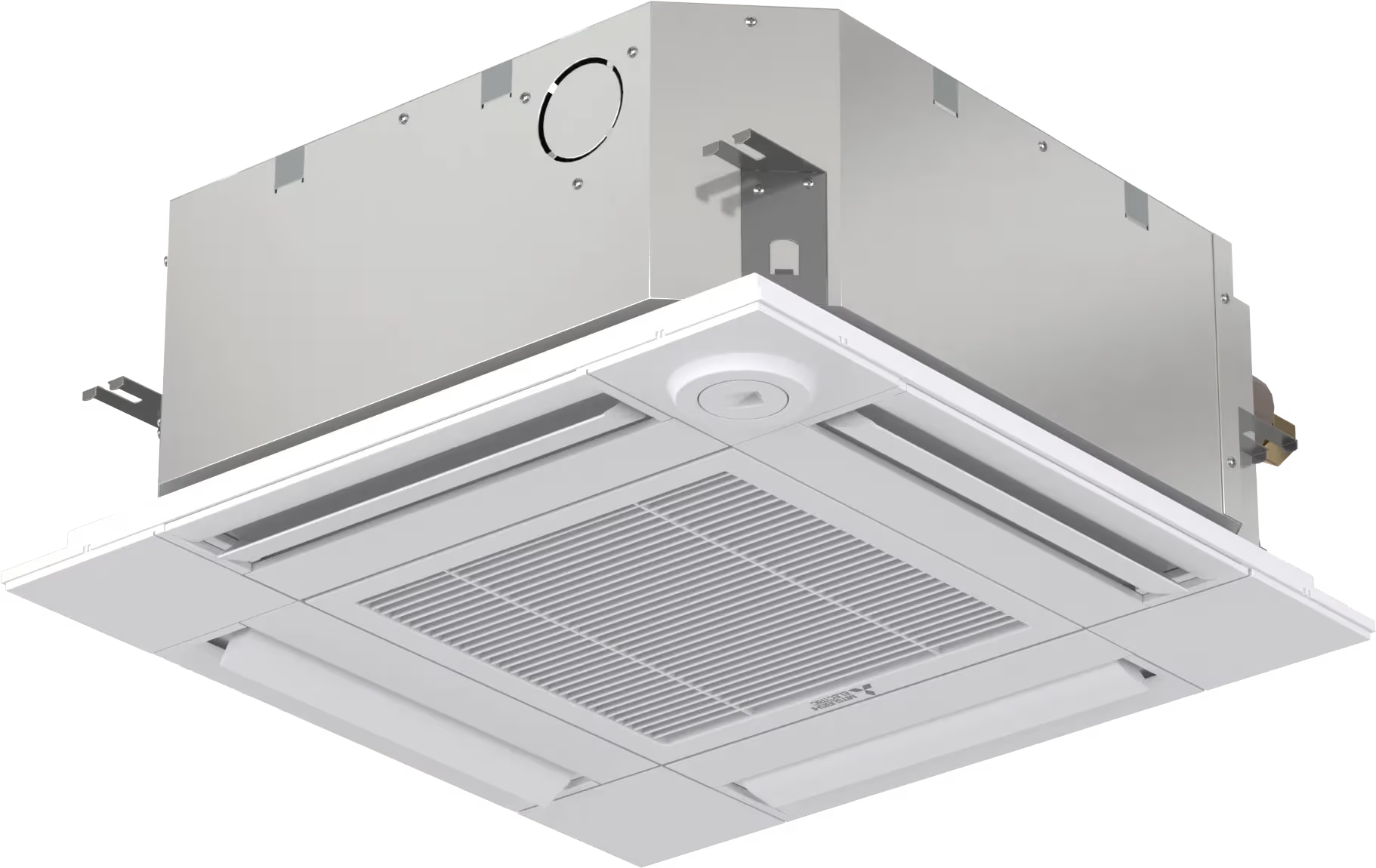

The Mitsubishi Mr. Slim SLZ Series 4-Way Ceiling Cassette delivers 360° airflow distribution from a single flush-mounted ceiling unit — the cleanest, most even heat pump solution available for open-concept rooms, commercial spaces, and any application where appearance and airflow coverage matter. Installed flush with the finished ceiling with only the decorative grille visible, the SLZ circulates conditioned air in four directions simultaneously for consistent comfort across the entire room. Available in 8,400 to 17,700 BTU. This page is for the indoor unit and installation only. A compatible outdoor unit must be purchased separately. A controller is also required and is not included. Decorative grille (SLP-18FAEU) and up to 20 ft of lineset are included with standard professional installation.
This page covers the SLZ Series indoor cassette unit and its installation only. To complete your system you also need:
- A compatible MXZ outdoor unit — MXZ Standard or MXZ Hyper Heat series (sold separately). Note: SLZ units connect directly to MXZ outdoor units only — not compatible with PUMY branch box configurations
- A controller — SLZ units do not include a remote controller. A wired controller must be ordered separately — see options below
- ✓Mitsubishi SLZ-AF Series 4-way ceiling cassette indoor unit
- ✓Decorative grille — SLP-18FAEU (included in price, installed by Bison Air)
- ✓Standard professional installation by TSSA Certified technicians
- ✓Up to 20 ft of lineset included — longer runs quoted separately
- ✓Connection to compatible outdoor unit and full system commissioning
- ✓Mitsubishi product registration (required for warranty)
- ✓4-Way 360° Airflow Distribution — Four directional vanes distribute conditioned air in all directions simultaneously, eliminating hot and cold spots and providing even comfort across the entire room

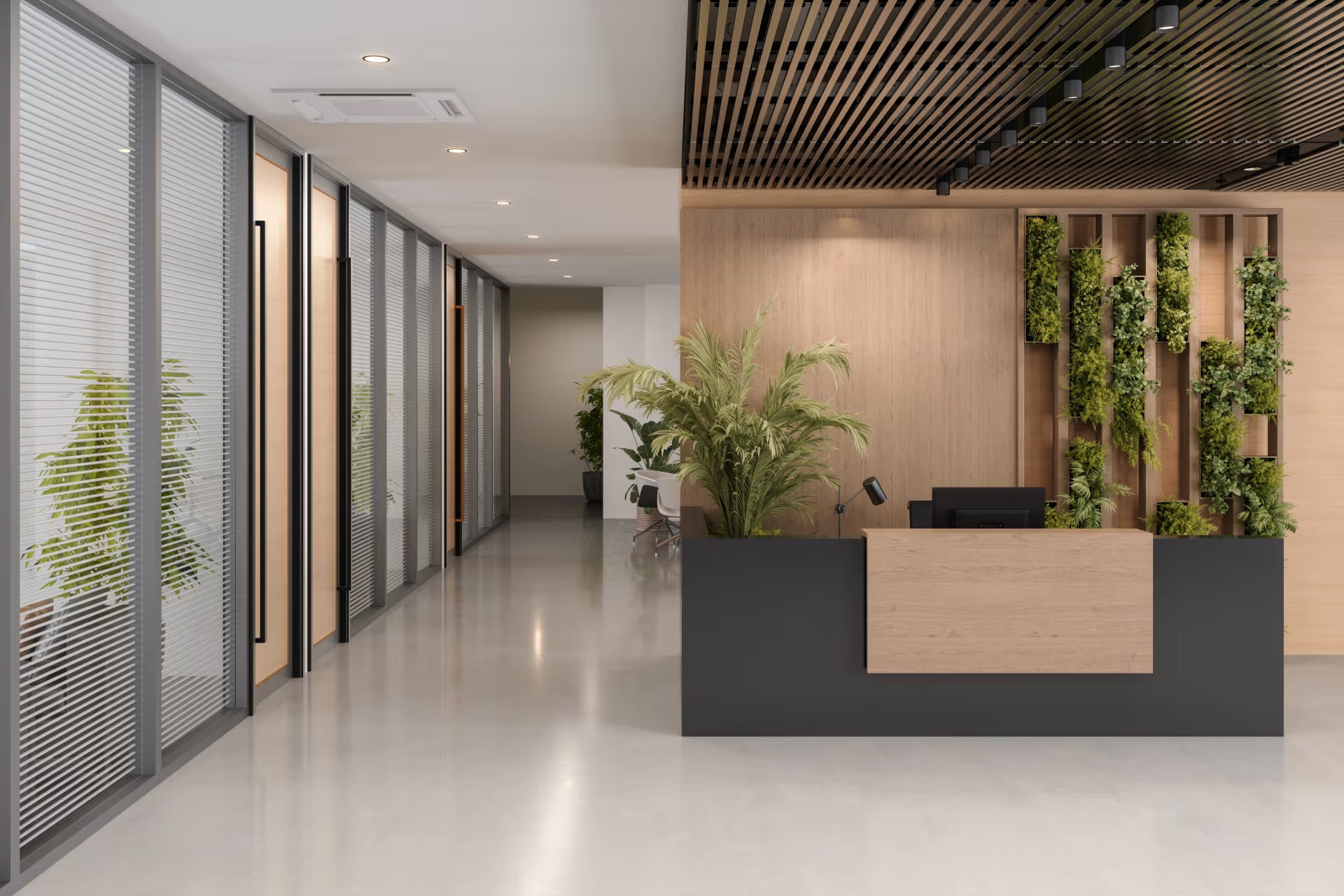

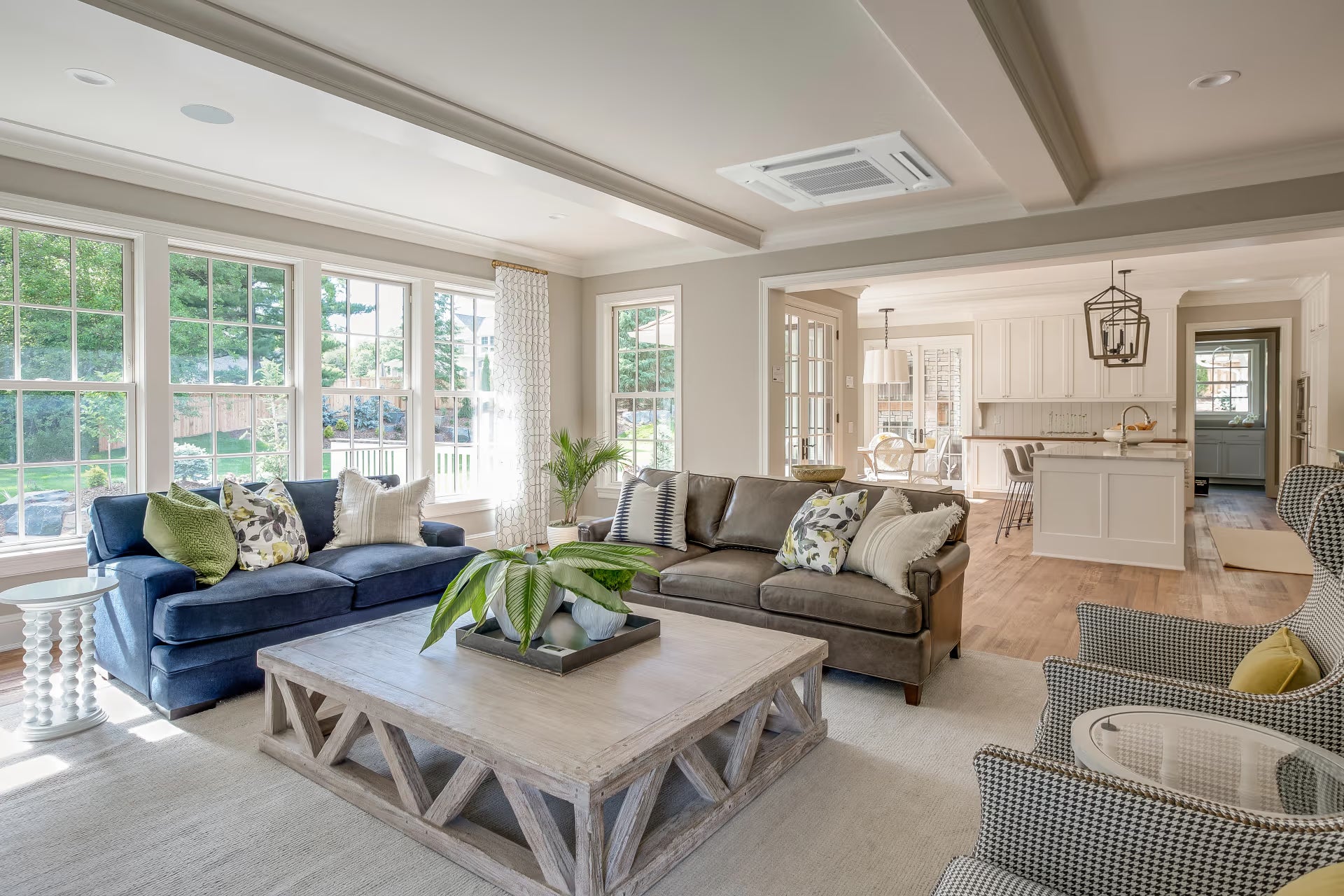

- ✓Flush Ceiling Installation — Only the slim decorative grille is visible in the finished ceiling — no bulky housing, no visible equipment. Ideal for open-concept rooms, dining areas, commercial spaces, and any room where appearance matters

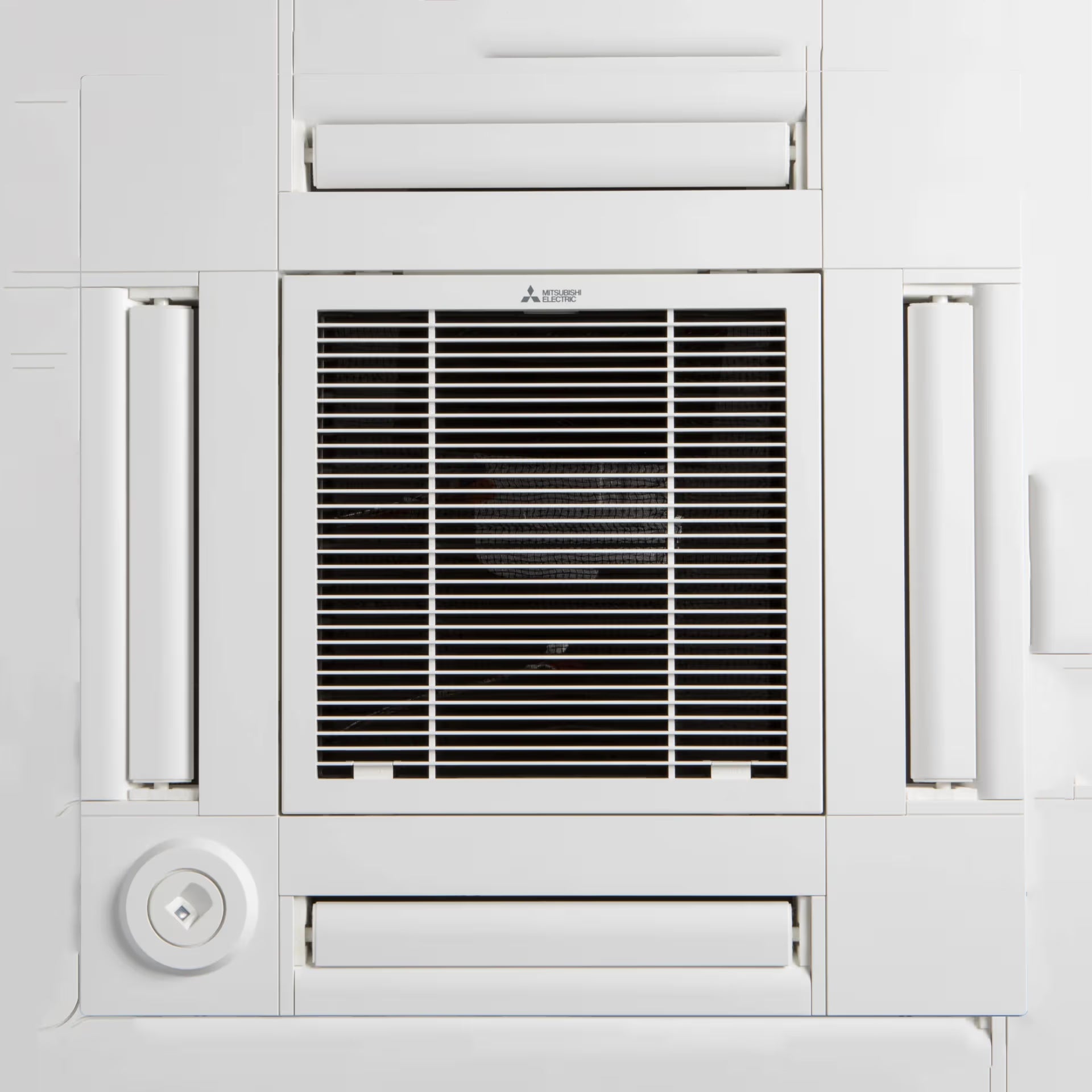

- ✓Decorative Grille Included — SLP-18FAEU grille included in price. Two sizes: 25⅝" × 25⅝" for 9K and 12K units, 37" × 37" for 15K and 18K units
- ✓R-454B Refrigerant — Low global warming potential, next-generation refrigerant meeting future environmental standards
- ✓Wi-Fi Enabled — Compatible with the Mitsubishi Comfort App via optional wireless adapter PAC-USWHS002-WF-2 (sold separately)
- ✓Auto Swing Vanes — Motorized vanes automatically adjust in all four directions for optimal airflow coverage
- ✓Built-in Condensate Pump — Internal drain pump handles condensate removal without relying on gravity drain — greater flexibility for ceiling installation locations
- ✓Whisper-Quiet Operation — Low noise output suitable for bedrooms, offices, restaurants, and retail spaces
- ✓208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Sizing is a guideline. Contact Bison Air for a proper load calculation.
Grille size: 25⅝" × 25⅝" for 9K and 12K units — 37" × 37" for 15K and 18K units. Always verify ceiling cavity clearance with your installer before finalizing placement.
A controller is required for this unit — it is not included. Choose one of the following:
- ✓Mitsubishi Hard Wired Controller — PAR-42MAACAB — recommended for cassette applications requiring a fixed wall controller
- ✓Wi-Fi Adapter for Comfort App — PAC-USWHS002-WF-2 — smartphone control via the Mitsubishi Comfort App
- ✓Aidoo Wi-Fi Controller — AZAI6WSCMEL — third-party smart home integration (Google Home, Amazon Alexa)
- ✓Auxiliary Heat Source Control — MAC-3341F-E Interface + PAM-4 Relay + P55R-A12 Power Supply
- ✓Thermostat Interface Module — RMF-CA200-V2 + VPL24-210 Transformer — connects to any North American 24V thermostat (Honeywell, Ecobee, Nest), thermostat not included
- ✓Site assessment and ceiling cavity evaluation for cassette placement
- ✓Ceiling cassette mounting and grille installation
- ✓Up to 20 ft of lineset included — additional length quoted separately
- ✓Connection to compatible MXZ outdoor unit
- ✓Condensate drain connection and testing
- ✓System startup, leak test, and commissioning
- ✓Controller installation and setup (controller sold separately)
- ✓Mitsubishi product registration for warranty
- ✓10-Year Parts Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓10-Year Compressor Warranty — Mitsubishi manufacturer warranty on registered equipment
- ✓1-Year Bison Air Labour Warranty — Covers installation workmanship on all Bison Air installations
Product registration with Mitsubishi is required to activate the 10-year warranty. Bison Air handles registration at the time of installation.
