Bosch IDS All-Electric Heat Pump System with Air Handler – 2–5 Ton
See your exact payment → · How financing works

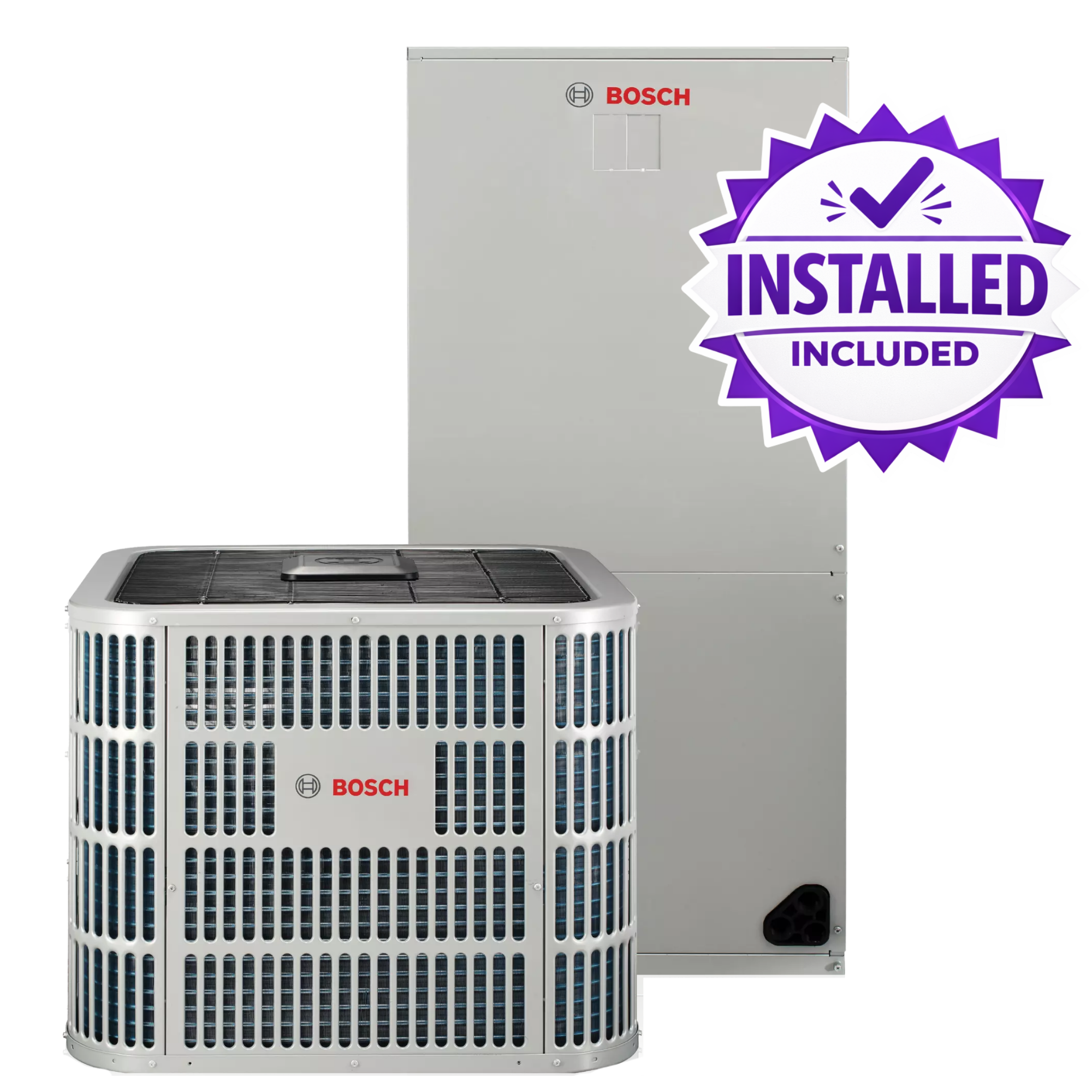

The Bosch IDS all-electric system pairs a Bosch inverter heat pump with a matched BVA variable-speed air handler, so one ducted system heats and cools your whole home with no gas. The inverter compressor ramps up and down to match the load instead of switching on and off, and the system keeps heating down to −20 °C (−4 °F). It runs on R-410A refrigerant. Bison Air is an authorized Bosch dealer, and every price includes standard installation in Toronto and the GTA.
- ✓ Standard installation included: outdoor unit and air handler
- ✓ Up to 20 SEER2 and 9.5 HSPF2 (2- and 3-ton systems)
- ✓ Heats down to −20 °C (−4 °F)
- ✓ 10-year parts and compressor (Bosch, with registration), 1-year labour (Bison Air)
- ✓ Financing available, with no upfront payment options
📏 Choose Your System Size
| Size | Outdoor unit | Air handler | Heating at 47 °F (8 °C) | Heating at 17 °F (−8 °C) | SEER2 / HSPF2 |
|---|---|---|---|---|---|
| 2 Ton | BOVC-36HDN1-M20G | BVA-24WN1-M20 | 24,200 BTU/h | 22,900 BTU/h | 20 / 9.5 |
| 3 Ton | BOVC-36HDN1-M20G | BVA-36WN1-M20 | 31,500 BTU/h | 25,800 BTU/h | 19 / 9.5 |
| 4 Ton | BOVA-60HDN1-M20G | BVA-48WN1-M20 | 48,000 BTU/h (nominal) | Ask us | 20 SEER (rated) |
| 5 Ton | BOVA-60HDN1-M20G | BVA-60WN1-M20 | 56,000 BTU/h (nominal) | Ask us | 20 SEER (rated) |
2- and 3-ton figures are from the Bosch BOVC20 product specification at rated airflow. 4- and 5-ton figures are Bosch nominal ratings; detailed low-temperature data is not published in the current Bosch document, so we confirm it with Bosch for your quote. We size from a heat-loss calculation, not square footage alone.
📦 What's Included
- ✓ Bosch IDS inverter heat pump (outdoor unit)
- ✓ Bosch BVA variable-speed air handler with ECM blower, upflow or horizontal (field-convertible to downflow or horizontal left)
- ✓ Standard installation as listed below
💡 Electric backup heat is not included. The BVA air handler takes a Bosch EHK electric heat kit: 5, 7.5 or 10 kW on the 2-ton, up to 15 kW on the 3-ton, and up to 20 kW on the 4- and 5-ton. We size the kit to your home and quote it separately.
❄️ Key Features
- ✓ Inverter compressor that modulates output for steady temperatures and lower energy use
- ✓ Variable-speed ECM blower in the BVA air handler for even airflow and better humidity control
- ✓ Works with most standard 24 V heat pump thermostats
- ✓ Heats down to −20 °C (−4 °F) outdoors
- ✓ Quiet outdoor unit: from 56 dB(A) at low load
- ✓ One system for heating and cooling: replaces both your furnace and your air conditioner
📋 Technical Specifications
| Outdoor unit | BOVC-36HDN1-M20G (2–3 ton) | BOVA-60HDN1-M20G (4–5 ton) |
|---|---|---|
| Refrigerant | R-410A | R-410A |
| Electrical | 208/230 V, 1 ph, 60 Hz | 208/230 V, 1 ph, 60 Hz |
| Min. circuit ampacity / max. breaker | 26.3 A / 45 A | 38.8 A / 60 A |
| Sound (low / full load) | 56 / 77 dB(A) | 60 / 79 dB(A) |
| Lowest heating temperature | −20 °C (−4 °F) | −20 °C (−4 °F) |
| Dimensions (W × D × H) | 29-1/8 × 29-1/8 × 24-15/16 in | 29-1/8 × 29-1/8 × 33-3/16 in |
| Air handler | BVA-24 | BVA-36 | BVA-48 | BVA-60 |
|---|---|---|---|---|
| Blower motor | 1/3 hp ECM | 1/2 hp ECM | 3/4 hp ECM | 3/4 hp ECM |
| High-stage airflow (0.5 in. w.c.) | 748 CFM | 996 CFM | 1,469 CFM | 1,666 CFM |
| Min. circuit ampacity (no heat kit) | 3.3 A | 3.8 A | 5.7 A | 5.7 A |
| Electric heat kit options | 5, 7.5, 10 kW | 5–15 kW | 5–20 kW | 5–20 kW |
| Dimensions (D × W × H) | 21-5/8 × 19-5/8 × 46-1/2 in | 21-5/8 × 19-5/8 × 46-1/2 in | 24 × 22 × 54-1/2 in | 24 × 22 × 54-1/2 in |
| Filter size | 18 × 20 in | 18 × 20 in | 20 × 22 in | 20 × 22 in |
Electrical check: the outdoor unit needs its own 240 V circuit (45 A breaker on the 2–3 ton, 60 A on the 4–5 ton), and the air handler and any heat kit need their own circuit. We check your panel before quoting. Source: Bosch product specifications (see documents).
Documents: Bosch BOVC20 heat pump specification (03/2024) · Bosch BOVA20 heat pump specification (02/2023) · Bosch BVA20 air handler specification (04/2023)
🔧 What Standard Installation Includes
- ✓ Air handler set in place and connected to your existing ductwork
- ✓ Outdoor unit set in place
- ✓ Refrigerant line set, condensate drain and communication wiring up to 20 ft
- ✓ Electrical connection to the outdoor unit and air handler
- ✓ Vacuum, leak test, startup and commissioning
- ✓ Thermostat connected and tested
- ✓ 1-year labour warranty and warranty registration
Quoted as extras when needed: electric heat kit, wall bracket or snow stand for the outdoor unit, line set or wiring beyond 20 ft (charged per foot), plenum or ductwork changes, removal of old equipment, and electrical panel or circuit upgrades. We confirm ductwork and electrical capacity before the job, and every extra is quoted in writing before work starts.
🛡️ Warranty
- ✓ Compressor and parts: 10 years (Bosch, residential, with warranty registration)
- ✓ Labour: 1 year from Bison Air, included
- ✓ Optional 10-year labour warranty on the outdoor unit: ask us for details
💰 Heat Pump Rebates & Financing
A ducted heat pump that replaces gas heating may qualify for Ontario's Home Renovation Savings heat pump rebate, subject to program eligibility. As a registered HRSP contractor, we confirm the exact model combination is on the program's eligible list before you buy, and we help with the paperwork. See Heat Pump Rebates Toronto.
Prefer monthly payments? HVAC financing through Financeit: pre-qualify in seconds without affecting your credit score.
🏆 Why Buy Your Bosch from Bison Air
- ✓ Authorized Bosch dealer
- ✓ TSSA Certified HVAC Contractor
- ✓ Fully Licensed & Insured HVAC Technicians
- ✓ Registered HRSP Heat Pump Rebate Contractor
- ✓ Standard Installation Included – No Hidden Fees
- ✓ Professional System Design & Equipment Selection
- ✓ Clean, Organized Installations
- ✓ 1-year labour warranty on every installation
- ✓ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
