Panasonic All-Electric Heat Pump System with Air Handler (R454B)1.5–5 Ton – INTERIOS Ducted HVAC | GTA Installation Included
See your exact payment → · How financing works

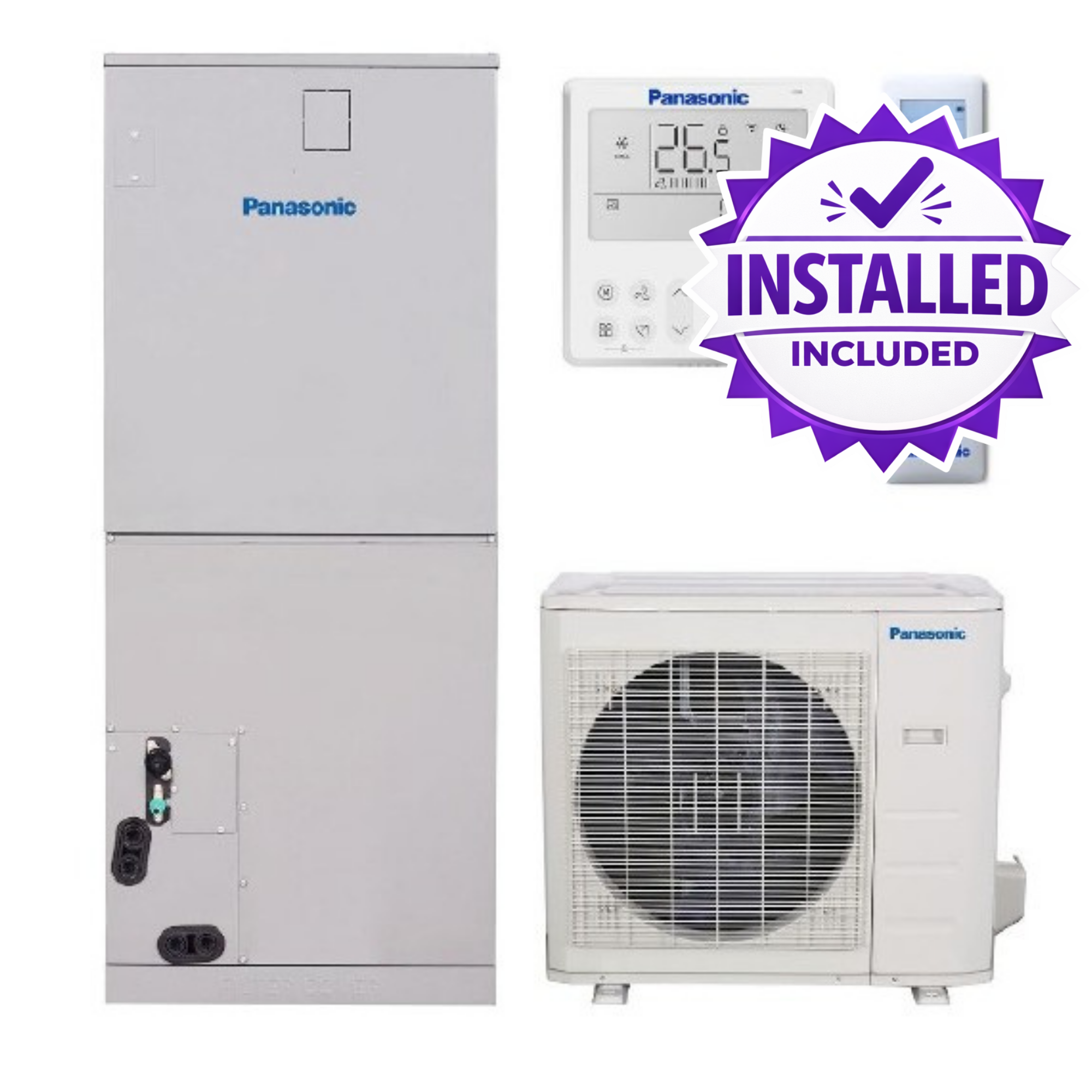

The Panasonic INTERIOS all-electric system pairs a cold-climate inverter heat pump with a matched Panasonic air handler, so one ducted system heats and cools the whole home with no gas. It runs on R454B refrigerant, keeps heating down to −30 °C (−22 °F), and is ENERGY STAR® Cold Climate certified. It suits a full HVAC replacement, a new build, or a home moving off gas. Bison Air is an authorized Panasonic dealer, and every price includes standard installation in Toronto and the GTA.
- ✓ Standard installation included in every price
- ✓ Heats down to −30 °C (−22 °F), ENERGY STAR® 6.1 Cold Climate certified
- ✓ Up to 19.0 SEER2 and 10.2 HSPF2 (Region IV)
- ✓ Heat pump rebate eligible as a qualifying cold-climate system, see heat pump rebates
- ✓ 10-year parts and 1-year labour warranty
- ✓ Financing available, with no upfront payment options
📏 Choose Your System Size
| Size | Outdoor / air handler model | Rated cooling (BTU/h) | Rated heating at 8 °C (BTU/h) | Max heating at −15 °C (BTU/h) | SEER2 / HSPF2 (Region IV) |
|---|---|---|---|---|---|
| 1.5 Ton | CU-HM18BAHU / CS-HM18BAHU | 18,000 | 19,000 | 18,000 | 19 / 9.7 |
| 2 Ton | CU-HM24BAHU / CS-HM24BAHU | 24,000 | 23,000 | 21,600 | 18.3 / 10 |
| 2.5 Ton | CU-HM30BAHU / CS-HM30BAHU | 30,000 | 34,000 | 32,600 | 16.8 / 10 |
| 3 Ton | CU-HM36BAHU / CS-HM36BAHU | 36,000 | 37,000 | 39,000 | 17.4 / 10.2 |
| 4 Ton | CU-HM48BAHU / CS-HM48BAHU | 48,000 | 50,000 | 46,000 | 16.5 / 9.5 |
| 5 Ton | CU-HM55BAHU / CS-HM60BAHU | 54,000 | 56,000 | 52,000 | 16 / 9 |
The 5-ton system pairs the 5-ton CS-HM60BAHU air handler with the CU-HM55BAHU outdoor unit, Panasonic's largest cold-climate INTERIOS outdoor unit (rated 54,000 BTU/h cooling, 56,000 BTU/h heating). We size every home from a heat-loss calculation, not square footage alone. Ratings from Panasonic submittals (April 2025).
📦 What's Included
- ✓ Inverter outdoor unit (CU-HM series) with base pan and crankcase heaters
- ✓ Matched air handler (CS-HM series), multi-position, with constant-airflow ECM blower
- ✓ A2L refrigerant leak sensor, built into the air handler
- ✓ Panasonic wired controller
- ✓ Standard installation as listed below
Electric backup heat is not included. Optional Panasonic electric heat kits are available in 3, 5, 8, 10, 15 and 20 kW and are quoted separately.
❄️ Key Features
- ✓ Cold-climate heating to −30 °C, with up to 52,000 BTU/h at −15 °C (5-ton system)
- ✓ All electric: heating and cooling with no gas connection
- ✓ Inverter compressor that ramps output up and down to hold a steady temperature
- ✓ Multi-position air handler: upflow, downflow or horizontal, to suit basements, closets and attics
- ✓ Constant-airflow ECM blower, up to 0.80 in. w.c. external static pressure
- ✓ R454B refrigerant, lower global warming potential than R410A
- ✓ Optional electric backup heat kits: 3, 5, 8, 10, 15 or 20 kW (quoted separately)
📋 Technical Specifications
| Specification | 1.5 Ton | 2 Ton | 2.5 Ton | 3 Ton | 4 Ton | 5 Ton |
|---|---|---|---|---|---|---|
| Cooling, rated (min–max) BTU/h | 18,000 (5,600–22,000) | 24,000 (7,200–27,000) | 30,000 (12,800–39,000) | 36,000 (9,700–42,000) | 48,000 (15,600–51,000) | 54,000 (11,400–56,300) |
| Heating at 8 °C (min–max) BTU/h | 19,000 (6,000–22,000) | 23,000 (7,200–27,000) | 34,000 (10,300–38,500) | 37,000 (11,000–48,000) | 50,000 (15,500–57,300) | 56,000 (8,100–64,500) |
| Heating at −8 °C (17 °F) BTU/h | 15,000 | 20,000 | 23,800 | 31,800 | 37,000 | 45,000 |
| Max heating at −15 °C (5 °F) BTU/h · COP | 18,000 · 2 | 21,600 · 1.87 | 32,600 · 1.96 | 39,000 · 1.9 | 46,000 · 1.9 | 52,000 · 1.8 |
| SEER2 / EER2 | 19 / 12.5 | 18.3 / 11.7 | 16.8 / 11.7 | 17.4 / 11.7 | 16.5 / 10.5 | 16 / 10 |
| HSPF2 Region IV / V | 9.7 / 8 | 10 / 8 | 10 / 8.3 | 10.2 / 8.6 | 9.5 / 8 | 9 / 8 |
| Lowest heating temperature | −30 °C (−22 °F) | −30 °C (−22 °F) | −30 °C (−22 °F) | −30 °C (−22 °F) | −30 °C (−22 °F) | −30 °C (−22 °F) |
| Outdoor unit MCA / MOP | 16 A / 20 A | 19 A / 20 A | 29.5 A / 30 A | 29 A / 30 A | 38 A / 40 A | 40 A / 40 A |
| Max line length / height | 98 ft / 66 ft | 164 ft / 82 ft | 164 ft / 82 ft | 246 ft / 98 ft | 246 ft / 98 ft | 246 ft / 98 ft |
| Outdoor unit H × W × D (in), weight | 26½ × 35 × 13½ · 102 lb | 26½ × 35 × 13½ · 102 lb | 31⅞ × 37¼ × 16⅛ · 164 lb | 38⅜ × 38⅝ × 16⅜ · 204 lb | 38⅜ × 38⅝ × 16⅜ · 201 lb | 52½ × 37½ × 16⅜ · 243 lb |
| Air handler H × W × D (in), weight | 45 × 21 × 17½ · 106 lb | 45 × 21 × 17½ · 106 lb | 49 × 21 × 21 · 129 lb | 49 × 21 × 21 · 129 lb | 53 × 21 × 24½ · 163 lb | 53 × 21 × 24½ · 163 lb |
Source: Panasonic INTERIOS cold-climate ("Extreme Heat") air handler system submittals, April 2025, and Panasonic Canada product pages (HSPF2 Region V). Power supply 208/230 V, 1 ph. Dimensions rounded to the nearest ⅛ in.
💡 Electrical check: the 4- and 5-ton outdoor units need a 40 A breaker, plus a separate circuit for the air handler and any electric heat kit. We check your panel before quoting. Keeping your gas furnace? See the INTERIOS hybrid heat pump instead.
Documents: Panasonic INTERIOS Central Heat Pump Systems catalog (R454B) · Installation Manual – complete system, air handler, outdoor unit & heat kits · Wired Controller Installation Manual (R454B) · Wireless Controller Installation Manual (R454B) · Submittal – 1.5 Ton (CU-HM18BAHU) · Submittal – 2 Ton (CU-HM24BAHU) · Submittal – 2.5 Ton (CU-HM30BAHU) · Submittal – 3 Ton (CU-HM36BAHU) · Submittal – 4 Ton (CU-HM48BAHU) · Submittal – 5 Ton (CU-HM55BAHU)
🔧 What Standard Installation Includes
- ✓ Air handler set in place and connected to your existing ductwork
- ✓ Outdoor unit set in place
- ✓ Refrigerant line set, condensate drain and communication wiring up to 20 ft
- ✓ Electrical connection to the outdoor unit and air handler
- ✓ Vacuum, leak test, startup and commissioning
- ✓ Panasonic wired controller installed and set up
- ✓ 1-year labour warranty and warranty registration
Quoted as extras when needed: wall bracket or snow stand for the outdoor unit, line set or wiring beyond 20 ft (charged per foot), ductwork changes, electrical panel or circuit upgrades, and electric heat kits. We confirm the duct system, electrical capacity and equipment location before the job, and every extra is quoted in writing before work starts.
🛡️ Warranty
- ✓ Parts: 10 years (Panasonic)
- ✓ Labour: 1 year from Bison Air, included
- ✓ Optional 10-year labour warranty on the outdoor unit (condenser): ask us for details
💰 Rebates & Financing
The INTERIOS all-electric system is a cold-climate heat pump system, so it can qualify for Ontario's Home Renovation Savings heat pump rebate, subject to program eligibility. As a registered HRSP contractor, we help with the paperwork. See Heat Pump Rebates Toronto and the step-by-step rebate guide.
Prefer monthly payments? HVAC financing through Financeit: pre-qualify in seconds without affecting your credit score.
🏆 Why Buy Your Panasonic from Bison Air
- ✓ Authorized Panasonic dealer, listed on Panasonic's dealer locator
- ✓ TSSA Certified HVAC Contractor
- ✓ Fully Licensed & Insured HVAC Technicians
- ✓ Registered HRSP Heat Pump Rebate Contractor
- ✓ Standard Installation Included – No Hidden Fees
- ✓ Professional System Design & Equipment Selection
- ✓ Clean, Organized Installations
- ✓ 1-year labour warranty on every installation
- ✓ Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
