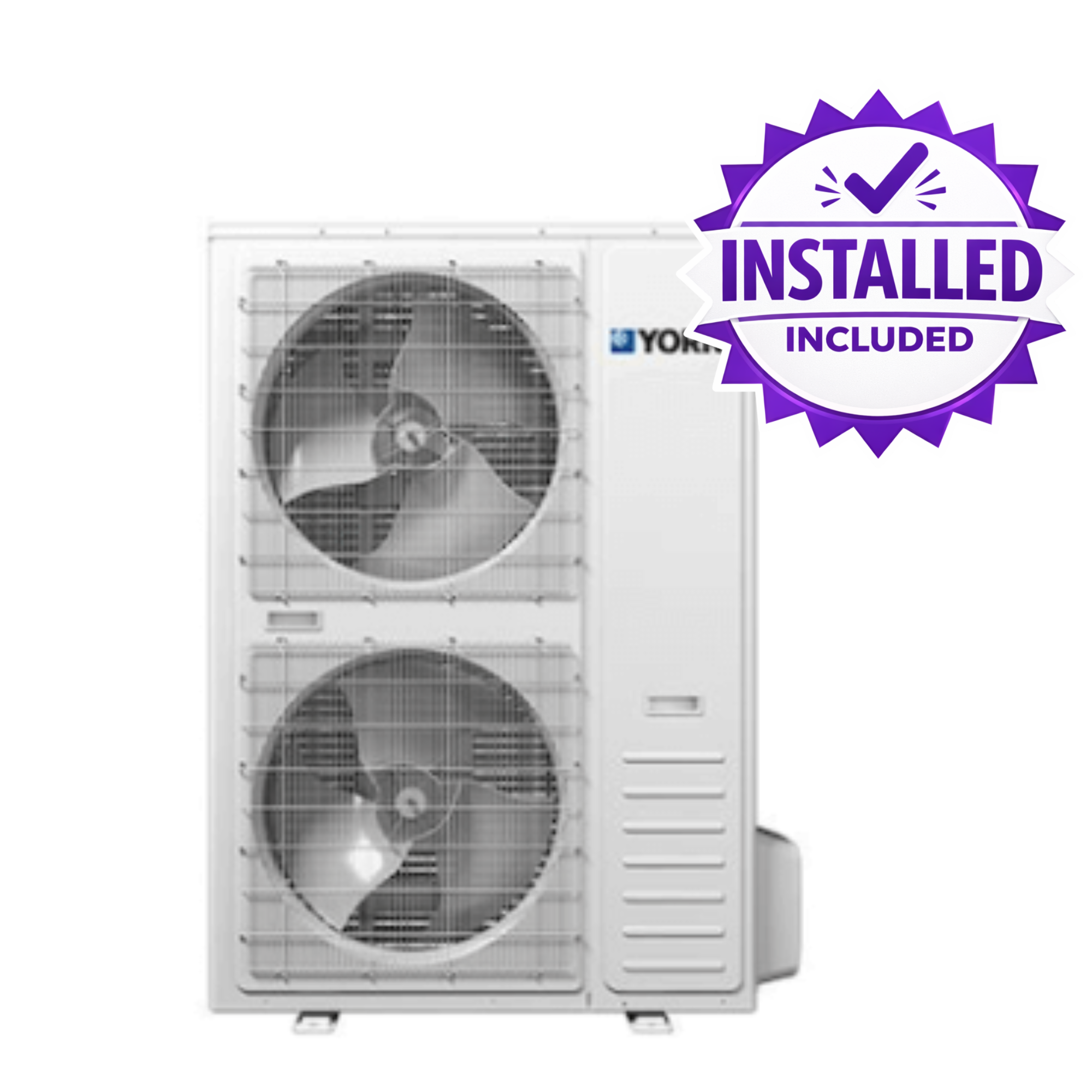

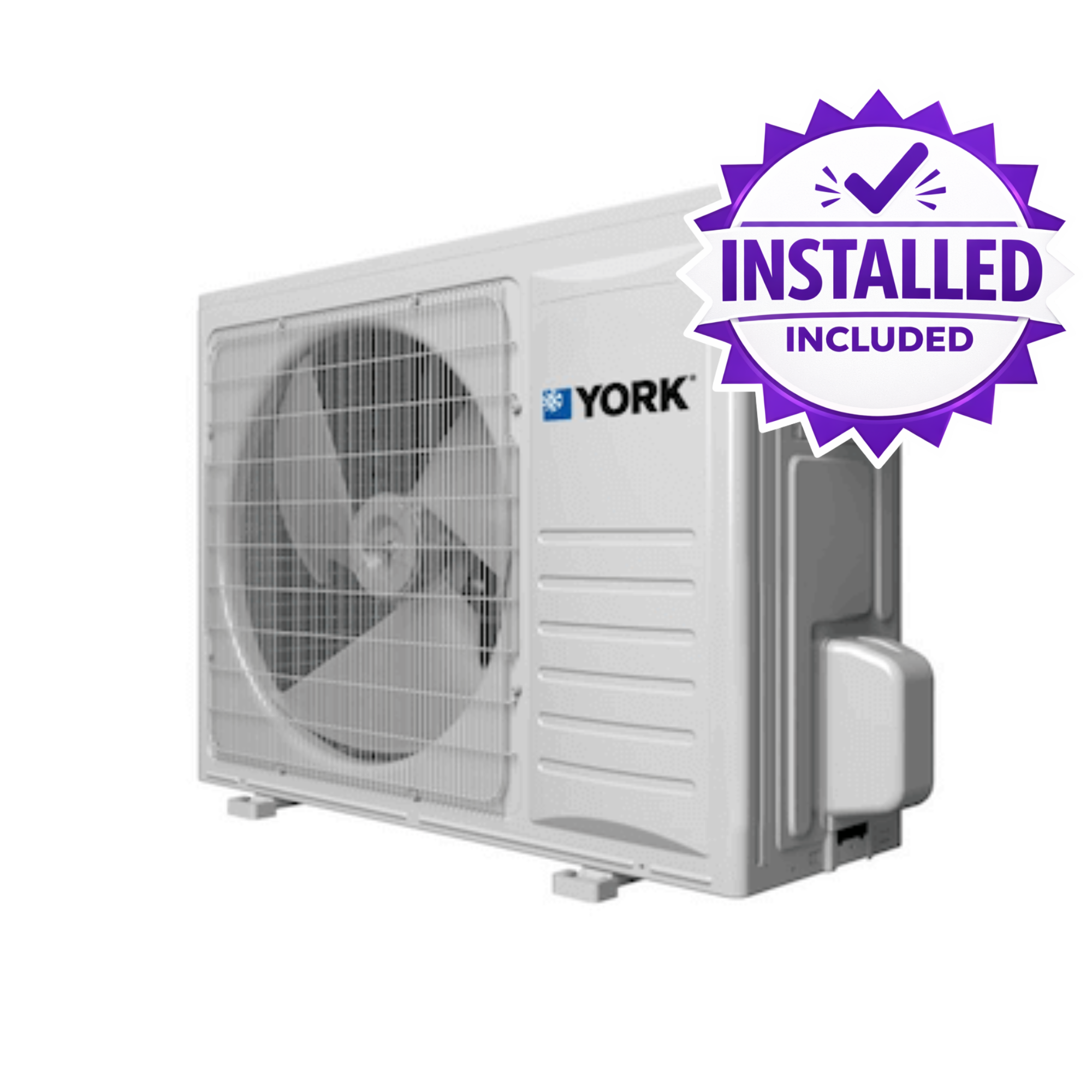

York – HMCG2 Horizontal Discharge Inverter Air Conditioner | R-410A | Toronto & GTA Installation Included
York – HMCG2 Horizontal Discharge Inverter Air Conditioner | R-410A | Toronto & GTA Installation Included
The York HMCG2 is a horizontal-discharge inverter air conditioner built for homes where space, noise, and clearance matter. With a footprint up to 40% smaller than a traditional vertical-discharge condenser, the HMCG2 fits zero-lot-line properties, narrow side yards, decks, and multi-family installations where standard units simply will not go. Each Bison Air installation includes a new properly matched evaporator coil to ensure correct airflow, efficiency, and long-term system reliability. Inverter-drive technology delivers smooth, variable-capacity operation between 35% and 100%, holding precise indoor temperatures while keeping energy bills and operating sound low. Available in 2, 3, 4, and 5 ton models with up to 18.5 SEER2 efficiency.
Why Choose the York HMCG2 Horizontal Discharge AC
- 40% smaller footprint than traditional vertical-discharge condensers — installs in tight side yards, under decks, and zero-lot-line properties
- Only 8 inches of clearance required from exterior walls (vs. up to 24 inches for vertical units)
- Inverter-drive technology ramps smoothly and modulates between 35–100% capacity for precise comfort and lower energy use
- Operating sound as low as 54 dBA — about as quiet as a typical dishwasher, 36% quieter than standard units
- Up to 18.5 SEER2 efficiency on the 5-ton model
- Long line set capability up to 246 ft — flexible placement for difficult installations
- Works with standard AC thermostats and conventional indoor equipment — no specialty controls required
- ETL safety certified and AHRI 210/240 performance certified
Who Is This Air Conditioner For
The HMCG2 is the right choice when a traditional vertical AC will not fit or will not work. Common scenarios include:
- Homes on narrow lots or zero-lot-line properties where setback clearances are tight
- Side-yard installations where only 8–12 inches of clearance is available
- Properties where the condenser must be installed under a deck or in a recessed alcove
- Multi-family, semi-detached, and townhouse installations
- Long line set runs where indoor and outdoor units are separated by significant distance (up to 246 ft)
- Homeowners who want quieter operation than a standard single-stage AC
What's Included With Your Installation
- York HMCG2 horizontal discharge outdoor condenser unit
- New properly matched evaporator coil
- Up to 25 feet of refrigerant line set
- Refrigerant connections and full system charging
- Condensate drain connection
- Electrical connection to existing disconnect
- System startup, commissioning, and performance verification
- Removal and disposal of your old AC condenser
- Permit and TSSA documentation where required
Technical Specifications
| Model | Tons | SEER2 | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|

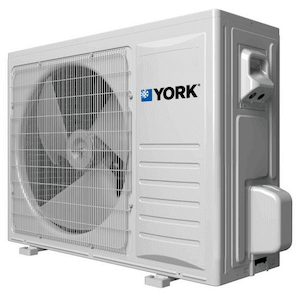

| HMCG22B241S | 2 | 18.0 | 26 3/8" | 33 7/8" | 12 1/4" | 99 lbs |
| HMCG22B361S | 3 | 17.0 | 29 1/2" | 35 3/8" | 13 3/8" | 117 lbs |
| HMCG22B481S | 4 | 16.5 | 54 5/8" | 37 3/8" | 13 3/8" | 206 lbs |

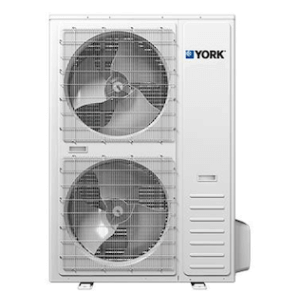

| HMCG22B601S | 5 | 18.5 | 54 5/8" | 37 3/8" | 13 3/8" | 207 lbs |
Key Features
- Inverter-driven variable-capacity compressor (35–100%)
- Innovative low-vibration fan design for quieter operation
- Compact horizontal discharge cabinet
- Compatible with York variable-speed and standard ECM indoor air handling equipment
- Works with conventional 24V AC thermostats
- Long line set capability up to 246 feet
- ETL safety certified
- AHRI 210/240 performance certified
- Good Housekeeping Seal of approval
Warranty
10-Year Parts Limited Warranty — when registered online within 90 days of installation
2-Year Parts Warranty on all genuine York parts
Optional 10-Year Labour Extension available for $700
Failure to register within 90 days defaults to the standard 5-year parts warranty. Bison Air handles all warranty registration on your behalf.
Why Choose Bison Air
- TSSA Certified HVAC Contractor
- Fully Licensed & Insured HVAC Technicians
- Standard Installation Included — No Hidden Fees
- Professional System Design & Equipment Selection
- Clean, Organized Installations
- Financing Available — Pre-qualify in Seconds
- Serving Toronto, York Region, Peel Region, Barrie & all GTA Communities
Financing Available
Apply for financing up to $100,000 through Financeit. No obligation, no commitment, pre-approval in seconds. Make your installation affordable with flexible monthly or biweekly payment plans. Learn more about HVAC financing →
⚠️ Important Notes: Standard installation includes new evaporator coil, up to 25 feet of refrigerant line set, and refrigerant connections. Final price may vary depending on furnace compatibility, electrical work, or site conditions.
