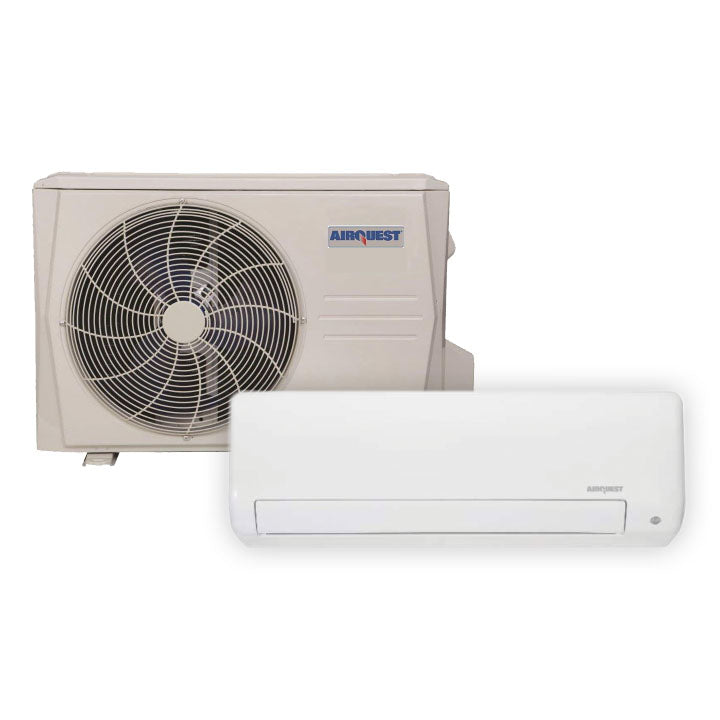

Airquest® QuietComfort® Single Zone Wall Mounted
***Installation included***
| ZONE | TON | Indoor Model | Outdoor Model | AHRI |
| Single | 6 | DLFSHCH06XAK | DLCSRBH06AAK | 208447693 |
| Single | 9 | DLFSHCH09XAK | DLCSRBH09AAK | 208447689 |
| Single | 12 | DLFSHCH12XAK | DLCSRBH12AAK | 208447686 |
| Single | 18 | DLFSHCH18XAK | DLCSRBH18AAK | 208447691 |
| Single | 24 | DLFSHCH24XAK | DLCSRBH24AAK | 208447687 |
| Single | 30 | DLFSHCH30XAK | DLCSRBH30AAK | 208447690 |
| Single | 36 | DLFSHCH36XAK | DLCSRBH36AAK |
- Capacity: 6k,9K, 12K, 15K, 18K, 24K, 36k Btus
- Zone: Single Zone
DLCSRB
QuietComfort® Heat Pump
The new heat pump is a powerhouse unit with up to 26.4 SEER2 and up to 15.8 EER2 efficiency. Features like Refrigerant Leakage Detection and Condenser High-Temperature Protection make this unit intelligent as well as efficient. Available in sizes from 9 to 36 with four different style indoor unit options, there is certainly a system to meet your cooling and heating needs.
Features & Benefits
- Inverter Compressor
- Up to 26.4 SEER2 cooling efficiency
- Up to 15.8 EER2 heating efficiency
- Available in 115V and 208/230V
- Sizes: 09 / 12 / 18 / 24 / 30 / 36
- 100% heating capacity at 5° F (-15° C) Sizes 12-18 (208/230V)
- Built-in basepan heater
- Auto-restart function
- Condenser high-temperature protection
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 54 dB(A)1
- Anti-corrosive fin coating
- 10-Year Parts Limited Warranty2
Specifications
- Up to 26.4 SEER2
- Up to 15.8 EER2
- Up to 12.4 HSPF2
- Outdoor sound: as low as 54 decibels1
- Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
- Heating operating range -22° ~ 86° F (-30° ~ 30° C) – sizes 9-24 (208/230V)
- Heating operating range -13° ~ 86° F (-25° ~ 30° C) – sizes 9, 12 (115V) & 30, 36 (208/230V)
- Piping length 82 ~ 164 ft. (25 ~ 50 m)
- Inverter Compressor
- 0.75 – 3.0 Ton
- 115V & 208/230V
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
Efficiencies
- Up to 26.4 SEER2
- Up to 15.8 EER2
- Up to 12.4 HSPF2
Documents:
: Airquest® Ductless Catalogue - Residential and Light Commercial
: Airquest QuietComfort DLFSHC High Wall Product Sheet
: AirQuest DLFSHB HIGH WALL Product Sheet
: Airquest® Indoor head DLFSHC Specifications
: Airquest Ductless Product Family Brochure
: Airquest DLCSRB Ductless Heat Pump Product Sheet
Warranty:
Parts: 10 Years
Labor: 1 Years
Extend labor warranty 10 years for $700.
The price includes complete installation and warranty and is based on standard installation. However, the price may vary depending on the location and any extra work required, such as high voltage wiring, duct modification, crawl space, or any other specific installation condition.
NOTE: Images are for illustration purposes only. Actual models may differ slightly.
This information is general. Contact us for proper heat pump size, talk to an advisor, or request an in-home consultation.
