Mitsubishi – 2-Zone 18,000 BTU Multi-Zone Cold Climate Hyper Heat Outdoor Unit | R-454B | Toronto & GTA Installation Included
Mitsubishi – 2-Zone 18,000 BTU Multi-Zone Cold Climate Hyper Heat Outdoor Unit | R-454B | Toronto & GTA Installation Included

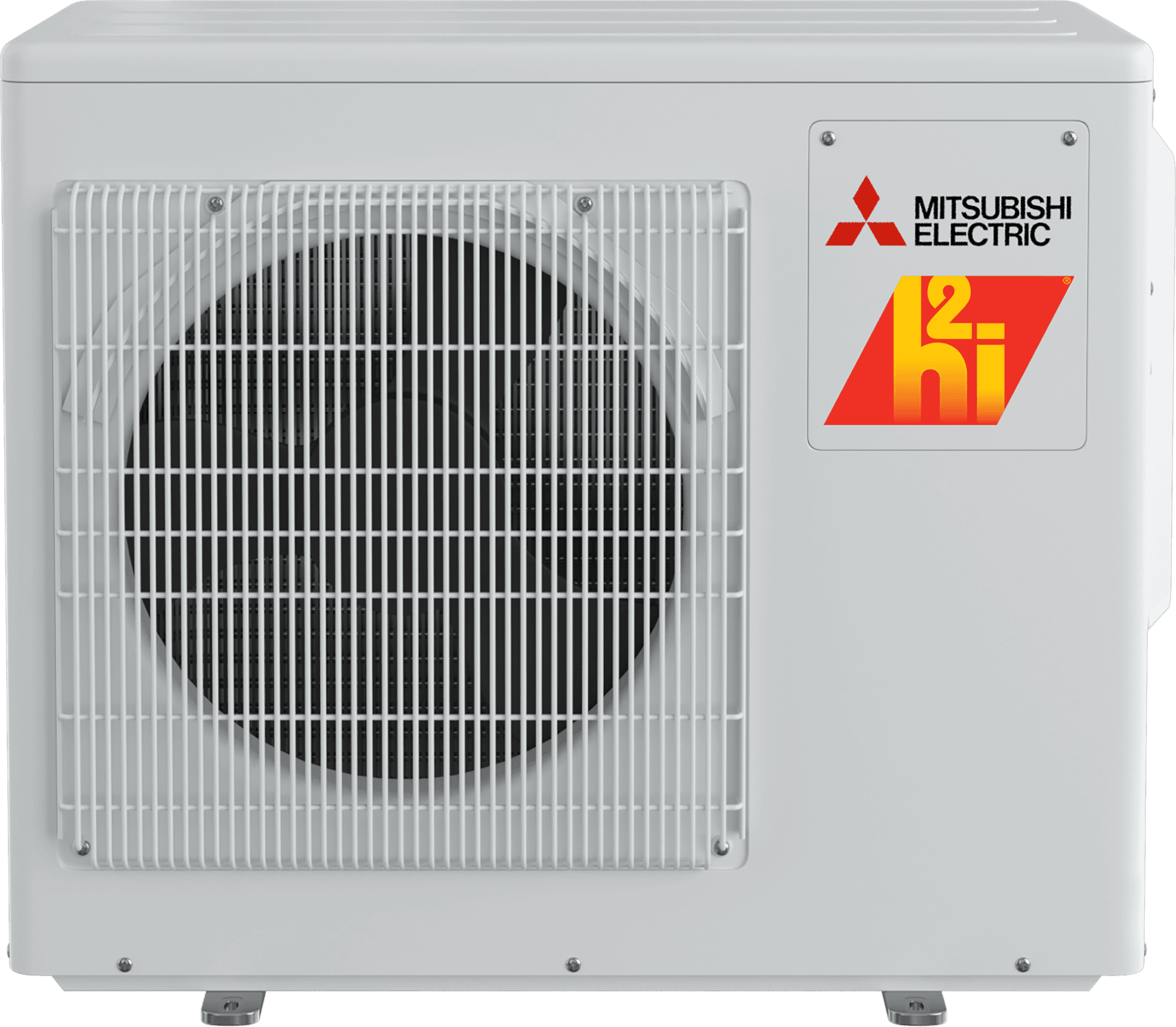

The Mitsubishi Zuba-Multi MXZ-2D20NLHZ-CA1 is a 2-zone Cold Climate Hyper Heat multi-zone inverter heat pump outdoor unit, built specifically for Canadian winters. Powered by Mitsubishi's H2i Hyper Heat Inverter technology, this unit delivers reliable heating performance in extreme cold — a significant upgrade over standard multi-zone heat pumps. Connects up to 2 indoor units simultaneously with a total cooling capacity of 18,000 BTU and 22,000 BTU of heating. Using next-generation R-454B low-GWP refrigerant. This page is for the outdoor unit and installation only. Indoor units are sold separately. Price includes standard professional installation with up to 20 ft of lineset per indoor head.
Hyper Heat vs Standard Multi-Zone — What's the Difference?
Both are Mitsubishi multi-zone R-454B heat pumps. Here is exactly how they differ:
| Feature | Hyper Heat (This Page) | Standard MXZ |
|---|---|---|
| Technology | H2i Hyper Heat Inverter | Standard Inverter |
| Cold Climate Performance | Maintains strong heating output at extreme low temperatures | Reduced output as temperature drops |
| HSPF2 (Heating Efficiency) | 8.6 | 8.4 |
| Heating Capacity (BTU) | 22,000 | 22,000 |
| Best For | Homes requiring reliable heating in extreme Canadian winters | Milder climates or supplemental heating applications |
| Price | Higher — reflects premium cold climate technology | Lower entry price point |
Bottom line: If reliable heating performance in extreme cold is a priority — and in the GTA and surrounding areas it should be — the Hyper Heat version is the right choice. Contact Bison Air if you are unsure which system fits your situation.
⚠️ Important — How Multi-Zone Systems Work
A complete multi-zone system requires two separate purchases:
- This page — Outdoor unit (MXZ-2D20NLHZ-CA1) + installation
- Indoor unit pages — One compatible indoor unit per zone, each sold and installed separately
This outdoor unit supports up to 2 indoor units. A minimum of 2 indoor units is required. Each indoor unit page includes its own installation with up to 20 ft of lineset per head. Contact Bison Air to confirm your zone configuration before purchasing.
What's Included — Outdoor Unit & Installation
- Mitsubishi MXZ-2D20NLHZ-CA1 Hyper Heat multi-zone inverter heat pump outdoor unit
- Standard professional installation by TSSA Certified technicians
- Up to 20 ft of lineset per indoor head included — longer runs quoted separately
- System startup, testing and commissioning
- Mitsubishi product registration (required for warranty)
Key Features
- H2i Hyper Heat Inverter Technology — Mitsubishi's advanced cold climate compressor maintains strong heating output even as outdoor temperatures drop significantly below freezing
- 2-Zone Operation — Connect up to 2 indoor units for independent temperature control in each zone
- R-454B Refrigerant — Low global warming potential, next-generation refrigerant meeting future environmental standards
- 19.3 SEER2 Cooling Efficiency — Energy-efficient inverter operation across all connected zones
- 8.6 HSPF2 Heating Efficiency — Higher heating efficiency than the standard MXZ lineup
- Inverter-Driven Compressor — Continuously modulates output based on combined demand of all connected indoor units
- Independent Zone Control — Each indoor unit operates independently with its own temperature setting, fan speed, and mode
- Wide Indoor Unit Compatibility — Compatible with multiple indoor unit types including wall mount, floor standing, cassette, ducted, and multi-position air handler
- Blue Fin Coating — Anti-corrosion treatment on outdoor heat exchanger fins
- 208-230V / 1-Phase / 60Hz — Standard North American electrical supply
Technical Specifications
| Specification | MXZ-2D20NLHZ-CA1 |
|---|---|
| Outdoor Unit Model | MXZ-2D20NLHZ-CA1 |
| Total Cooling Capacity (BTU/h) | 18,000 |
| Total Heating Capacity (BTU/h) | 22,000 |
| Maximum Number of Indoor Units | 2 |
| SEER2 | 19.3 |
| EER2 | 13.5 |
| HSPF2 | 8.6 |
| Compressor Technology | H2i Hyper Heat Inverter |
| Refrigerant | R-454B |
| Electrical | 208-230V / 1-Phase / 60Hz |
| Line Set Size (per head) | (1/4" × 3/8") × 2 |
Compatible Indoor Units
This outdoor unit is compatible with the following Mitsubishi M-Series indoor unit types. Each indoor unit is sold and installed separately.
| Indoor Unit Type | Models | BTU Range | Best For |
|---|---|---|---|
| Wall Mount — GX Series | MSZ-GX06/09/12/15/18/24NL-CA1 | 6K–22.4K BTU | Bedrooms, living areas, offices |
| Wall Mount — FX Cold Climate Series | MSZ-FX06/09/12/15/18NL-CA1 | 6K–17.2K BTU | Rooms requiring maximum cold climate performance |
| 1-Way Ceiling Cassette — MLZ Series | MLZ-KX06/09/12/18NL-CA1 | 6K–18K BTU | Rooms with drop ceilings or joist space (fits 16" joist) |
| Floor Standing — MFZ Series | MFZ-KX09/12/15/18NL-CA1 | 9K–17K BTU | Rooms where wall mounting is not possible |
| Ducted Low Static — SEZ Series | SEZ-AD09/12/15/18NL-U1 | 9K–17.2K BTU | Concealed ceiling installation with minimal ductwork |
| Ducted Medium Static — PEAD Series | PEAD-AA09/12/15/18/24/30/36NL-U1 | 9K–36K BTU | Larger ducted zones requiring higher static pressure |
| 4-Way Ceiling Cassette — SLZ Series | SLZ-AF09/12/15/18NL-U1 | 8.4K–17.7K BTU | Flush ceiling installation with 360° airflow distribution |
| Multi-Position Air Handler — SVZ Series | SVZ-AP12/18/24/30/36NL-U1 | 12K–36K BTU | Whole-home ducted air handler replacement (max 1 per system) |
| Cased Coil Zuba-Hybrid — PAA Series | PAA-AA/BA/CA 18/24/30/36NL-U1 | 18K–36K BTU | Hybrid heat pump + furnace installations |
Not sure which indoor units to choose? Contact Bison Air — we will design your complete system based on your home layout, insulation, and heating and cooling requirements.
Professional Installation — What's Included
- Site assessment and system design for optimal outdoor and indoor unit placement
- Mounting and connection of outdoor unit
- Up to 20 ft of lineset per indoor head included — additional length quoted separately
- Electrical connection (dedicated circuit required — panel work quoted separately if needed)
- Vacuum, leak test, and full system commissioning
- Walkthrough of system operation with homeowner
- Mitsubishi product registration for warranty
Note: The outdoor unit must be elevated a minimum of 18" (457 mm) off grade or roof surface, or as required by local snowfall conditions, to ensure proper wintertime operation during defrost cycles.
