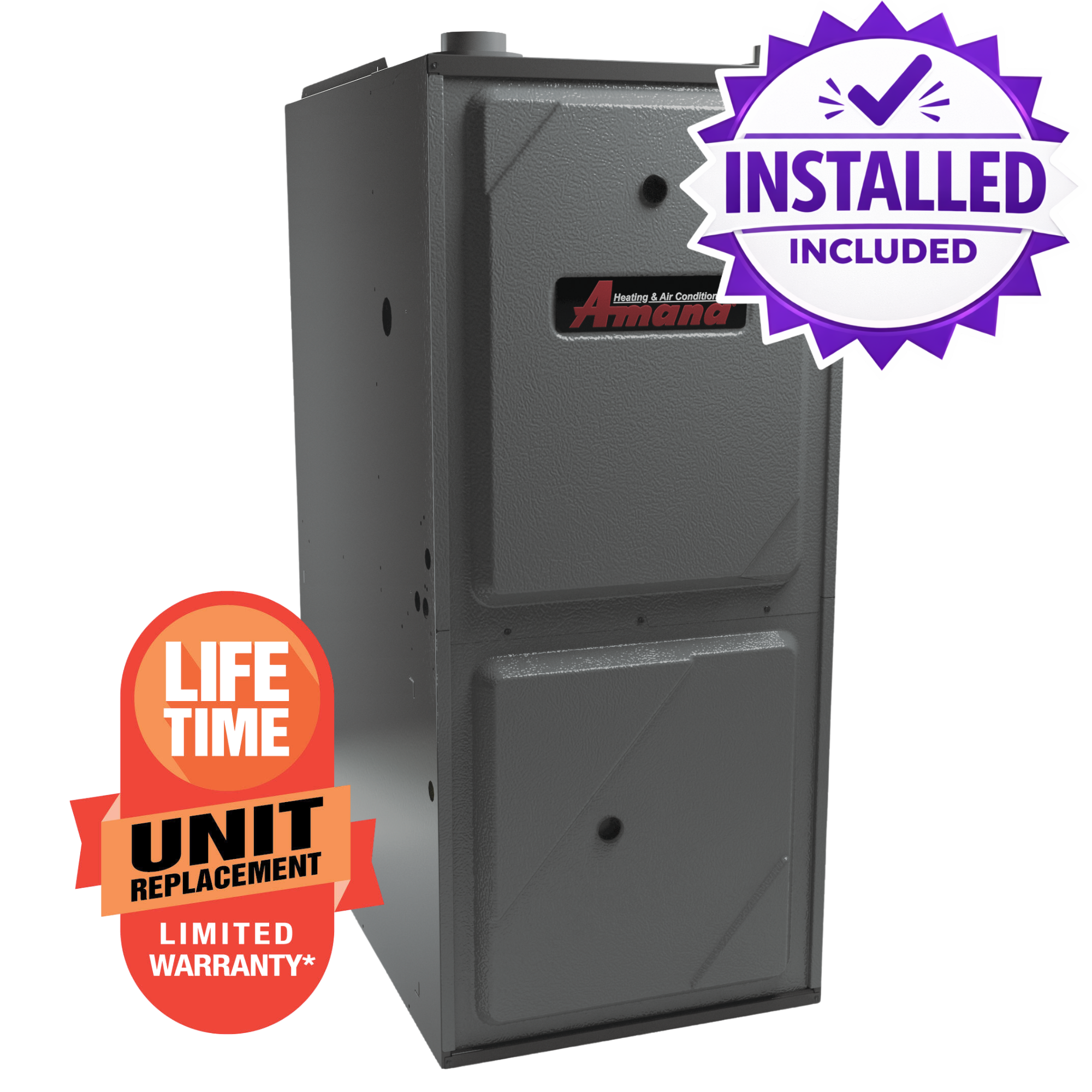

Amana – Two-Stage 96% AFUE Gas Furnace | Lifetime Unit Replacement Warranty | R-32 & R-410A Compatible | Toronto & GTA Installation Included
The Amana AR9T is a two-stage, multi-speed ECM gas furnace rated at up to 96% AFUE — delivering reliable, efficient heat from 30,000 to 120,000 BTU/h input. Built with a heavy-duty stainless-steel tubular heat exchanger and a quiet two-stage gas valve, it adapts its output to match your home's actual heating demand, keeping comfort high and energy costs low. Designed for upflow and horizontal installation, and certified for direct vent (2-pipe) operation. Standard installation included across Toronto & GTA.
Available Sizes — Select Above
Suitable for homes up to ~5,000 sq ft depending on insulation, ceiling height, and duct system. All sizes listed by heating input BTU:
- 30,000 BTU input — Up to 1,000 sq ft
- 40,000 BTU input — Up to 1,500 sq ft
- 60,000 BTU input — Up to 2,000 sq ft
- 80,000 BTU input (3-ton blower) — Up to 2,500 sq ft
- 80,000 BTU input (4-ton blower) — Up to 2,500 sq ft, supports up to 4-ton A/C or heat pump
- 100,000 BTU input (4-ton blower) — Up to 3,500 sq ft
- 100,000 BTU input (5-ton blower) — Up to 3,500 sq ft, supports up to 5-ton A/C or heat pump
- 120,000 BTU input — Up to 5,000 sq ft
✓ Compatible with central air conditioner or heat pump | ✓ Field-convertible to propane (LP kit required)
Not sure what size you need? Contact us — we size every system before installation.
Why Two-Stage Heating?
Single-Stage Furnace
- Runs at 100% all the time
- On/off cycling = temperature swings
- Louder operation
- Higher energy use per cycle
AR9T Two-Stage ✓
- Runs at ~65% on mild days, 100% on cold days
- Longer, quieter cycles = more even heat
- Lower operating costs most of the year
- Better humidity control in summer (with A/C)
What's Included — Standard Installation
- Amana AR9T gas furnace (model per variant selected)
- Professional removal and disposal of existing furnace
- Gas line connection to existing supply
- Flue venting installation (direct vent 2-pipe or single-pipe)
- Electrical connection to existing circuit
- Duct connection to existing duct system
- Thermostat wiring connection (thermostat not included)
- System startup, combustion test, and safety check
- TSSA inspection coordination
- Cleanup and haul-away
Additional work such as new gas line runs, electrical panel upgrades, or duct modifications are quoted separately.
Key Features
- 96% AFUE efficiency — 96 cents of every dollar in gas becomes heat
- 🏆 Lifetime Unit Replacement Limited Warranty — one of the strongest warranties in the industry
- 🏆 Lifetime Heat Exchanger Limited Warranty
- 10-Year Parts Limited Warranty (registration required within 60 days)
- Two-stage gas valve — low fire for mild weather, high fire for cold snaps
- Multi-speed ECM blower motor — energy-efficient, runs quietly at low speeds
- Heavy-duty stainless-steel tubular primary heat exchanger
- Stainless-steel secondary heat exchanger
- R-32 / R-454B / R-410A compatible — works with old and new refrigerant systems via DIP switch
- Silicon Nitride igniter — more durable than standard hot surface igniters
- Self-diagnostic control board with LED fault code history
- Cabinet air leakage ≤ 2% — tight construction, no efficiency losses
- Multi-position installation — upflow or horizontal left/right
- Direct vent certified — 2-pipe or 1-pipe venting
- Provisions for humidifier and electronic air cleaner
- Field-convertible to propane (LP conversion kit required, sold separately)
- AHRI Certified, ETL Listed, Energy Star
Technical Specifications
| Model | Input BTU | Output BTU (Hi) | Output BTU (Lo) | AFUE | A/C Tons | Max OCP | Burners | W × D × H |
|---|---|---|---|---|---|---|---|---|
| AR9T960303AN | 30,000 | 28,800 | 20,160 | 96% | 2 | 15A | 2 | 14" × 28¾" × 34½" |
| AR9T960403AN | 40,000 | 38,400 | 26,880 | 96% | 3 | 15A | 2 | 14" × 28¾" × 34½" |
| AR9T960603BN | 60,000 | 57,600 | 40,320 | 96% | 3 | 15A | 3 | 17½" × 28¾" × 34½" |
| AR9T960803BN | 80,000 | 76,800 | 53,760 | 96% | 3 | 15A | 4 | 17½" × 28¾" × 34½" |
| AR9T960804CN | 80,000 | 76,800 | 53,760 | 96% | 4 | 20A | 4 | 21" × 28¾" × 34½" |
| AR9T961004CN | 100,000 | 96,000 | 67,200 | 96% | 4 | 25A | 5 | 21" × 28¾" × 34½" |
| AR9T961005CN | 100,000 | 96,000 | 67,200 | 96% | 5 | 25A | 5 | 21" × 28¾" × 34½" |
| AR9T961205DN | 120,000 | 115,200 | 80,640 | 96% | 5 | 25A | 6 | 24½" × 28¾" × 34½" |
All prices include standard installation. HST additional. Verify prices independently before purchase.
