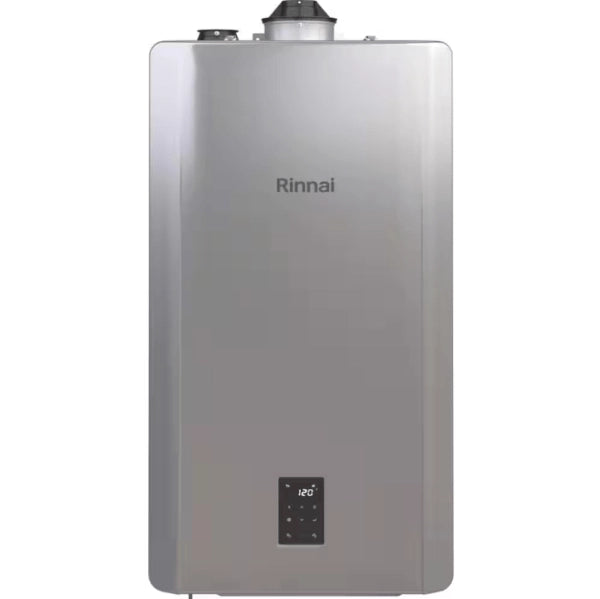

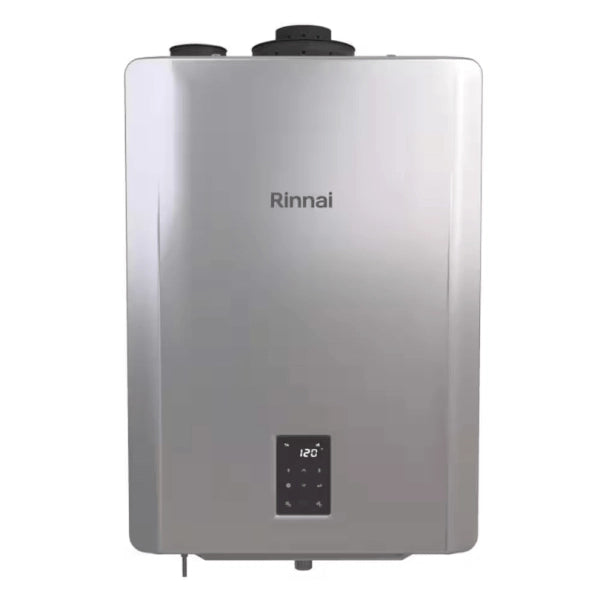

Rinnai I-Series Plus Condensing Heating Boiler | GTA Installation Included
Rinnai I-Series Plus Condensing Boiler – Installation Included
The Rinnai I-Series Plus is a high-efficiency condensing boiler designed for hydronic heating systems such as radiant floor and radiator heating. Professionally installed by Bison Air across Toronto and York Region.
With up to 96% AFUE efficiency and precise temperature modulation, the I-Series Plus delivers quiet, stable, and energy-efficient heating performance for modern Ontario homes.
High-Efficiency Hydronic Heating
-
Heating-only condensing boiler
-
Up to 96% AFUE efficiency
-
Stainless steel heat exchanger
-
Quiet wall-mounted design
-
Ideal for radiant or baseboard systems
Stable Comfort & Modulation
-
Advanced temperature control
-
Reduced cycling
-
Consistent room comfort
-
Low operating noise
-
Multi-zone compatible
Flexible Installation Advantages
-
Compact wall-mounted unit
-
PVC vent compatible
-
Natural gas or propane
-
Lightweight design
-
Retrofit friendly
Included Professional Installation – GTA
Installation by licensed hydronic technicians serving:
Toronto • Markham • Richmond Hill • Aurora • Newmarket • Vaughan • GTA
Standard installation includes:
-
Boiler supply & mounting
-
Heating system connection
-
Gas & vent connection
-
Condensate drain
-
Control wiring
-
System setup & testing
Warranty
-
Heat exchanger: manufacturer warranty
-
Parts: 5 years
-
Labour: 1 year
Optional 10-year labour warranty available (+$700)
Choosing the Right Boiler Size
Sizing depends on:
-
Home heat loss
-
Square footage
-
Insulation level
-
Radiation type
-
Climate zone
General guideline:
-
Condo / ≤1,200 sq ft → 060
-
1,200–2,000 sq ft → 090
-
2,000–3,000 sq ft → 120
-
3,000–4,000 sq ft → 150
-
4,000–5,000 sq ft → 175
-
5,000+ sq ft → 199
Final sizing confirmed during consultation.
Important Notes
This is a heating-only boiler and requires an indirect water heater if domestic hot water is needed.
|
Specifications |
Solo Models |
||||||
|
IP060S |
IP090S |
IP120S |
IP150S |
IP175S |
IP199S |
||
|
Heating Input Max CH (Btu) |
60,000 |
90,000 |
120,000 |
150,000 |
175,000 |
199,000 |
|
|
Heating Input Min CH (Btu) |
15,000 |
||||||
|
Heating Input Max DHW (Btu) |
N/A |
||||||
|
Efficiency (% AFUE) |
95.5 |
96.0 |
96.0 |
96.0 |
95.0 |
95.0 |
|
|
Turndown Ratio (TDR) |
N/A |
||||||
|
Turndown Ratio (TDR) CH |
4:1 |
6:1 |
8:1 |
10:1 |
10:1 |
10:1 |
|
|
DHW Max Flow Rate (GPM) |
N/A |
||||||
|
Flow Rate at 70°F (39°C) Rise |
N/A |
||||||
|
Fuel Type |
NG/LP |
NG/LP |
NG/LP |
NG/LP |
NG/LP |
NG/LP |
|
|
Heat Exchanger Surface Area (sqft) |
9.3 |
10.9 |
15.6 |
||||
|
Temperature Setting Range (CH) |
86°F - 180°F (30°C - 82°C) |
||||||
|
Water Content (Gal) |
0.75 |
0.88 |
2.4 |
||||
|
Max Water Operating Pressure (CH) |
30 PSI (207 kPa) |
||||||
|
Gas Supply Pressure (Natural Gas) |
3.5 - 10.5 in W.C. (0.87 - 2.61 kPa) |
||||||
|
Gas Supply Pressure (Propane) |
8.0 - 13.5 in W.C. (1.99 - 3.36 kPa) |
||||||
|
Electrical Data |
Normal CH) |
36 W |
53 W |
50 W |
50 W |
90 W |
98 W |
|
Standby |
8 W |
8 W |
|||||
|
Max Current |
14 Amps |
14 Amps |
|||||
|
Sound Level dB(A) |
40 |
40 |
40 |
42 |
40 |
42 |
|
|
Weight |
Unit |
62.6 lb (28.4 kg) |
64.8 lb (29.4 kg) |
112.4 lb (51 kg) |
|||
|
Shipping |
69.1 lb (34.1 kg) |
71.3 lb (32.4 kg) |
127.6 lb (58 kg) |
||||
|
Dimensions W x H x D in. (mm) |
Unit |
18.5 x 25.75 x 11.5 (470 x 654 x 291) |
19.45 x 34.88 x 15.48 (494 x 886 x 393) |
||||
Documents:
: Rinnai I-SERIES Plus heat-only and combination model brochure
Standard Installation Included for Boilers
When you purchase a boiler from us, the price includes standard installation to ensure your new heating system is properly installed and ready to provide efficient and reliable performance. Here's what "standard installation" typically covers:
-
Delivery of the Boiler
Your new boiler will be safely delivered to your home. -
Removal of Existing Equipment
We will disconnect and remove your old boiler if necessary. -
Connecting the New Boiler
- Installation of the new boiler in the same location as the previous one.
- Connection to existing plumbing, gas, and electrical lines.
- Integration with the existing heating system, including radiators or baseboard heaters.
-
Standard Venting
Includes installation of a flue system for proper ventilation, adhering to safety codes. -
System Testing
Comprehensive testing of the boiler to ensure it operates safely and efficiently. -
Basic Cleanup
Disposal of the old boiler and materials, leaving your space tidy.
Additional Costs May Apply for Non-Standard Installation
Some situations may require work beyond standard installation. Examples include:
- Moving the boiler to a different location.
- Upgrading electrical or plumbing systems.
- Installing a complex or high-efficiency venting system.
- Adding a condensate pump or other accessories.
Please note that the boiler cannot be sold without installation, as it requires a certified technician to carry out the installation for safety reasons.
Therefore, we kindly request that you contact us before making a purchase. Our technicians will visit your home to provide you with a quote for the installation.
This information is general. Contact us for proper Boiler size, talk to an advisor, or request an in-home consultation.
