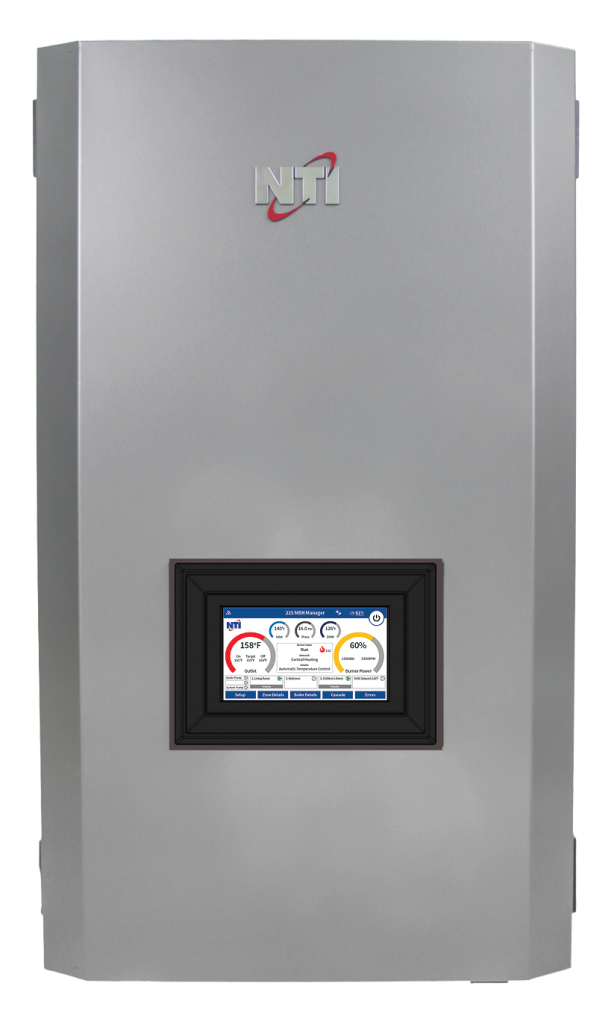

NTI TFTN Condensing Boiler-TFTN Series
*** Standard Installation Included ***
TFTN Series
NTI is pleased to offer the next generation of our flagship boiler line. The new TFTN offers onboard WiFi and a new touchscreen that brings more functionality than previously available. Our new control is designed to be easy and intuitive, yet powerful enough to offer all the features and functionality required by today’s installing contractor. Built on the same platform as our market-leading TFT line, this next generation brings the same high-level of quality you’ve come to expect, with the added benefits of our redesigned control. Our next generation TFTN is currently available in sizes 85, 110, 150 and 199 MBH. Larger sizes from 285 to 850 MBH are available fo commercial applications.
Specifications
Wall Mount
| TFTN085 | TFTN110 | TFTN150 | TFTN199 | TFTN285 | TFTN340 | TFTN399 | |
|---|---|---|---|---|---|---|---|
| Input Heating MBH | 8.5-85 | 11-110 | 15-150 | 19.9-199 | 28.5-285 | 39.9-340 | 39.9-399 |
| AFUE/Thermal Efficiency | 96% | 95% | 95% | 95% | 95% | 95.4% | 95.4% |
| Heating Capacity (MBH) | 79 | 101 | 138 | 184 | 263 | 324 | 380 |
| Net AHRI Rating (MBH) | 69 | 88 | 120 | 160 | 229 | 282 | 330 |
| Weight (lbs.) With Water | 107 | 107 | 122 | 140 | 180 | 250 | 250 |
| Water Content (gallons) | 1.4 | 1.4 | 2 | 2.8 | 4.9 | 7.1 | 6.4 |
| Water Connections (heating) | 1 1/4" NPT-M | 1 1/2" NPT-M | 1 1/2" NPT-M | ||||
| Gas Connection | 3/4" NPT-M | ||||||
| 2" Inlet & Exhaust Distance | 100' Max | N/A | N/A | N/A | |||
| 3" Inlet & Exhaust Distance | 150' Max | N/A | N/A | ||||
| 4" Inlet & Exhaust Distance | N/A | N/A | N/A | N/A | N/A | 150' Max | 150' Max |
Floor Mount
| TFTN500 | TFTN600 | TFTN725 | TFTN850 |
|
|---|---|---|---|---|
| Input Heating MBH | 50-500 | 60-600 | 72.5-725 | 85-850 |
| Thermal Efficiency | 98% | 97.8% | 97.7% | 97.6% |
| Heating Capacity (MBH) | 489 | 585 | 705 | 825 |
| Net AHRI Rating (MBH) | 425 | 509 | 613 | 717 |
| Weight (lbs.) With Water | 575 | 575 | 685 | 690 |
| Water Content (gallons) | 12.5 | 12.5 | 17.5 | 16.5 |
| Water Connections (heating) | 2" NPT-M | 2" NPT-M | 2.5" NPT-M | 2.5" NPT-M |
| Gas Connection | 1" NPT-M | 1" NPT-M | 1-1/4" NPT-M | 1-1/4" NPT-M |
| 4" Inlet & Exhaust Distance | 150' Max | 150' Max | N/A | N/A |
| 6" Inlet & Exhaust Distance | N/A | N/A | 150' Max | 150' Max |
Documents:
:
Parts: 5 Years
Labor: 1 Years
Standard Installation Included for Boilers
When you purchase a boiler from us, the price includes standard installation to ensure your new heating system is properly installed and ready to provide efficient and reliable performance. Here's what "standard installation" typically covers:
-
Delivery of the Boiler
Your new boiler will be safely delivered to your home. -
Removal of Existing Equipment
We will disconnect and remove your old boiler if necessary. -
Connecting the New Boiler
- Installation of the new boiler in the same location as the previous one.
- Connection to existing plumbing, gas, and electrical lines.
- Integration with the existing heating system, including radiators or baseboard heaters.
-
Standard Venting
Includes installation of a flue system for proper ventilation, adhering to safety codes. -
System Testing
Comprehensive testing of the boiler to ensure it operates safely and efficiently. -
Basic Cleanup
Disposal of the old boiler and materials, leaving your space tidy.
Additional Costs May Apply for Non-Standard Installation
Some situations may require work beyond standard installation. Examples include:
- Moving the boiler to a different location.
- Upgrading electrical or plumbing systems.
- Installing a complex or high-efficiency venting system.
- Adding a condensate pump or other accessories.
Please note that the boiler cannot be sold without installation, as it requires a certified technician to carry out the installation for safety reasons.
Therefore, we kindly request that you contact us before making a purchase. Our technicians will visit your home to provide you with a quote for the installation.
This information is general. Contact us for proper Boiler size, talk to an advisor, or request an in-home consultation.
or
Click here to fill out the form for free consultation.
You have a Budget. We have a payment plan to match it.
Apply for financing up to $100,000. Find out if you pre-qualify in second. No obligation, no commitment and make your large purchase more affordable by applying for an easy monthly or biweekly payment plan whit Financeit. Get pre-approved in seconds!
