AIRQUEST 36HH 35000 BTU Multi Zone Ductless Heat Pump 4 Zone

AIRQUEST by Carrier

System Information :

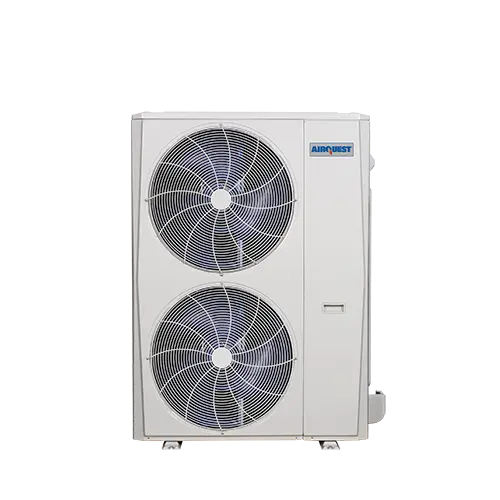

- Condenser Model Number: DLCMHBH36DAK
- Indoor Model Number: None
- AHRI Number: 207643192
- Heating Capacity (BTU/h): 36,000
- Cooling Capacity (BTU/h): 36,500
- HSPF: 11
- SEER: 21.8

Inverter Technology

The inverter driven compressor is designed to run at various input power
frequencies (Hz) which controls the compressor’s motor speed.
Even Temperature – The control package, including the inverter,
monitors the outdoor and indoor temperatures as they relate to the
selected indoor set point and adjusts the compressor speed to match the
load and keep the system operating continuously rather than cycling and
creating temperature swings. This translates to higher comfort levels for
the occupants.
Rapid Pull Down/Warm-Up – Comfort is increased by the inverter
system’s ability to ramp up the compressor speed enabling the system to
reach the user selected room temperature set point quicker.
Humidity Control – Running the system for longer periods and
continuously changing the compressor speed enhances the humidity
control.
Individual Room Comfort
Maximum comfort is provided because each space can be controlled
individually based on the usage pattern.
Low Sound Levels
When noise is a concern, ductless systems are the answer. The indoor
units are whisper quiet. There are no compressors indoors, either in the
conditioned space or directly over it, and there is none of the noise
usually generated by air being forced through the ductwork.
When sound ordinances and proximity to neighbors demand quiet
operation, the DLCMRBH/ DLCMHBH unit is the right choice. With
the inverter technology, these units run at lower speeds, most of the time
resulting in reduced sound levels.
Inverter Technology – Enhanced Economical Operation
Ductless systems are inherently economical to operate. Individual rooms
are heated or cooled only when required, and since the air is delivered
directly to the space, there is no need to use additional energy to move the
air in the ductwork. This economical operation is enhanced further when
the inverter system output matches the load resulting in a more efficient
system.
Easy-To-Use Controls
The multi-zone systems have microprocessor-based controls to provide
the ultimate in comfort and efficiency. The user friendly wired and
wireless remote controls provide an interface between the user and the
unit.
Secure Operation
If security is an issue, outdoor and indoor units are connected only by
refrigerant piping and wiring to prevent intruders from crawling through
ductwork or wall openings. Since the DLCMRBH/ DLCMHBH can be
installed close to an outside wall, coils are protected from vandals and
severe weather

Fast Installation
This compact ductless system is simple to install. A mounting bracket is
included with the indoor units and only wires and piping need to run
between the indoor and outdoor units. These units are fast and easy to
install ensuring minimal disruption to customers in homes or the
workplace. This makes DLCMRBH/ DLCMHBH systems the
equipment of choice for retrofit applications.
Simple Servicing and Maintenance
Removing the top panel of the outdoor unit provides immediate access to
the control compartment, providing the service technician access to the
diagnostic LEDs to facilitate the troubleshooting process. In addition, the
draw-thru design of the outdoor unit means that dirt accumulates on the
outside surface of the coil. Coils can be cleaned quickly from the inside
using a pressure hose and detergent.
On the indoor units, service and maintenance expense is reduced due to
the permanent easy to clean filters. Also, error codes appear on the front
panel to alert the user to certain system malfunctions.
Built-in Reliability
Ductless system indoor and outdoor units are designed to provide years of
trouble-free operation. Both the indoor and outdoor units are well
protected. Whenever the microprocessor detects abnormal conditions, the
unit stops and an error code appears.
Inverter systems provide additional reliability due to the soft start. This
refers to the ability of the inverter to start the compressor motor using
reduced voltage and reduced current. This feature is beneficial from an
electrical standpoint (eliminates current spikes) as well as an overall
reliability standpoint due to reduced stress on all associated system
components.
Agency Listings
All systems are listed with AHRI (Air conditioning, Heating, and
Refrigeration Institute) and are UL/ETL certified per UL 60335-2-40
standard.

STANDARD FEATURES AND ACCESSORIES

Ease Of Installation
Low Voltage Controls S
Comfort Features
Microprocessor Control S
Auto Restart Function S
Auto Changeover S
Low Ambient Cooling S
Low Ambient Heating S
Energy Saving Features
Inverter Driven Compressor S
46° F Heating Mode (Heating Setback) S
Safety And Reliability S
3 Minute Time Delay For Compressor S
High Compressor Discharge Temperature S
Low Voltage Protection S
Compressor Overload Protection S
Compressor Over Current Protection S
IPM Module Protection S
Aluminum Golden Hydrophilic pre-coated fins S
Ease Of Service And Maintenance
Diagnostics S
Error Messages Displayed On Front Panel S
Application Flexibility
Crankcase Heater S
Base pan Heater
